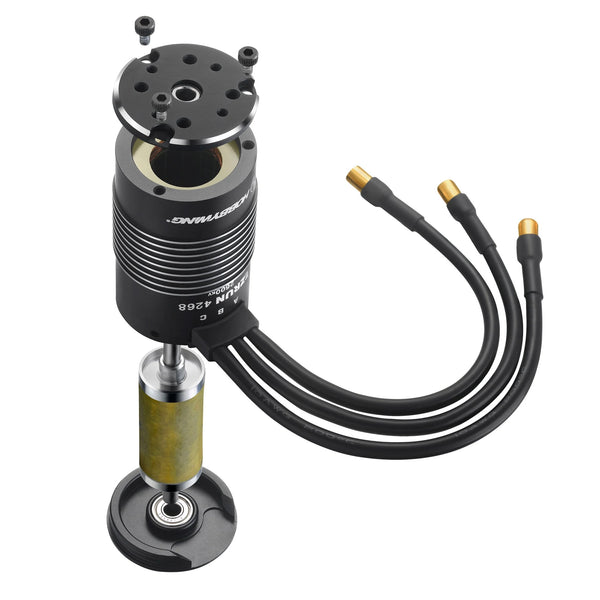

This is the Hobbywing EZRUN 4268SL 2600KV Brushless Motor. This motor pairs perfectly with the Hobbywing EZRUN Max8 ESC and is ideal for 1/8 and 1/5 scale applications, such as Buggies, Truggies, Short Course Trucks, Touring and On-Road Vehicles.
FEATURES:
- 4-pole rotor for high torque, fast acceleration response, and stable power output.
- Special technology for temperature control implemented by this motor guarantees less heat and more efficiency (efficiency rate of up to 90%).
- CNC machined aluminum housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, and high-precision bearings for high durability and smoothness.
- Rebuildable design (partially rebuildable) for routine maintenance effectively prolongs the motor life and raises the motor efficiency.
SPECIFICATIONS:
- Part# 30402750
- Size: 4268
- KV: 2600KV
- Number of Poles: 4-Pole
- LiPo Rating: 2-4S
- R. (Ω): 0.0052
- Current No-load (A): 4.2
- Diameter: Φ=42mm
- Length: 68mm
- Shaft Diameter: 5mm
- Shaft Length: 18.5mm
- Weight: 12.098oz
HELPFUL LINKS:
INCLUDES:
(1) EZRUN 4268 / 2600KV Brushless Motor (4-Pole / 5mm Shaft)
