Feetech FT5330M 35kg Digital Servo (25T Spline / Metal Gears)

$24.99

Feetech FT5330M 35kg Digital Servo (25T Spline / Metal Gears)

The FEETECH FT5330M 7.4V 35kg Servo is commonly used in RC Cars, Airplanes, Robots, Mechanical Arms, and other remote control toys.


FEATURES:

  • Fast heat dissipation, big torque high compatibility, sensitive and responsive.
  • Advanced linearity and accuracy with precision potentiometers, stable, low noise,water-proof rubber seal screws.
  • Large Torque - 35kg.cm @7.4V.

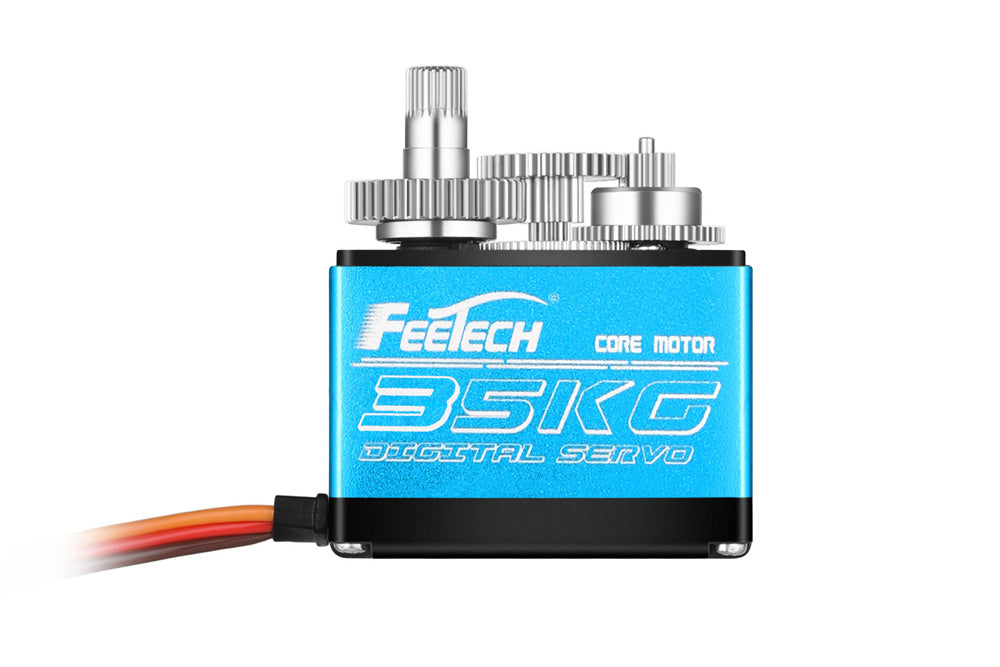

  • High Quality Equipped with High-precision strong steel gears, CNC aluminum middle case.
  • Smart Control-Overload, Over temperature protection.



SPECIFICATIONS:

  • Part# FT5330M
  • Storage Temperature Range: -30 ~ 80 °C
  • Operating Temperature Range: -20 ~ 60 °C
  • Gear type: Steel
  • Limit angle: No limit
  • Bearing: Ball bearings
  • Horn gear spline: 25T / 5.9 mm
  • Horn Type: Plastic, POM
  • Case: PA+Aluminum
  • Motor: Core Motor
  • Operating Voltage Range: 6 V - 7.4 V
  • Idle current (at stopped): 6 MA @ 7.4 V
  • No-load speed: 0. 192 sec/60° @ 7.4 V
  • Running current (at no load): 180 mA @ 7.4 V
  • Peak stall torque: 35.5 kg.cm @ 7.4 V
  • Rated torque: 11.8 kg.cm @ 7.4 V
  • Stall current: 3.9 A @ 7.4 V
  • Command signal: Pulse width modification
  • Amplifier type: Digital comparator
  • Pulse width range: 500~2500 usec
  • Stop position: 1500 sec
  • Running degree: 220° Continuous Rotation
  • Dead band width: ≤4 μsec
  • Rotating direction: Counterclockwise (1500-2000μ sec)
  • Weight: 67土1g



INCLUDES:

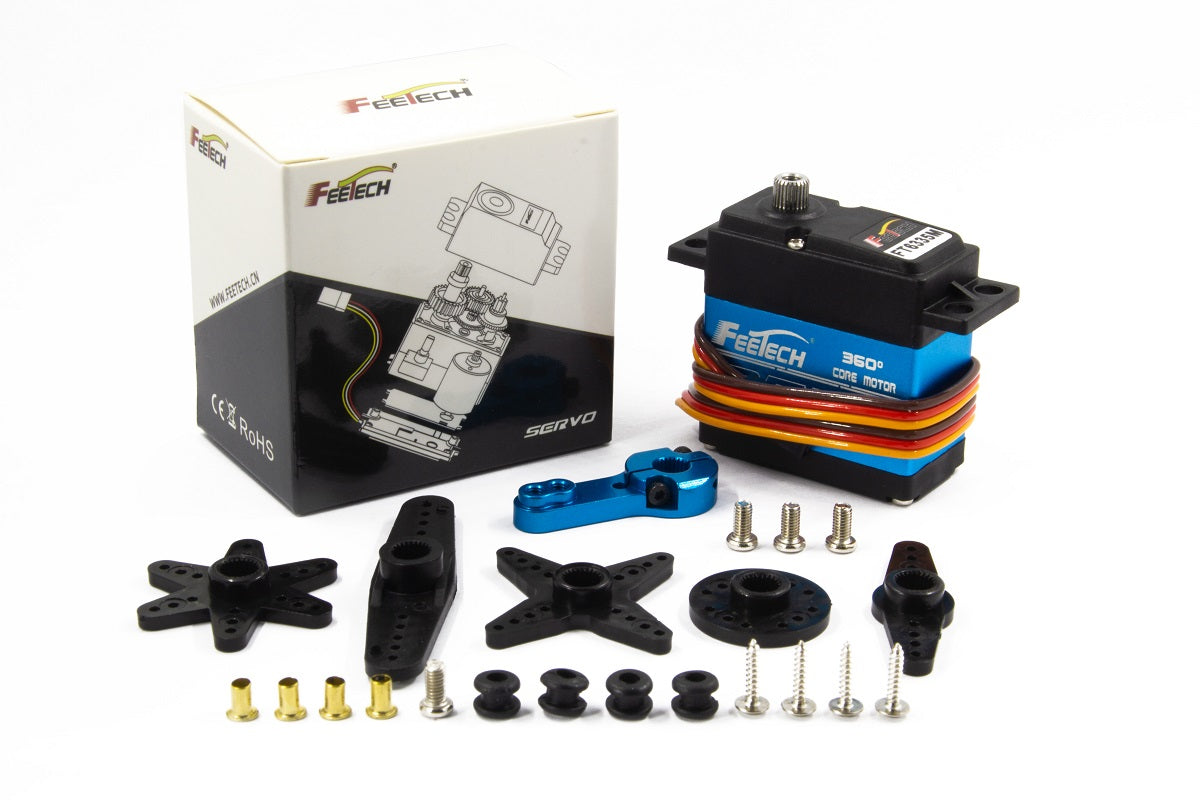

(1) Feetech FT5330M Digital Servo
(1) Hardware Set
(1) Servo Horn Set
