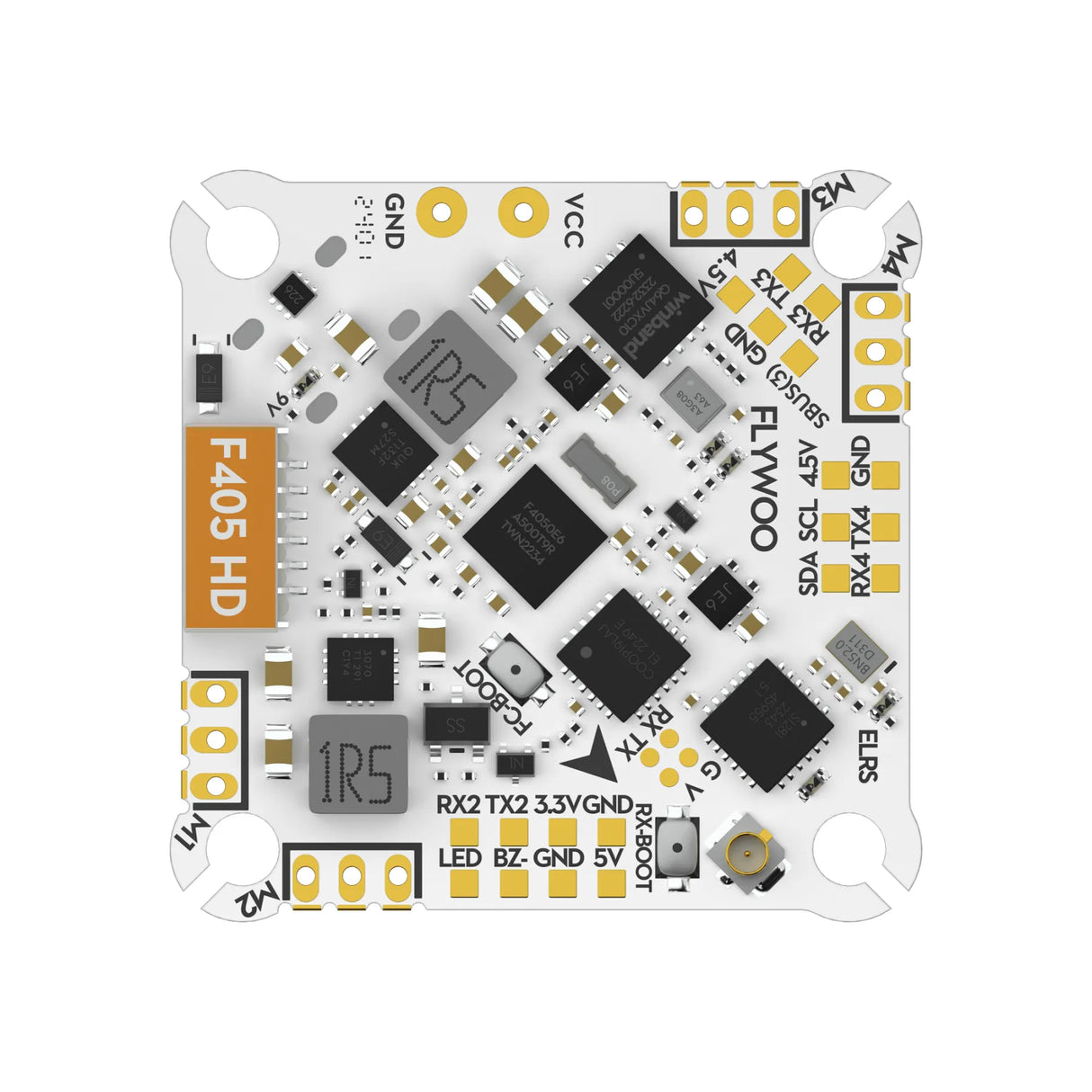

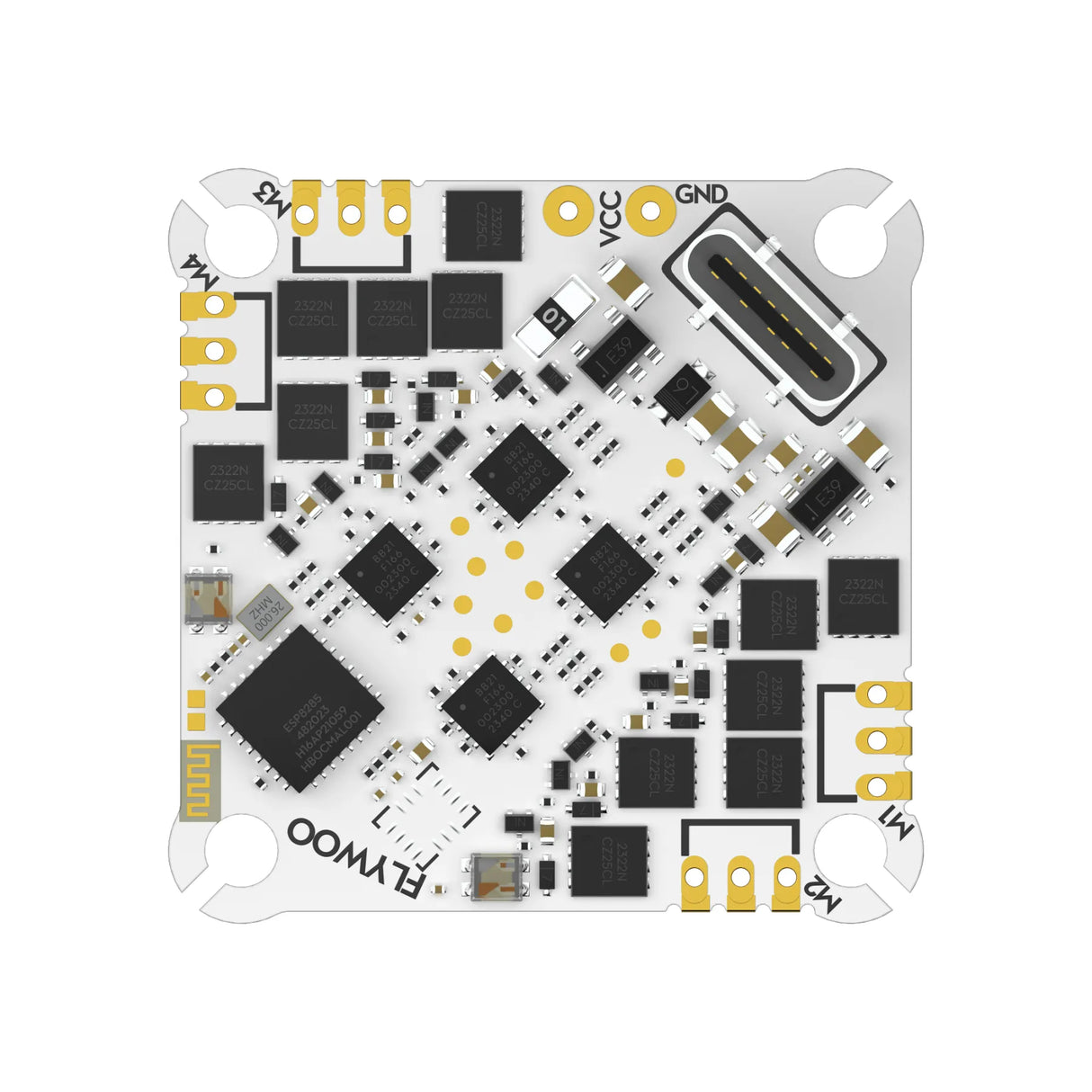

Flywoo GOKU F405 HD / 12A / 25x25 AIO Flight Controller w/ ELRS (Bluejay / 1-2S)

The Flywoo GOKU F405 HD 1–2S ELRS AIO V2 is a compact, lightweight all‑in‑one board built for digital‑ready 1–2S whoops and micro quads. With an F405 processor, integrated ELRS receiver, and clean power delivery in a 25.5×25.5 mm layout, it offers smooth flight performance and strong signal reliability while keeping builds simple and ultra‑light.

FEATURES:

• F405 flight controller for fast, stable processing
• Built‑in ELRS 2.4GHz receiver for long‑range, low‑latency control
• Designed for 1–2S digital micro builds
• Clean, lightweight AIO layout to minimize wiring and save weight
• Integrated power management for stable system performance
• Multiple UARTs for peripheral expansion
• 25.5×25.5 mm mounting pattern for whoops and micro frames

SPECIFICATIONS:

• MCU: STM32F405
• Input Voltage: 1–2S LiPo
• Gyro: BMI270
• Receiver: Built‑in ELRS 2.4GHz
• BEC Output: 5V
• OSD: No Analog OSD
• UART Ports: Multiple UARTs available
• Mounting Pattern: 25.5 × 25.5 mm (M2)
• Weight: 4.9g
• Integrated Functions: FC + ELRS RX + OSD + power management

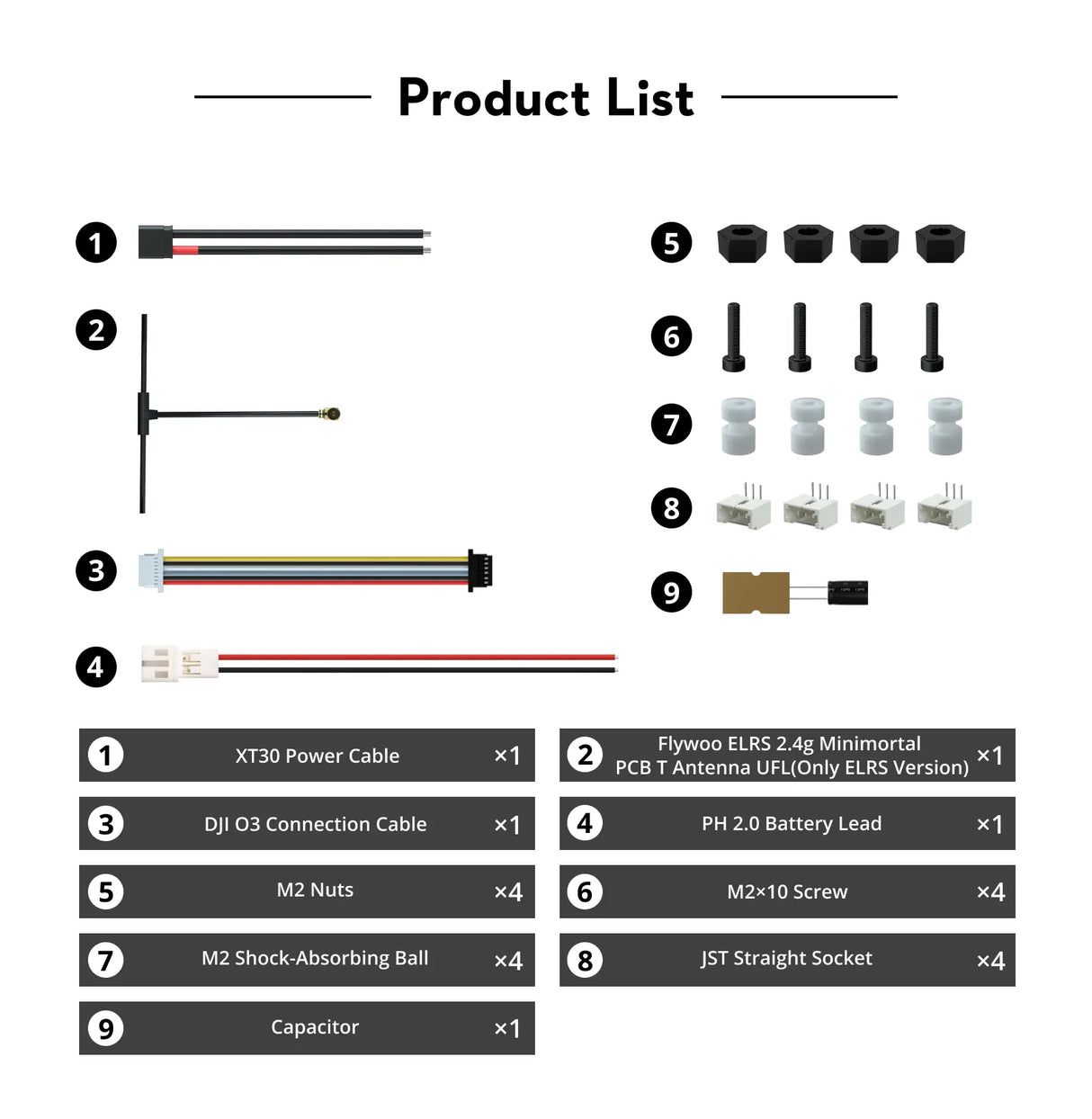

INCLUDES:

(1) Flywoo GOKU F405 / 12A / 25x25 AIO Flight Controller w/ ELRS
(1) XT30 Power Cable
(1) Flywoo ELRS 2.4g Minimortal PCB T Antenna UFL
(1) DJI O3 Connection Cable
(1) PH 2.0 Battery Lead
(1) Capacitor
(4) JST Straight Socket
(4) M2*10 screw
(4) M2 nuts
(4) M2 shock-absorbing ball

NOTES:

• This version does not provide an on‑screen display (OSD) for analog VTX systems.

• Manufacturer upgrades, alterations, and processor/firmware changes are frequently made without prior notice. Exact specifications, photos, and links cannot be guaranteed.
