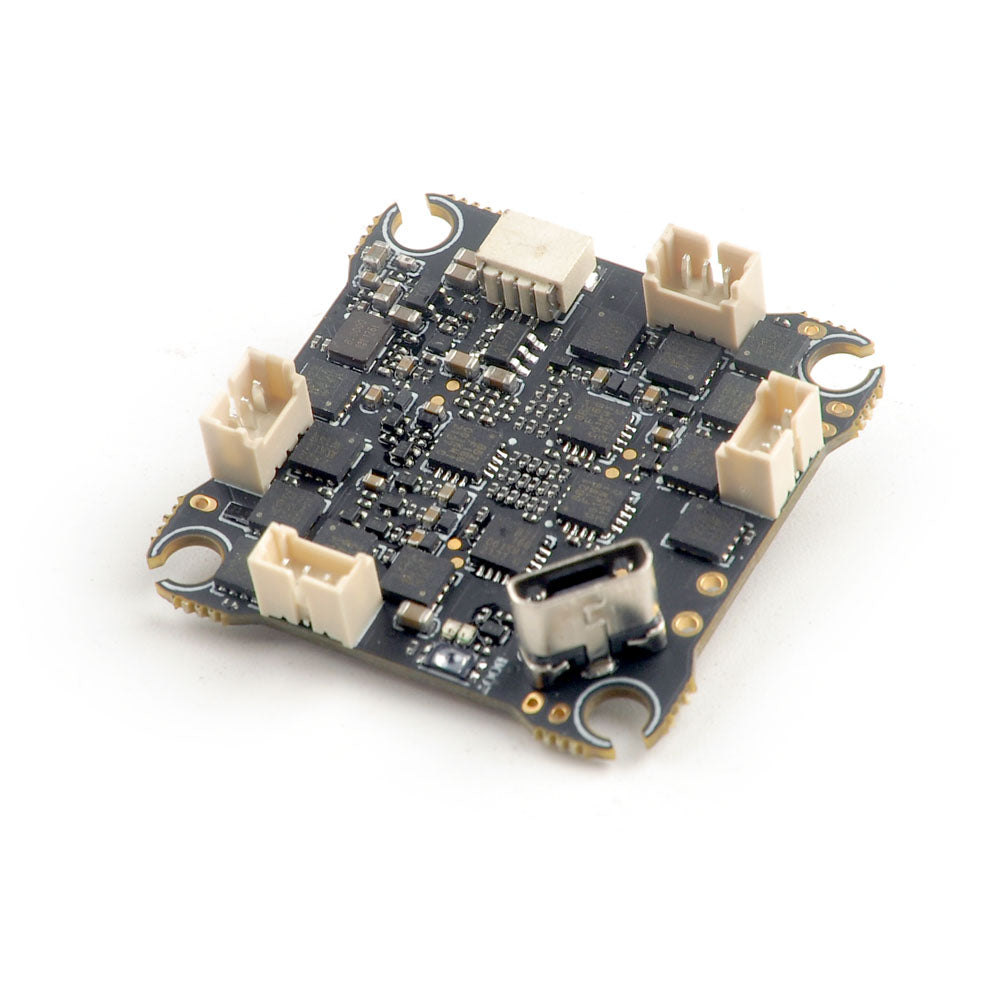

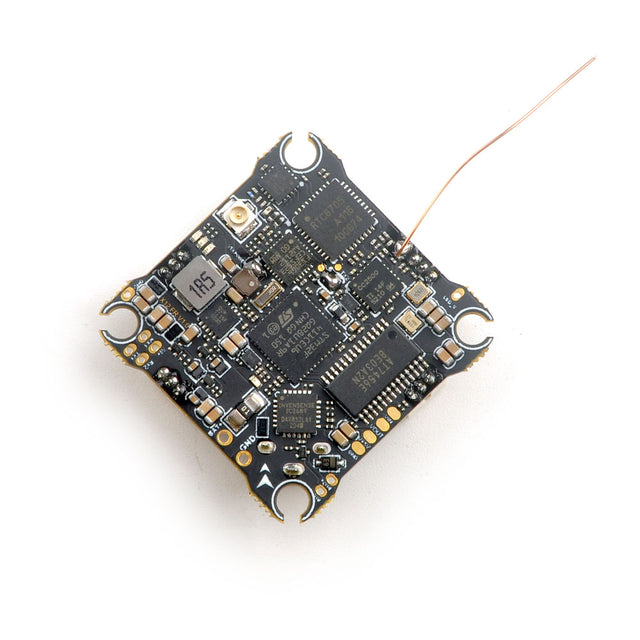

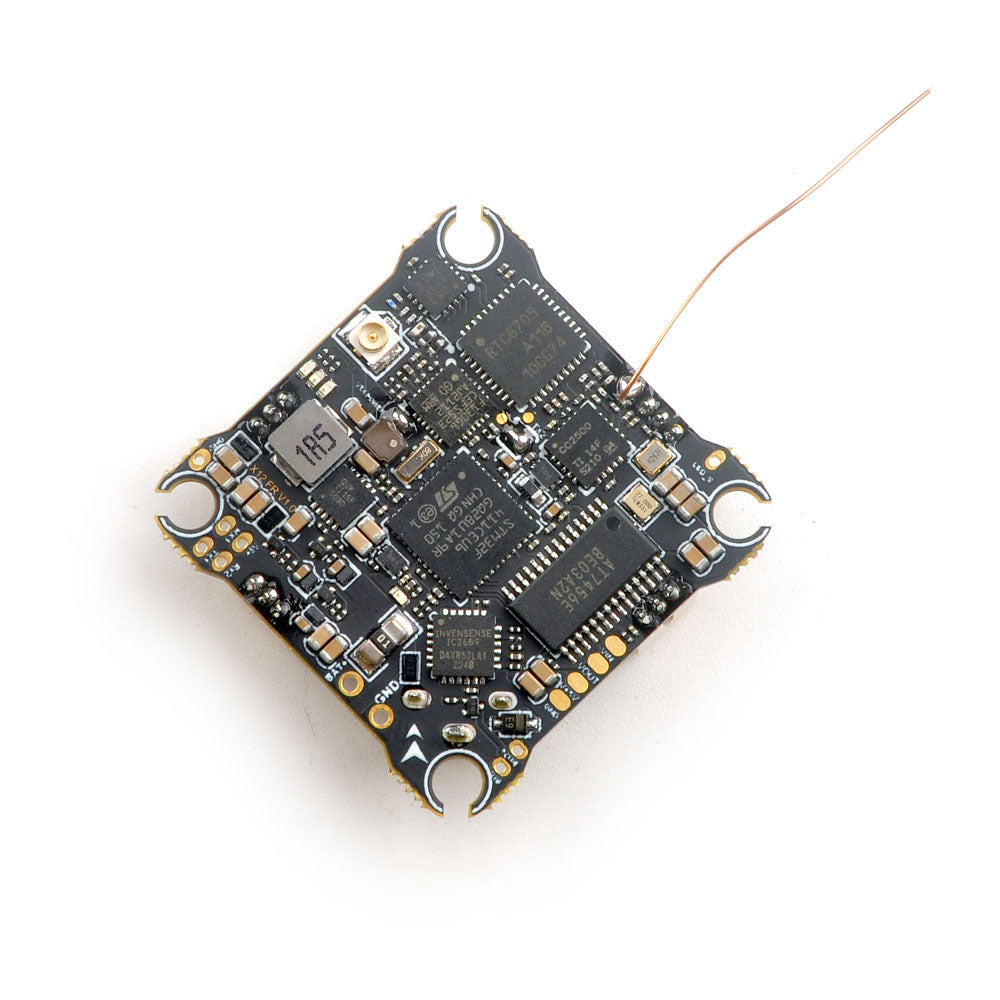

HappyModel X12 AIO Brushless Flight Controller (FrSky / 12A / 1-2S)

Regular price $69.99

Free Pickup option available at our storefront in Jacksonville, Florida. Shipping also available on most items to all 50 US States & Territories. See Shipping Policy for more details.

Introducing the 5-IN-1 AIO flight controller from HappyModel. It comes with an onboard SPI FrSky receiver which supports FrSky D8/D16, REDPINE, and SFHSS. This flight controller is great for brushless whoops and toohpicks.



FEATURES:

  • Built-in VTX (OPENVTX / up to 400mW)
  • Built-in Frsky D8/D16 receiver
  • Built-in 12A(each) Blheli_S 4in1 ESC
  • Provides significant RX and VTX range



SPECIFICATIONS:

Flight Controller:

  • MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
  • Sensor: Either MPU6000, ICM20689, or BMI270 (SPI connection)
  • Mount hole size: 25.5mm x 25.5mm
  • Power supply: 1-2S battery input (DC 2.9V-8.7V)
  • Built-in 12A(each) Blheli_S 4in1 ESC
  • Built-in Betaflight OSD (SPI Control)
  • Built-in 5.8G OpenVTX 0mW~400mW
  • Built-in Frsky D8/D16 (Target: CRAZYBEEF4FR)
  • Built-in voltage meter sensor: Voltage meter scale 110
  • Built-in current meter sensor: Current meter scale 470



ESC:

  • Power Supply: 1-2S LiPo/LiPo HV
  • Current: 12A continuous peak 15A (3 seconds)
  • Support BLHeliSuite Programmable
  • Factory firmware: Z_H_30_REV16_7.HEX
  • Default Protocol: DSHOT300
  • Support Bluejay firmware



Receiver:

  • SPI BUS Receiver
  • CC2500 RF
  • Compatible Non-EU transmitter D8/D16 model
  • Channels: 8CH
  • Transmitter and Receiver 1m from the ground): 200meter Failsafe support
  • Supports FrSky D8/ D16, REDPINE, SFHSS



HELPFUL LINKS:

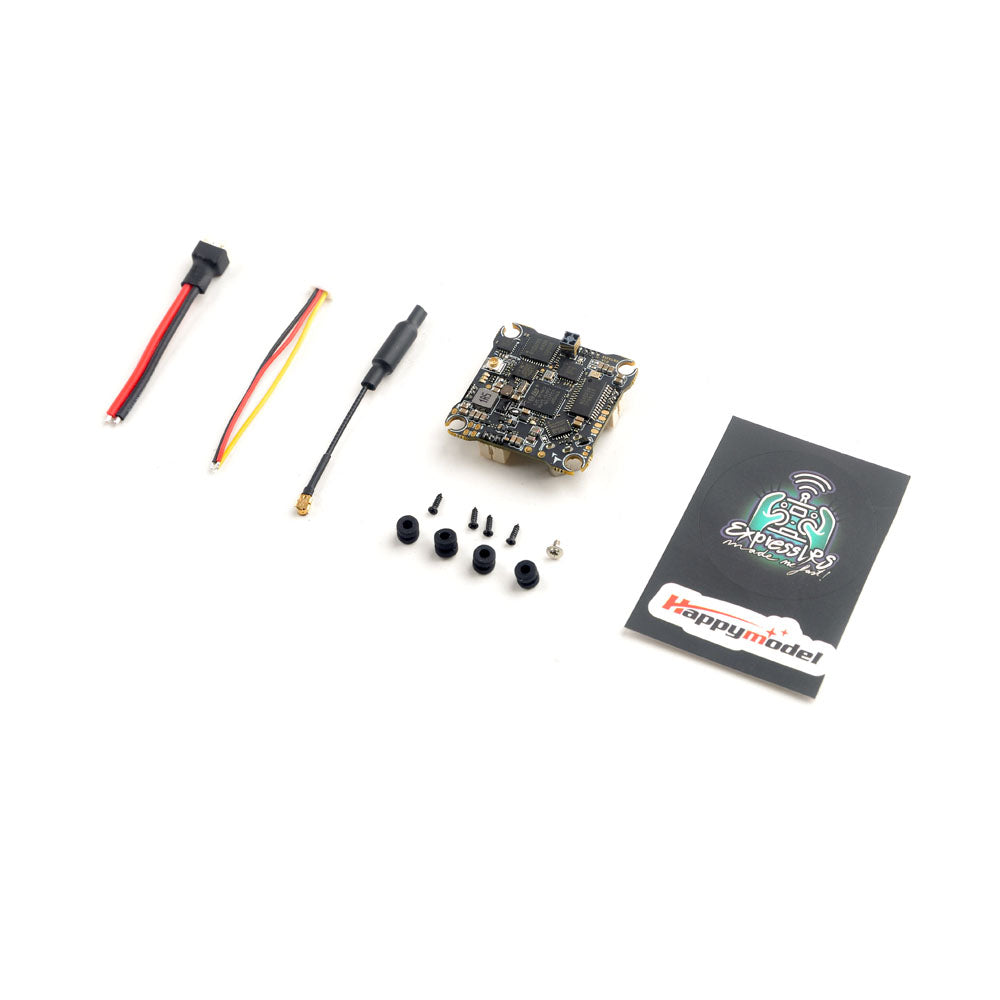

INCLUDES:

(1) HappyModel X12 AIO Brushless Flight Controller
(1) JST-PH2 Power Lead
(4) Rubber Grommets (Black)
(5) Screws
(1) IPEX u.FL Linear Antenna
(1) Connecting Wire
(1) Manual



NOTES:

  • When using Bluejay firmware with 48khz, should set startup power to 1100/1200
