HGLRC Sector5 V3 HD 5" Brushless FPV Racing Drone (6S / GPS / Air Unit Polar / PNP)

Regular price $479.99

Free Pickup option available at our storefront in Jacksonville, Florida. Shipping also available to all 50 US States & Territories. See Shipping Policy for shipping cutoff times.

The Sector5 V3 HD is a 5" Freestyle quadcopter that comes fully assembled with everything you need to have an amazing flight experience! Plus, the HD version now allows you to use your DJI Goggles to get the best video footage possible. Lots of new parts have been upgraded in the V3, including the new arm protectors, new GPS mount, and power cable fixing mount.  The upgraded carbon fiber, screws and TPU printed parts make the V3 more durable than the V2.





FEATURES:

  • Compatible LEDs and GPS. Control the LED lights easily with the press of a button on the Zeus F722 FC.

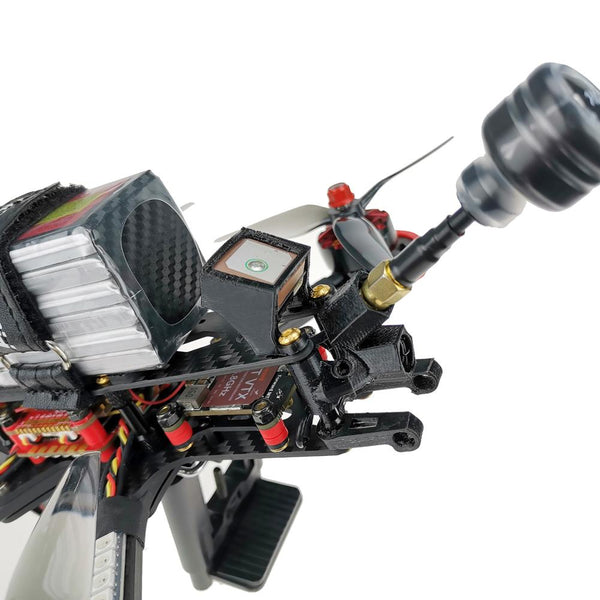

  • GPS Rescue. The Sector5 V3 also supports GPS-rescue with one of the most stable GPS units available, the HGLRC M80.
  • No Props in view. Enjoy the clear view of flying!
  • Adjustable camera mount angle from 25°, 30°, 35° to 40°.
  • Capacitor slot to hide the capacitor for a neater look.
  • All TPU parts (STL Files) available for free, so you can print spare parts yourself on any 3D printer (see HELPFUL LINKS section below).
  • Plug-and-Play DJI support with the Zeus F722 flight controller.



REQUIRED:

  • Radio Receiver (Requires soldering. See Notes section below for options)
  • 4S - 6S Li-Po Battery with XT60 Connector
  • Radio Transmitter/Remote Control
  • DJI FPV Goggles



SPECIFICATIONS:

Frame:

  • Type: Sector5 V3 Freestyle Frame
  • Size: 5"
  • Wheelbase: 218mm
  • Supports propellers up to 5.2 inches
  • Overall size: 172.5 x 136.7mm
  • Power plug: XT60



Flight Controller:

  • Type: Zeus F722
  • MPU: MPU6000
  • CPU: STM32F722 RET6
  • Input Voltage: 3-6S Lipo
  • BEC Output: 5V/3A / 9V/2A



ESC:

  • Type: Zeus 48A BL_S
  • Input Voltage: 3-6S Lipo
  • Steady Current: 48A
  • Peak Current: 55A (10 Sec)
  • W554B LED Light boards (x4)



Camera & VTX:

  • Type: Caddx Polar Vista
  • Operating Frequency: 5.725-5.850GHz
  • Input Power: 7.4-17.6 V
  • Channels: 8


Motors:

  • Type: Aeolus Brushless Motor
  • Size: 2306.5
  • KV: 1900KV
  • No. of Cells(Lipo): (4S - 6S)
  • Recommended Prop(inch): 5Inch



Propellers:

  • EthixS5 Propellers
  • Size: 5"
  • Pitch: 4



GPS:

  • Type: HGLRC M80
  • Chip: M8030
  • Power Supply: 5V
  • Antenna: Ceramic Antenna
  • Output Protocol: UBLOX
  • Output Frequency: 1Hz-10Hz, Default 10Hz



HELPFUL LINKS:



    INCLUDES:

    (1) HGLRC Sector5 V3 HD Brushless FPV Drone (NO RECEIVER)

    • (1) Zeus F722 FC (Installed)
    • (1) Zeus 48A ESC (Installed)
    • (1) Caddx Air Unit with Polar Vista (Installed)
    • (4) Aeolus 2306.5 / 1900KV Motors (Installed)
    • (1) M80 GPS (Installed)

    (8) EthixS5 propellers (4CW & 4CCW)
    (4) W5548 LED Boards
    (4) Battery Straps



    NOTES:

    • Buy this drone and a receiver of your choice, get a free receiver installation! Just request a "Free Receiver Install" on the Cart page in the Notes section.
    • For issues with your Caddx Polar Kit, please contact www.caddxfpv.com/pages/contact-us.
    • GoPro7 Mount seen in photo is NOT included but can be printed via the STL files.
    • GoPro7 Camera as seen in photo is NOT included.
