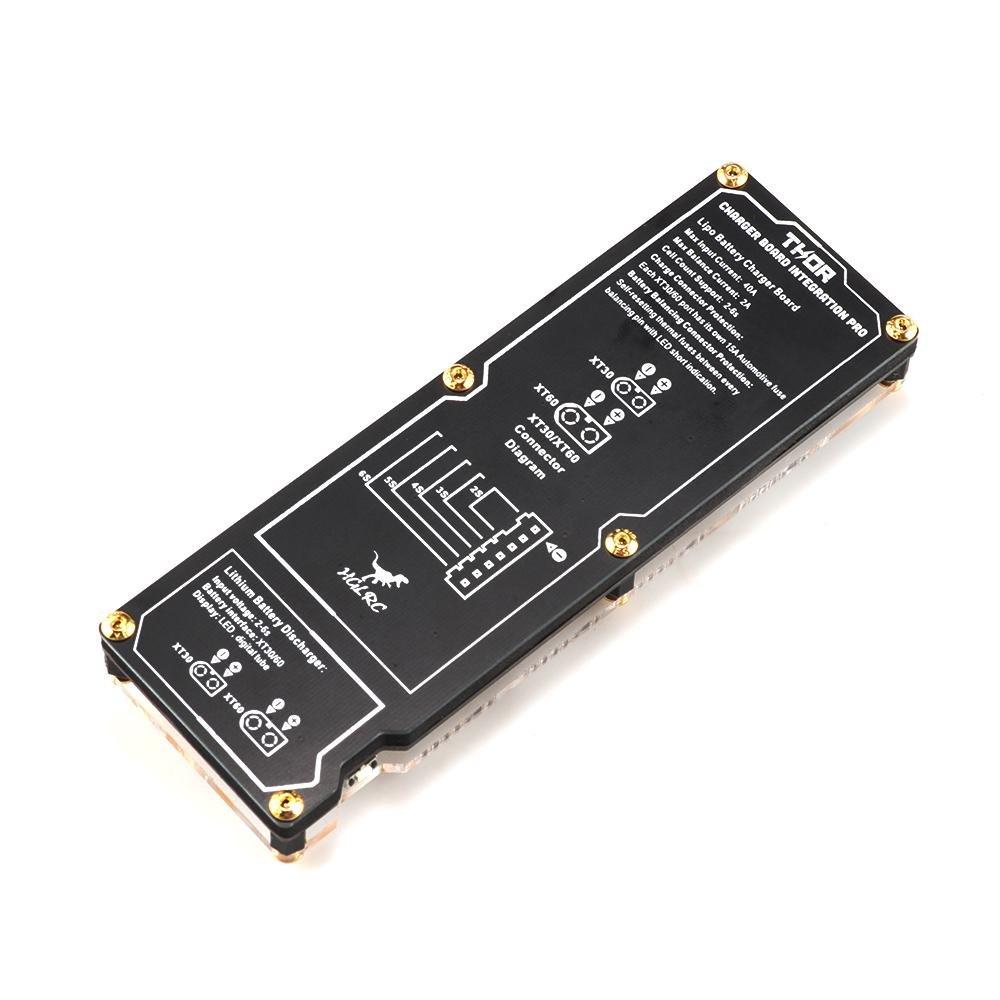

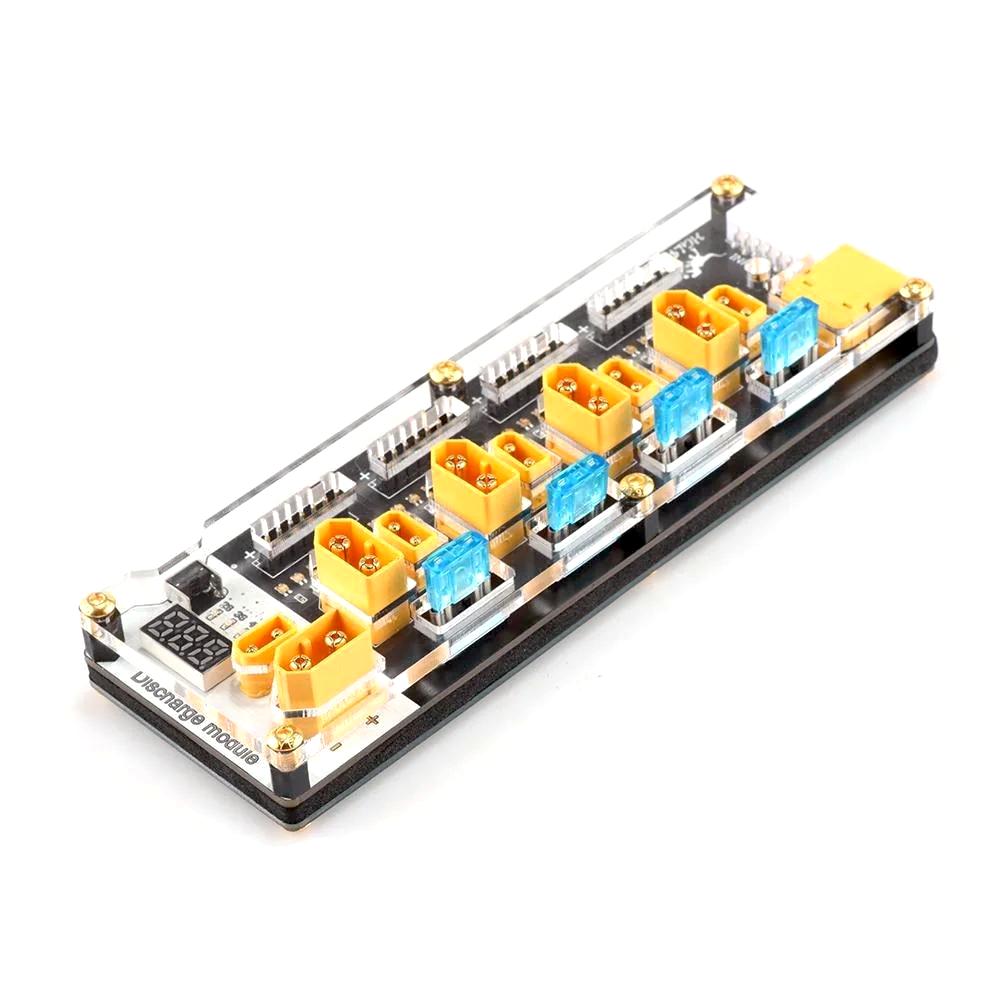

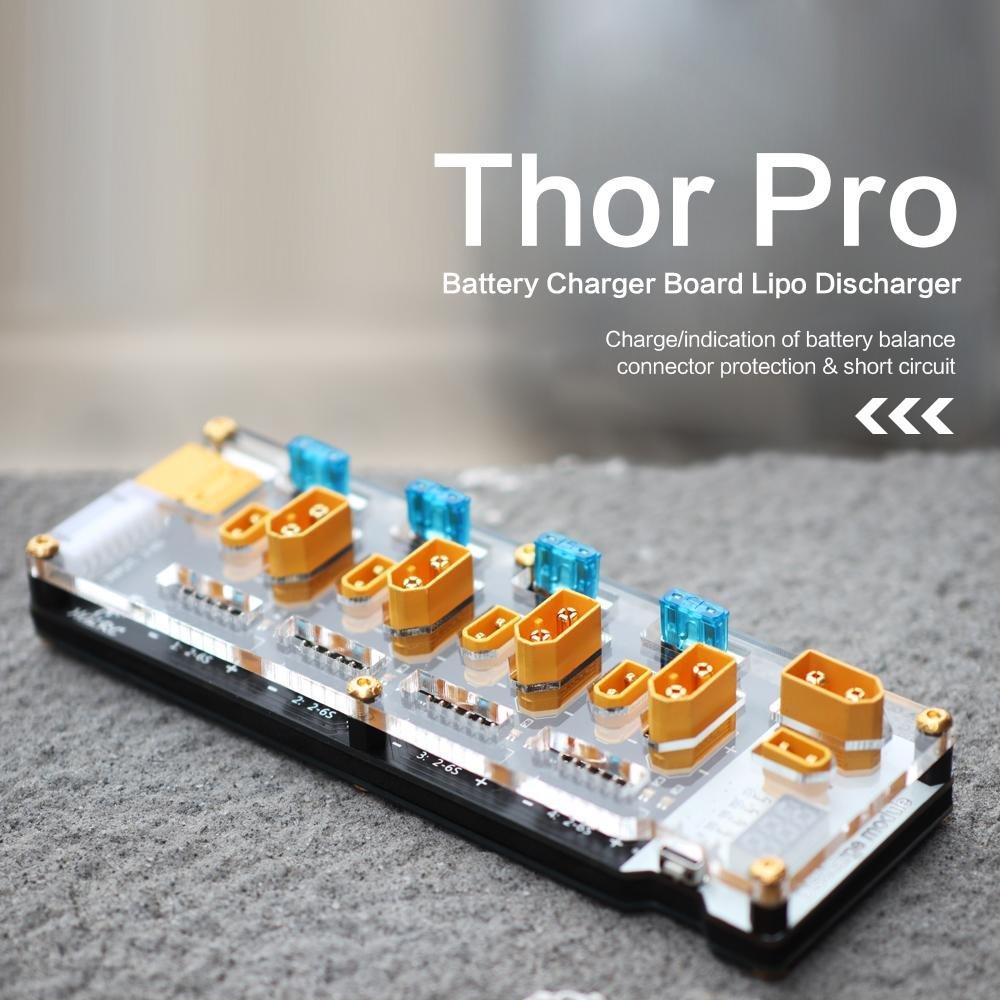

The HGLRC Thor Balance Charger/Discharger board is a great tool for your LiPo batteries. Not only can you charge up to 4 batteries at once, it is also designed to protect your circuits and avoid shorts. With the help of its LED indication lights, this charger board does it all.
FEATURES:
- Indicates with LED lights when battery charge/discharge is complete, and if there is a short circuit.
- Each electric circuit has its own 15A fuse, to ensure protection for your batteries.
- Supports 4 LiPo batteries to be charged at the same time.
- Discharger module for long-term storage.
SPECIFICATIONS:
Balance Charger Board:
- Max Input Current: 40A
- Max Balance Current: 2A
- Cell Count Support: 2-6S
- Charge Connector Protection: Each XT30/XT60 port has its own 15A Automotive fuse
- Battery Balancing Connector Protection: There is an indication of LED when self-resetting occurs in short circuit situations (thermal fuses between every balancing pin)
Discharger:
- Input voltage: 2-6S
- Cut-off voltage for discharging of Single-chip: 3.8V
- Battery Type: LiPo battery
- Battery interface: XT30/XT60
HELPFUL LINKS:

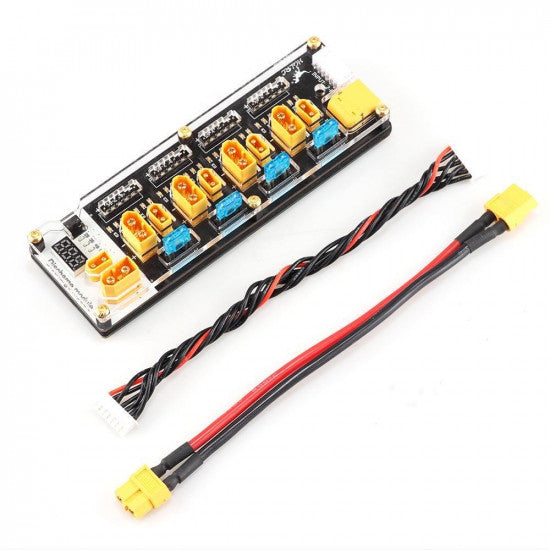

INCLUDES:
(1) Thor Lipo Battery Balance Charger/Discharger Board Pro
(1) Balance Cable (200mm)
(1) Balance XT60 Cable (Female to Female Cable) (200mm)
