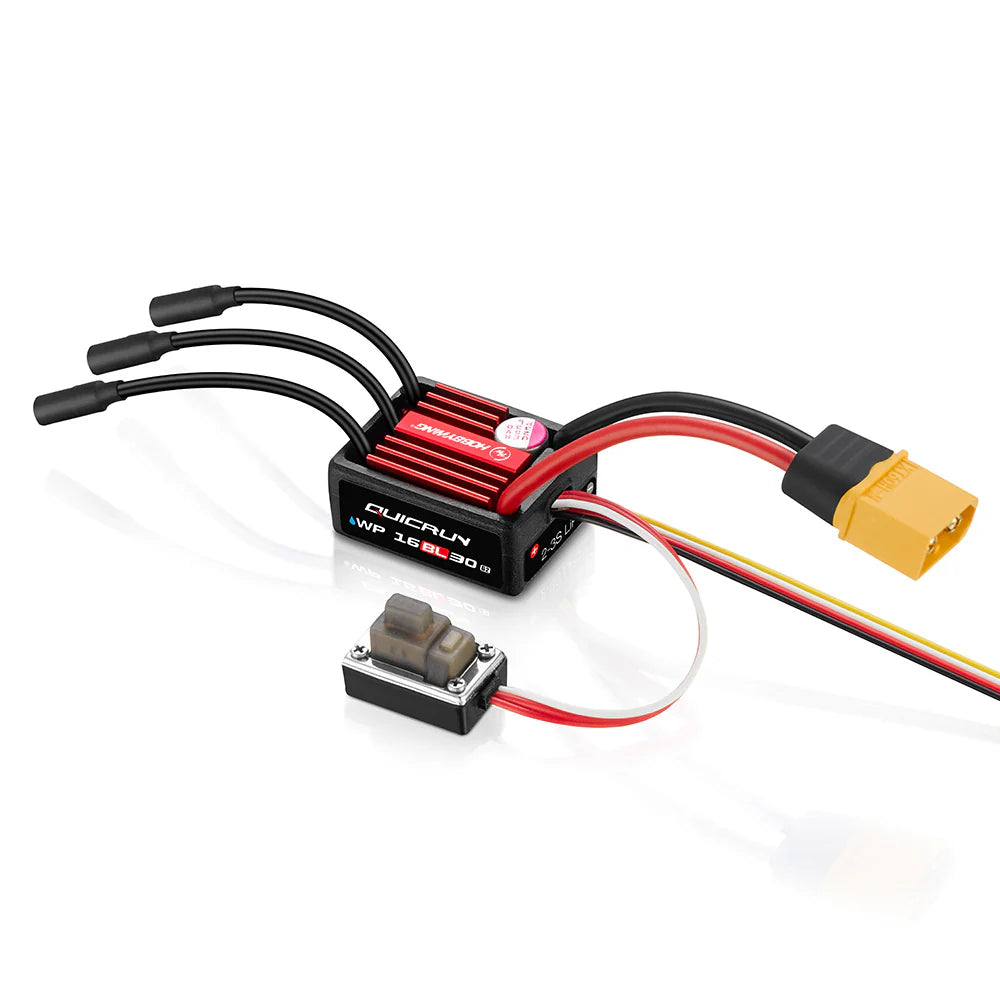

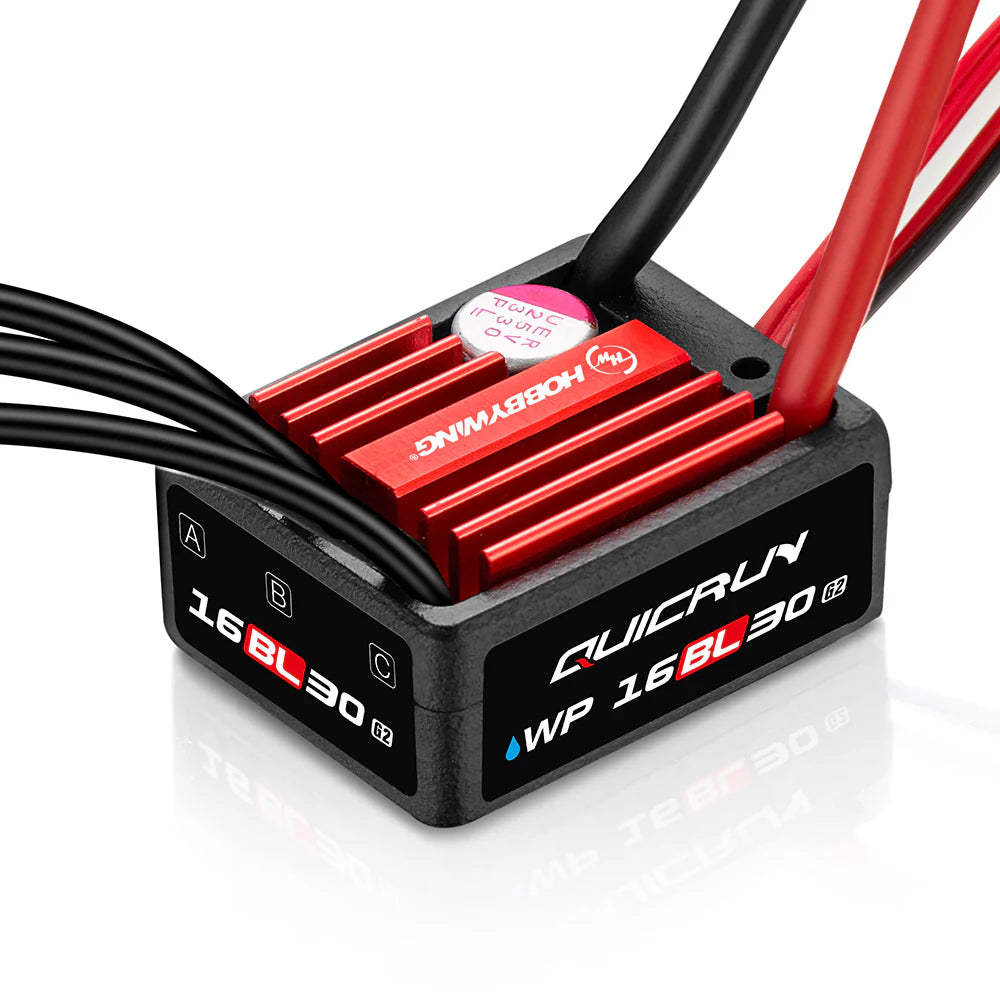

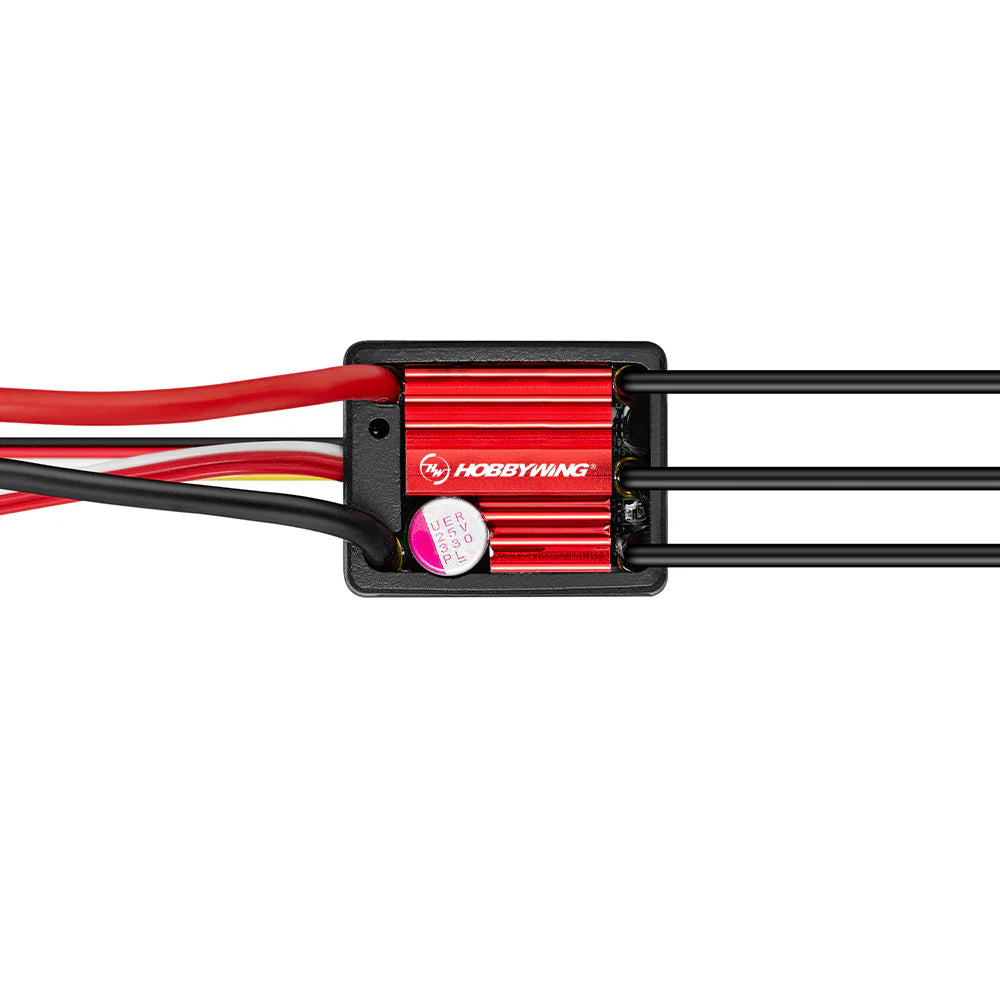

HobbyWing QUICRUN WP-16BL30 G2 30A Brushless ESC (2-3S / XT60)
The Hobbywing QuicRun 16BL30 G2 is a compact, waterproof 30‑amp brushless ESC designed for 1/14, 1/16, and 1/18 scale vehicles. It delivers smooth, efficient power with intelligent freewheeling technology, supports 2–3S LiPo batteries, and features a selectable 6V/7.4V BEC for modern servos. Small, durable, and easy to set up, it’s a reliable upgrade for mini on‑road or off‑road builds.
FEATURES:
- Excellent performance, specially designed for 1/16 & 1/18 On-road & Off-Road. Designed to pair with Quicrun 2030/2435 G2 Motor
- The ESC features intelligent freewheeling technology, delivering higher drive efficiency, lower operating temperatures, improved stability, and greater reliability.
- Compared to the previous generation 16BL30 ESC, the G2 ESC is significantly smaller: 8.3% shorter in length, 7.1% narrower, and 16.7% lower in height. This design is compact and makes installation easier and allows for cleaner wiring on the chassis.
- Compared to the G1 ESC, the BEC’s continuous current has been upgraded from 1A to 2A, with a peak current of up to 4A. The output voltage can be switched between 6V and 7.4V. Easily powering high-torque and high-voltage servos. This provides faster response and more precise control.
- IP67-rated protection allows it to easily handle harsh environments such as rain, sand, and muddy roads, ensuring reliable performance without environmental limitations.
- The ESC offers excellent compatibility when paired with QuicRun 2030 G2/2435 G3 motors, delivering smoother control.
- The power system is suitable for both 1/16th & 1/18th scale hobby vehicles.
SPECIFICATIONS:
- Part# 30110001
- Continuous / Peak Current: 30A / 100A
- Battery Compatibility: 2–3S LiPo
- BEC Output: 6V or 7.4V selectable, 2A continuous, 4A peak
- Waterproof: Yes (WP series)
- Scale: 1/14 & 1/18
- Size / Weight: 36 x 28 x 16mm / 38g
- Motor Bullet Connector: 3.5mm female bullet connectors
- Connector Type: XT60 Male
HELPFUL LINKS:
INCLUDES:
(1) QuicRun 16BL30 G2 30A Brushless 2-3S ESC
