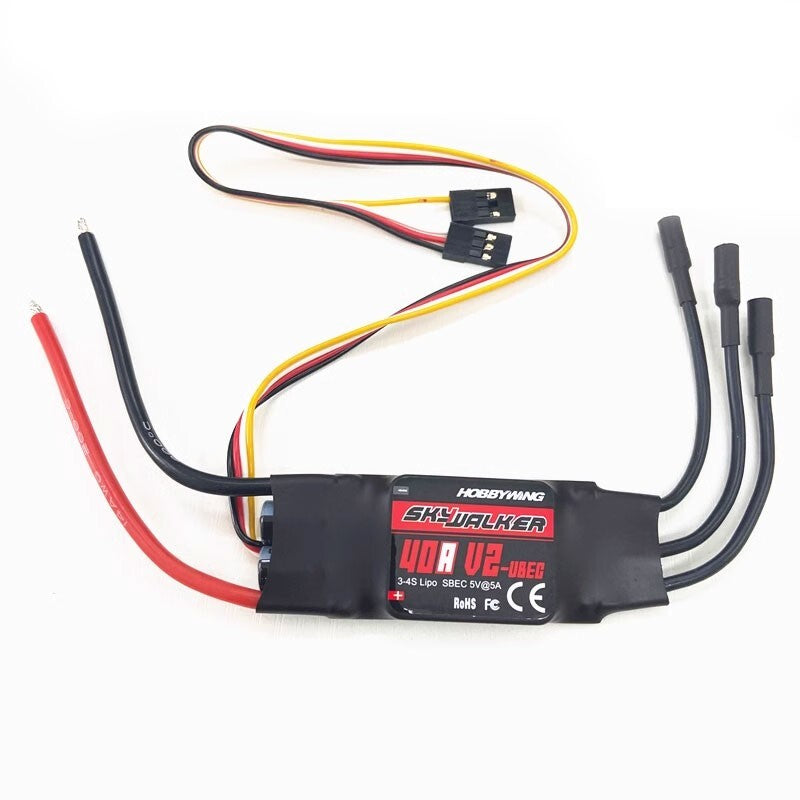

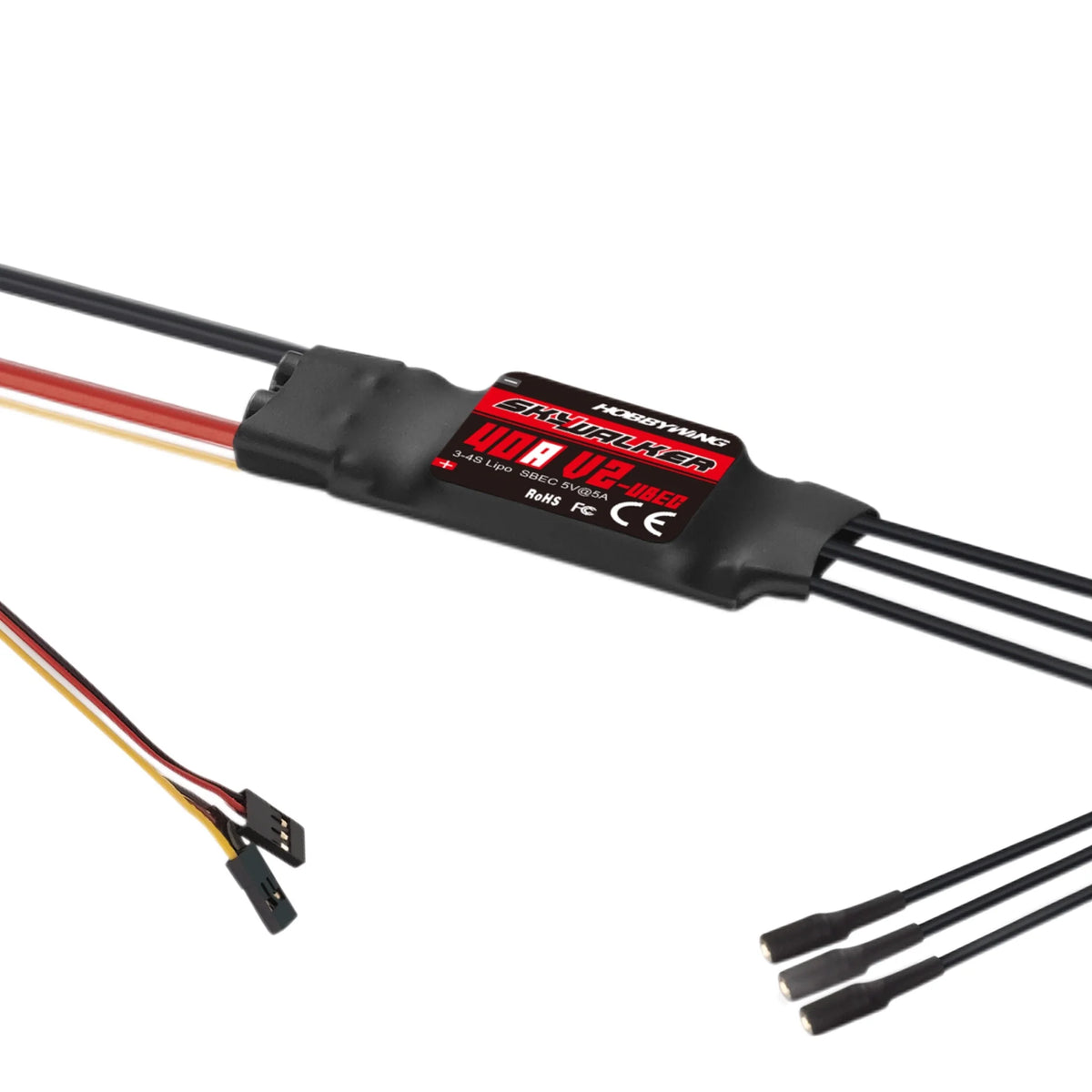

HobbyWing Skywalker V2 / 40A Brushless ESC (5V BEC)

The Hobbywing Skywalker 40A ESC is a reliable, lightweight speed controller built for smooth, efficient power delivery in small to mid‑size aircraft. It supports 2–4S LiPo, features a responsive linear throttle, and includes multiple protection modes to keep your setup safe. With its compact design, strong compatibility, and stable performance, it’s a solid choice for fixed‑wing pilots looking for dependable control without extra complexity.

FEATURES:

• 40A Continuous Output — Supports up to 40A continuous current for small to mid‑size fixed‑wing aircraft.
• 2–4S LiPo Support — Compatible with common flight packs for sport and trainer planes.
• Linear Throttle Response — Smooth, predictable throttle feel for stable flight control.
• Multiple Protection Modes — Includes low‑voltage cutoff, overheat protection, and throttle signal loss protection.
• BEC Output — Built‑in BEC provides regulated power to the receiver and servos.
• Compact, Lightweight Design — Easy to fit into tight fuselages without adding unnecessary weight.
• Fixed‑Wing Optimized Firmware — Tuned for reliable startup and stable mid‑throttle performance.
• Easy Setup — Simple programming options for quick installation and adjustment.

SPECIFICATIONS:

• Part#: 80060022
• Continuous Current: 40A
• Burst Current: 60A
• Input Voltage: 2–4S LiPo
• BEC Output: 5V / 3A (Linear)
• PWM Frequency: 8 kHz
• Throttle Range: 1–2 ms
• Dimensions: ~45 × 24 × 11 mm
• Weight: ~28 g
• Protection Modes: Low‑voltage cutoff, overheat protection, signal‑loss protection
• Firmware Type: Fixed‑wing optimized
• Connector: No battery connector

HELPFUL LINKS:

• Manual

INCLUDES:

(1) HobbyWing Skywalker V2 / 40A Brushless ESC
