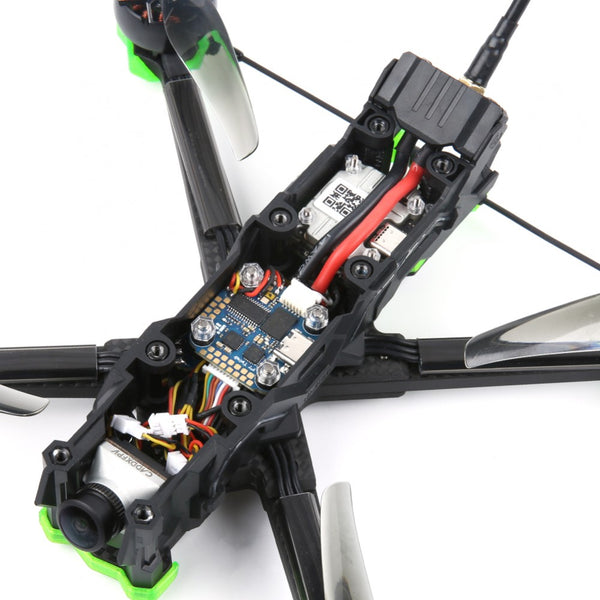

Introducing the new Nazgul Evoque F5D Drone. Fully protected electronics, fully illuminated and coupled with all the latest and greatest electronics that iFlight has to offer. Months of engineering went into this BNF and all the lessons learned before, making sure that beginners, as well as experienced pilots, would love using the new Nazgul Evoque from the first second they used it.
FEATURES:
- Lightweight side panels to keep your rig clean
- Secured, integrated XT60 Battery Plug
- High-Performance Electronics including an F7 55A Power Stack
- 360-degree illumination for day and night.
- Equipped with the DJI Digital FPV system with 50mBit transmission for 720P video feed on your DJI FPV Goggles and range you would have never expected with your old analog VTX
SPECIFICATIONS:
- Total Dimensions: 136 x 190mm (body dimension)
- Geometry: DC Frame "DeadCat"
- Bottom to top distance: 28mm
- Arm Thickness: 6mm
- Bottom plate thickness: 3mm
- Top plate thickness: 3mm
- Upper (middle) plate thickness: 3mm
- Motors: XING2 2207 (4S/6S)
- Propellers: Nazgul F5 5" Props
- Weight: 14.53oz (412g) (without battery and GoPro mount)
Flight Controller:
- Name: SucceX-D Mini F7
- MCU: 216MHz STM32F722
- Gyro: 2x ICM20689
- Blackbox: 32MB
- Betaflight OSD: Yes
- BEC: 5V 2.5A / 9V 2.5A
- Current sensor scale: 100
- Inverter for SBUS input (UART2-RX)
- Smart Audio & Tramp VTX protocol: Supported
- Beeper pad: Yes
- RSSI input pad: No
- UARTs: 5
- Motor outputs: 4
- 8 pin 4in1 ESC port (GND, VBAT, M1, M2, M3, M4, CUR, R5)
- 6 pin DJI Air Unit port (R1, GND, R2, T2, GND, 9V)
- BLHeli32 Telemetry: Yes
- Input voltage: Recommended 2-6S, MAX 6S
- Firmware target: IFLIGHT_F722_TWING
- Mounting pattern: 20 x 20mm φ4
- Dimensions: 29 x 29mm
- USB: Type-C
ESC:
- Name: SucceX Mini 55A
- Dimension: 31 x 29.5mm
- Mounting Holes: 20 x 20mm / Φ4mm
- Weight: 0.38oz (10.8g)
- Supports 2-6S Lipo input
- MCU: G071
- Constant: 55 Amps
- Burst: 60 Amps
- Current sensor: Yes
- BEC: No
- Current rate: 100
- Supports: DShot150 / 300 / 600 / MultiShot / OneShot etc.
- Firmware: BLHeli 32
- Target: iFlight-G071-4IN1
Receiver Options:
- FrSky XM+
- FrSky R-XSR v2.1
- FrSky D8 R81
INCLUDES:
(1) Nazgul Evoque F5D Brushless FPV Drone w/ Caddx Polar Kit (Select your receiver option)
(2) Sets of Nazgul 5135 3-Blade Propellers (Gray)
(2) Sets of Battery Pads
(4) 20x200mm Battery Straps
(1) Hardware Set
NOTES:
-
All iFlight BNFs are tested by Flight before shipment to guarantee the highest quality but for any reason if you still encounter a problem after receiving your shipment, please immediately contact iFlight customer support at www.iflightrc.freshdesk.com.
- For issues with your Caddx Polar Kit, please contact www.caddxfpv.com/pages/contact-us.
