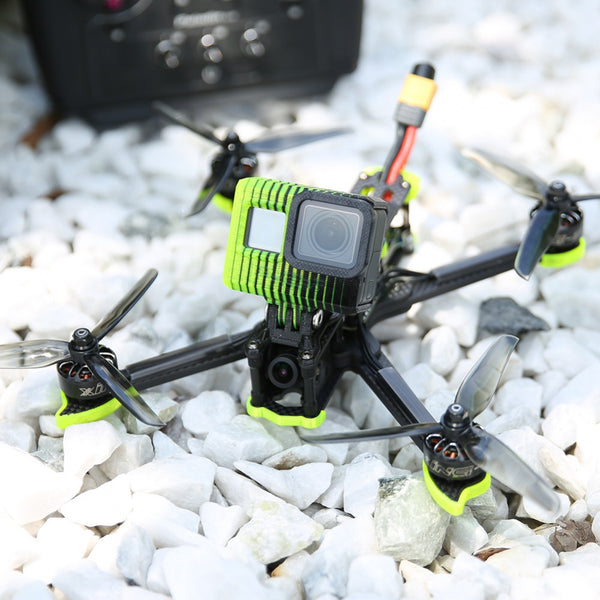

iFlight Nazgul5 V2 Brushless FPV Drone (BNF / FrSky / 6S)

Nazgul5 V2 is a 5" sized FrSky Quadcopter. Pre-tuned and pre-setup, it's everything you need to bind and fly! Loads of power and smooth flights using iFlight's popular XING-E motors with long-lasting NSK bearings.

Pre-Tuned and set up so you don't have to worry about a thing! iFlight did that for you already. A basic PID and Filter tuning was applied for a great flight experience! To restore lost tunes or updates, see the "Firmware/Factory Dumps" link below.

Angle-Mode (self-balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess! Please check the link below on "How to disable Angle-mode and activate Acro-Mode.

FEATURES:

• 5mm arm design for more durability
• Easy-Swap arms
• LED illuminated Logo
• XING-E 2207 motors and NAZGUL 5140 props
• 5" version also fits 5.1" style propellers
• Popular True-X configuration
• TPU crash-guards
• Fits both 30.5x and 20x stacks

REQUIRED:

(1) Radio Controller w/ Correct Protocol
(1) Analog FPV Goggles
(1) 4-6S Li-Po Battery w/ XT60 Connector
(1) LiPo Charger

SPECIFICATIONS:

Frame/Drone Parts:

• SucceX-E 45A 2-6S BLHeli_S 4-in-1 ESC
• SucceX-E F7 V2.1 Flight Controller
• XING-E 2207 FPV Motor / 6S 1800KV
• Wheelbase: 240mm x 240mm
• Body size: 170 x 170mm
• Propeller size: 5 inch /5.1 inch
• FC pattern: 30.5 x 30.5mm / 20 x 20mm
• FPV cam spacing: 19mm
• Weight: 13.87oz (393.4g) (without battery)

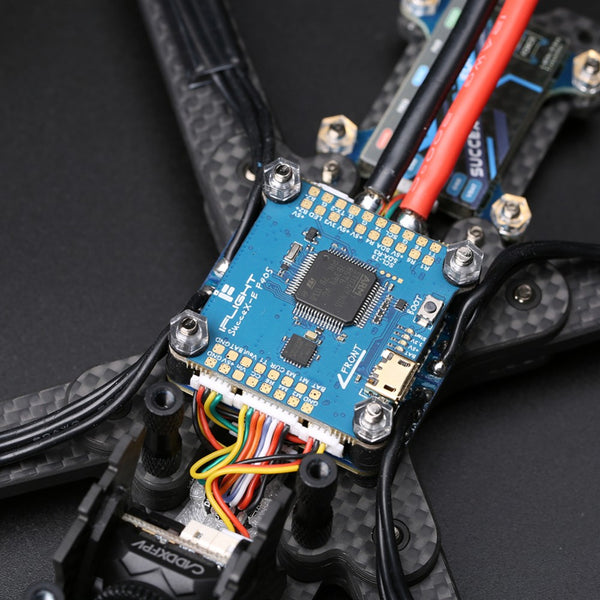

Flight Controller:

• FC: SucceX-E F7 Flight controller
• MCU: STM32F22RET6 216MHz
• Gyro: MPU6000
• Baro: DSP310 (Barometer can only be used with Betaflight 4.3.0 and above)
• OSD: IFLIGHT OSD （AT7456E）
• BEC: 5V 2.5A
• BlackBox: 16MB
• Uart: 4*UART(UART1, UART2, UART4, UART5)
• UART1 for VTX HD (for 4-6S Vista, for 4S DJI Air Unit) / Analog Telemetry
• UART2 for Receiver
• UART4 for Free
• UART5 for ESC Telemetry
• 4x Dshot/PWM outputs
• Smartaudio & IRC Tramp VTX protocol supported
• WS2812 led Strip: Yes
• Beeper: Yes
• Firmware: IFLIGHT_SUCCEX_E_F7
• Outer Size: 36 x 36mm / 30.5 x 30.5 / φ4 mounting
• Weight: 0.24oz (6.9g)

ESC:

• ESC: SucceX-E 45A 2-6S BLHeli_S 4-in-1 ESC
• Dimension: 36 x 43mm
• Mounting Holes: 30.5 x 30.5mm / Φ3mm
• Weight: 0.52oz (15g) (without wire)
• Supports 2-6S Lipo input
• EFM8BB21 MCU, 24Mhz Runs BLHeli_S 16.X Firmware
• Current sensor: YES
• BEC: NO
• Constant: 45A / Burst: 50A
• Supports: DShot150/300/600/MultiShot/OneShot etc.
• Target: G-H-30 BLS 16.7

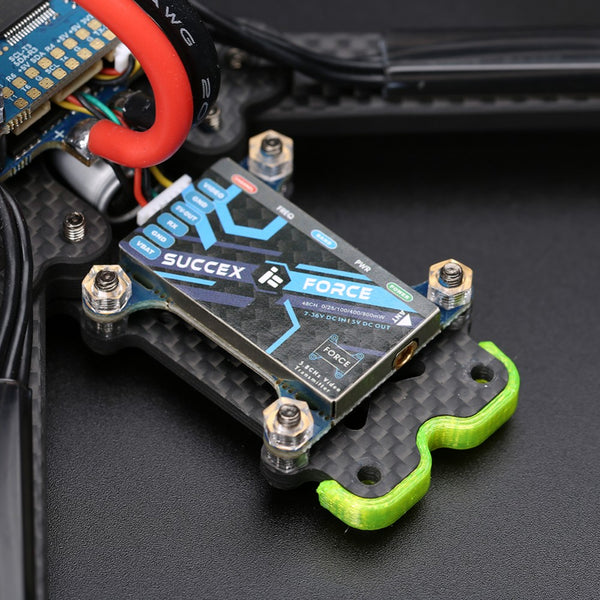

VTX:

• SucceX Force
• Stable output power
• Transmit power 4 gear switch: 25mW/200mW/400mW/800mW
• Output 48 frequency points

• Frequency lock fast, the boot does not interfere with companions
• Built-in output power self-check function
• Full format video format: NTSC /PAL
• Wide input voltage range: 7V～36V
• Low power consumption: +12V/380mA@800mW
• Small size: 36 x 36 x 3mm
• Mounting holes: 4-M3
• Lightweight: 0.25oz (7.2g) (excluding antenna)

Receiver Options:

• FrSky D8 R81
• FrSky D16 R-XSR v2.1
• FrSky D16 XM+

HELPFUL LINKS:

• Firmware/Factory Dumps
• Switching from Angle to Acro Mode

INCLUDES:

(1) iFlight Nazgul5 V2 Brushless FPV Drone w/ XM+, R-XSR v2.1, or R81-SPI Radio Receiver (select your option)

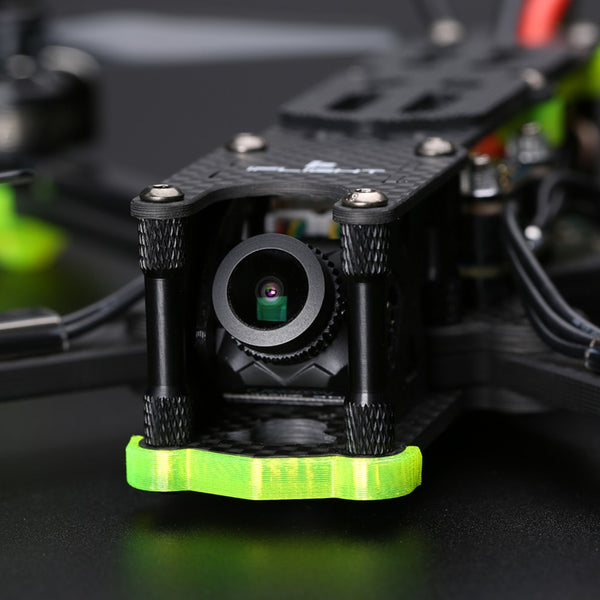

(1) RaceCam R1 Mini 1200TVL 2.1mm 19*19
(1) Albatross RHCP SMA 5.8g Antenna
(2) Sets x Nazgul 5 inch 3-blades (4CCW & 4CW - Color may vary)
(1) 20 x 200mm Microfiber PU Leather Battery Strap (Color May Vary)
(1) 20 x 250mm Microfiber PU Leather Battery Strap (Color May Vary)
