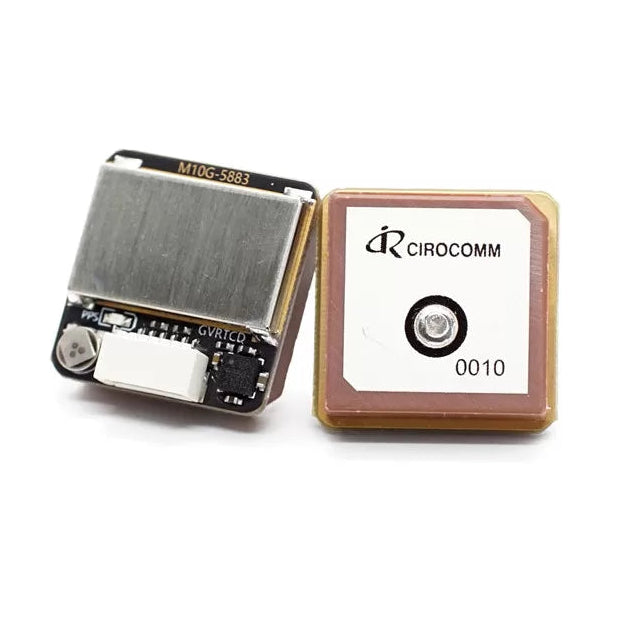

MicroAir M10G GPS w/ QMC5883L Compass Module

The M10G‑5883 GNSS module combines a u‑blox M10 receiver with a QMC5883L compass to deliver fast, accurate positioning in a compact 20×20×7.8 mm form factor. Supporting GPS, GLONASS, Galileo, and BeiDou with up to 32 satellites and a 5 Hz navigation rate, it offers strong performance thanks to its high‑gain 18×18×4 mm patch antenna and built‑in flash for saving configuration. With UART GPS output, I2C compass connectivity, and firmware compatibility across INAV, Betaflight, Ardupilot, and PX4, it’s a lightweight 7‑gram all‑in‑one solution for modern flight controllers.

FEATURES:

• u‑blox M10 GNSS — supports GPS, GLONASS, Galileo, and BeiDou for strong multi‑satellite performance.
• QMC5883L compass — integrated 3‑axis digital magnetometer for heading and orientation.

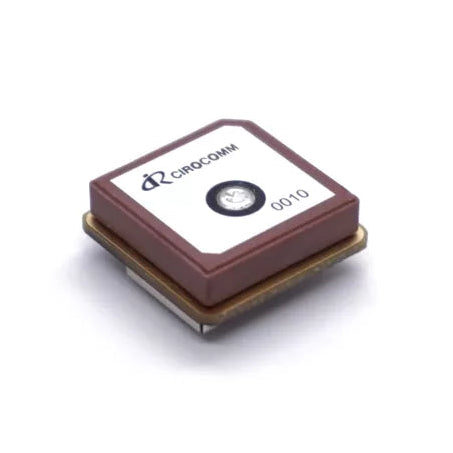

• High‑gain patch antenna — 18×18×4 mm ceramic antenna for fast satellite lock and stable reception.
• 32‑satellite tracking — improved accuracy and reliability in flight.
• 5 Hz update rate — rapid positional refresh for responsive navigation.
• Onboard flash memory — stores configuration directly on the module.
• UART + I2C outputs — simple integration with most flight controllers.
• Compact 7 g design — 20×20×7.8 mm form factor for small builds.
• Wide firmware compatibility — works with INAV, Betaflight, Ardupilot, and PX4

SPECIFICATIONS:

• GNSS Receiver: U-BLOX M10 (M10050)

• Magnetic Compass: QMC5883L

• Antenna: 18x18x4mm

• GNSS System Support: GPS L1 /CA; GLONASS L10F; BeiDou B1L/B1C; Galileo E1B/C; QZSS L1 C/A/S; SBAS L1 C/A

• Concurrent: 3 (GPS/BeiDou/Galileo(default) or GPS/GLONASS/Galileo), when Beidou B1L is turned off, it becomes possible to use 4 satellite systems at the same time: GPS+BeiDou(B1C)+GLONASS+Galileo

• Max Navigation rate: 5Hz

• Max satellite Num: 32

• Input Voltage: 5V

• Current: 30mA

• Output Interface(GPS): UART (3.3V LVTTL)

• Interface(Compass): I2C

• UART Baudrate: 115200(default)

• Output Protocol: UBX-PVT(default)

• PPS LED: Blue (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix)

INCLUDES:

(1) MicroAir M10G GPS w/ QMC5883L Compass Module
(1) 20cm SH1.0-6P Cable

NOTES:

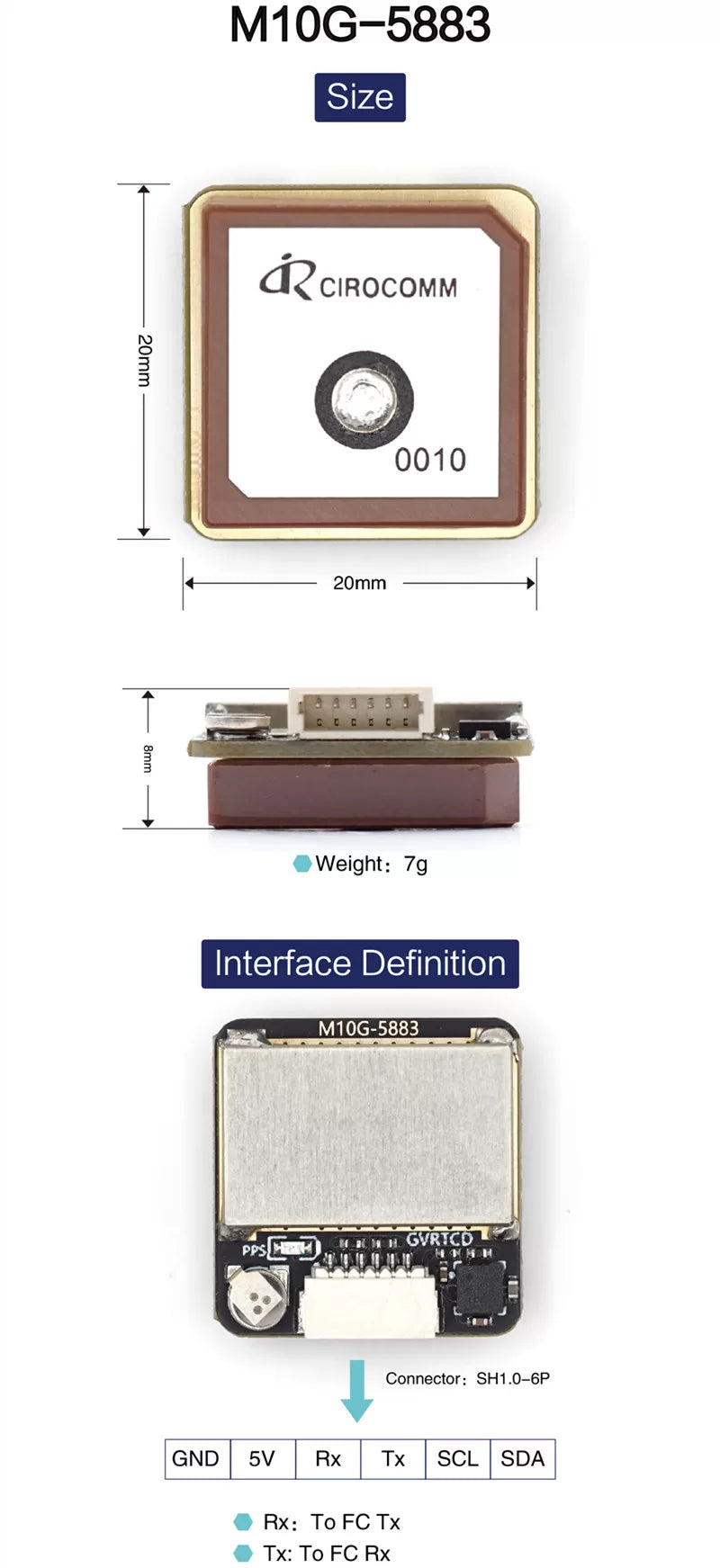

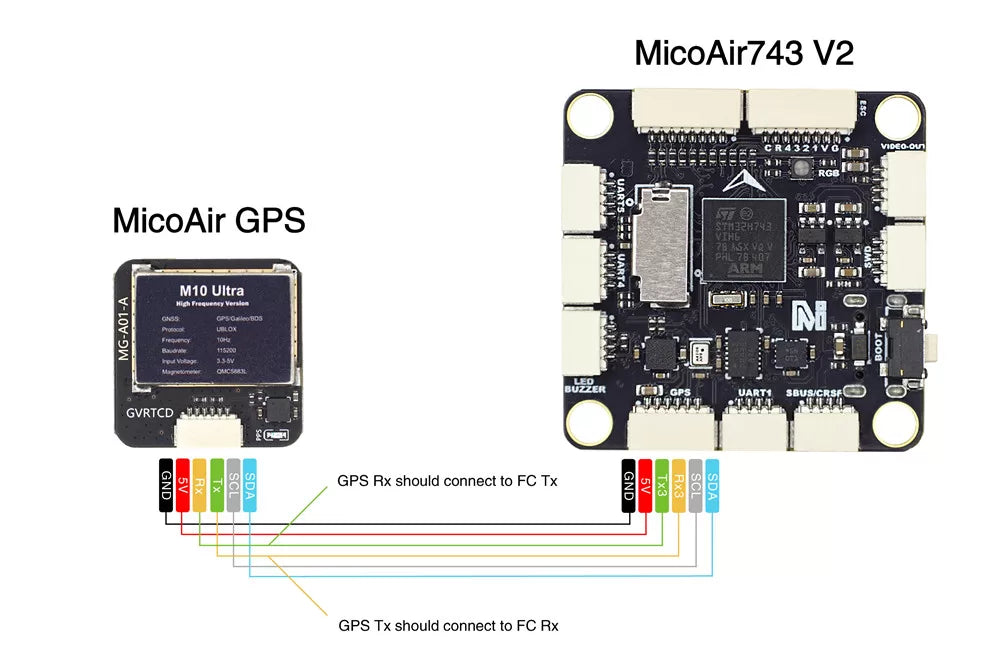

• See Images for pinout diagrams and more helpful info.

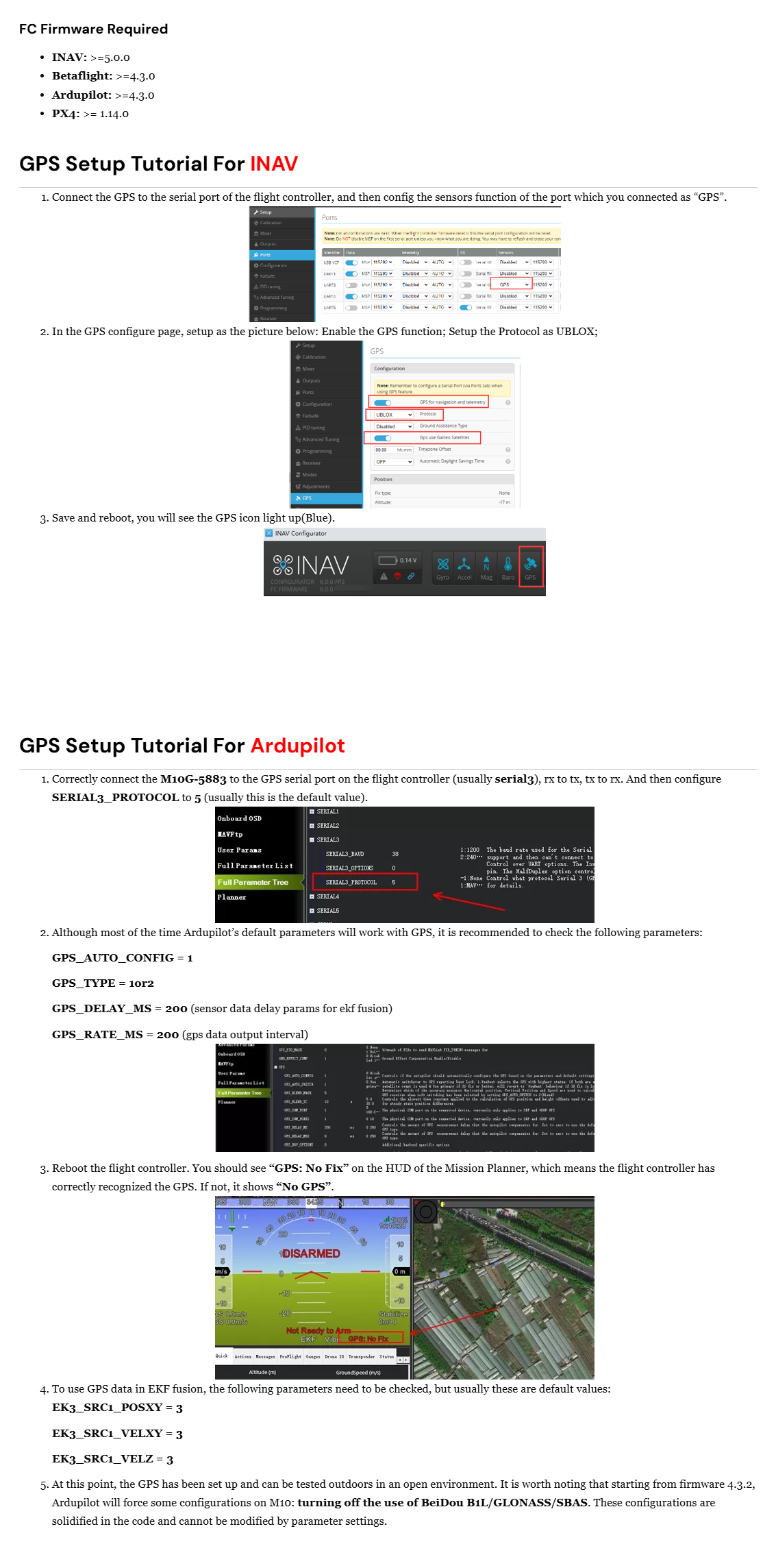

• Flight Controller Firmware Required:
  INAV: >=5.0.0 / Betaflight: >=4.3.0 / Ardupilot: >=4.3.0 / PX4: >= 1.14.0
