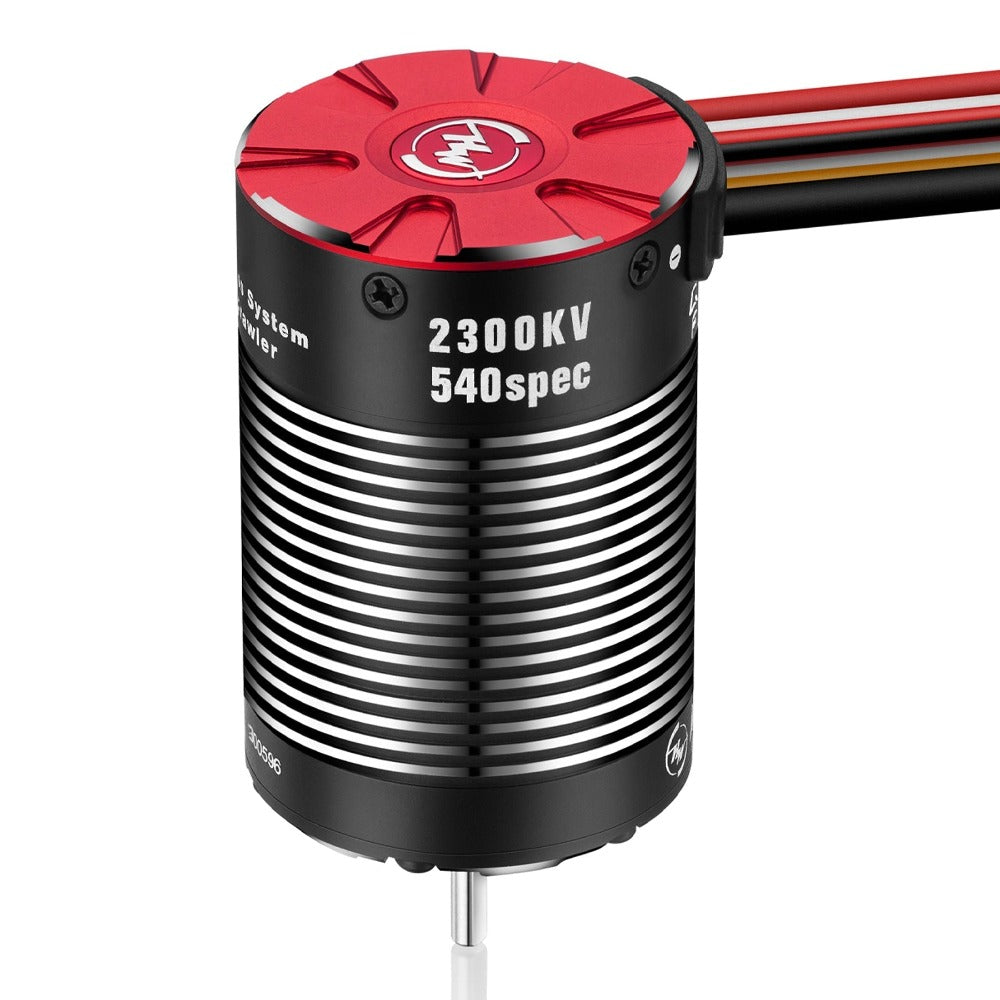

Introducing the new QuicRun Fusion Pro 2-in-1 FOC Motor system from Hobbywing. The integrated design of the ESC and the motor greatly reduces the overall volume and weight and makes the layout and wiring of the car frame simpler and more convenient. It features a brushless FOC system that provides you with strong torque and smooth running even at extremely low speeds.
FEATURES:
- Active drag brake force adjustment, providing unprecedented parking capacity on a slope.
- With a strong built-in switch mode BEC, the continuous current is up to 6A, and support switch between 6V and 7.4V, easy to drive various powerful steering servos and high-voltage steering servos.
- Multiple protection functions: battery low voltage protection, overheat protection, throttle lost protection, lock-up protection.
- Supports HOBBYWING LED program box to set ESC parameters and has an independent parameter setting interface, which is integrated with an electronic switch, making setting parameters more convenient.
- Intelligent torque output and speed closed-loop control, fully experience the cruise control and steep slope slow descent function of 1:1 vehicle, making the control handy.
SPECIFICATIONS:
- Part# 30120402
- Motor KV: 2300KV
- Cont./Peak Current: 60A/200A
- Input Voltage: 2-3S Lipo/6-9 Cell NiMH
- BEC Output Switch Mode: 6V/7.4V, 6A
- Input wires: Red-14AWG-330mm x1 / Black-14AWG-330mm x1
- Input connector: XT60 (factory installed)
- Programming Port: Independent programming interface(switch position
- Size: 37mm x 58mm (w/ wires+plug)
- Weight: 209g (w/ wires+plug)
- Shaft Diameter: 3.175mm / 16mm
- Motor Poles: 4
- Programming: LED Programmer (Sold separately)
HELPFUL LINKS:
INCLUDES:
(1) QuicRun Fusion Pro 540 / 2300KV 2-in-1 Brushless FOC System
