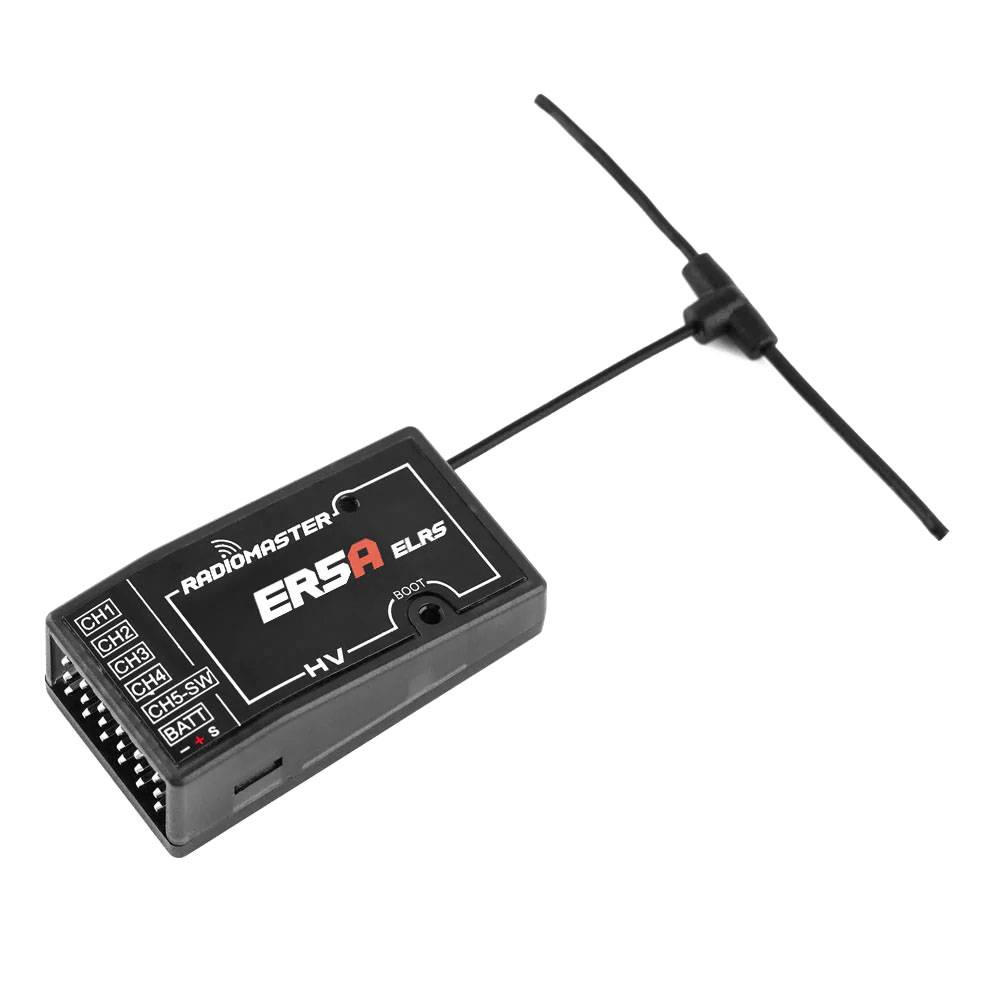

RadioMaster ER5A ExpressLRS PWM Receiver w/ Spare Long Antenna features a compact size and is easy to install. It's perfect for surface, marine, and air R/C applications. The ER5A supports 8.4V HV servos and accessories, and a robust injection-molded receiver casing. It has fast response speeds and incredible range. The RadioMaster ER5A Receiver supports 4 proportional and 1 switch channel (ExpressLRS 2.x) or 5 proportional channels (ExpressLRS 3.x).
COMPATIBILITY:
- ExpressLRS Radio Transmitters
SPECIFICATIONS:
- Item# HP0157-ER5A
- Item: ER5A 2.4GHz Receiver
- Power supply: DC 4.5-8.4V
- Antenna type: high sensitivity T-shape antenna
- Wireless Protocol: ELRS 2.0 pre-installed
- Output channel: CH1-4 standard PWM; CH5 switch (ON/OFF) PWM
- Weight: 6.6 grams
- Size: 37 x 19 x 13mm
HELPFUL LINKS:
INCLUDES:

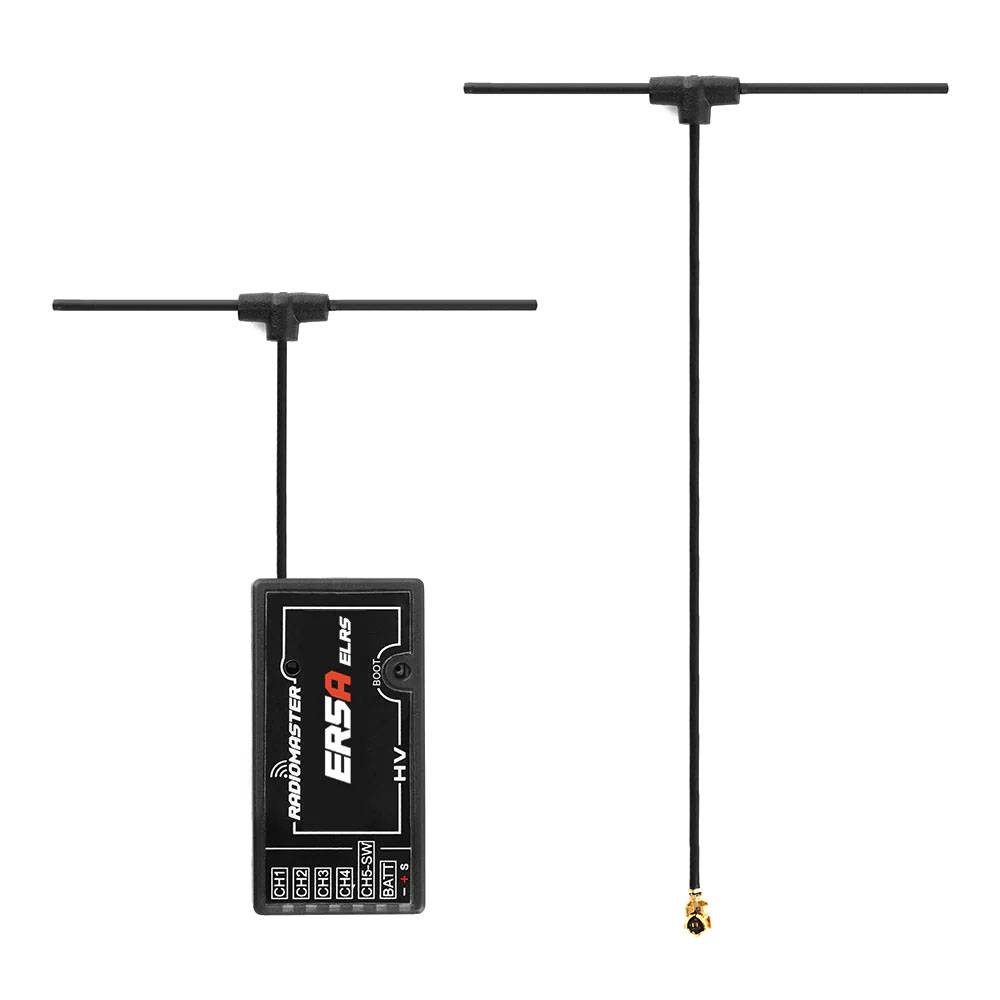

(1) ER5A ELRS PWM Receiver
(1) Spare Long Antenna
