SKU: 05229014

RadioMaster Ranger Nano 2.4GHZ ELRS RF Module

$69.99

RadioMaster Ranger Nano 2.4GHZ ELRS RF Module

Introducing the Ranger Nano Module. Featuring up to 1W output, F-1000Hz refresh rates, and a high-efficiency cooling system, the Ranger Nano 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (RadioMaster Zorro and more ) to enjoy all that ELRS has to offer.

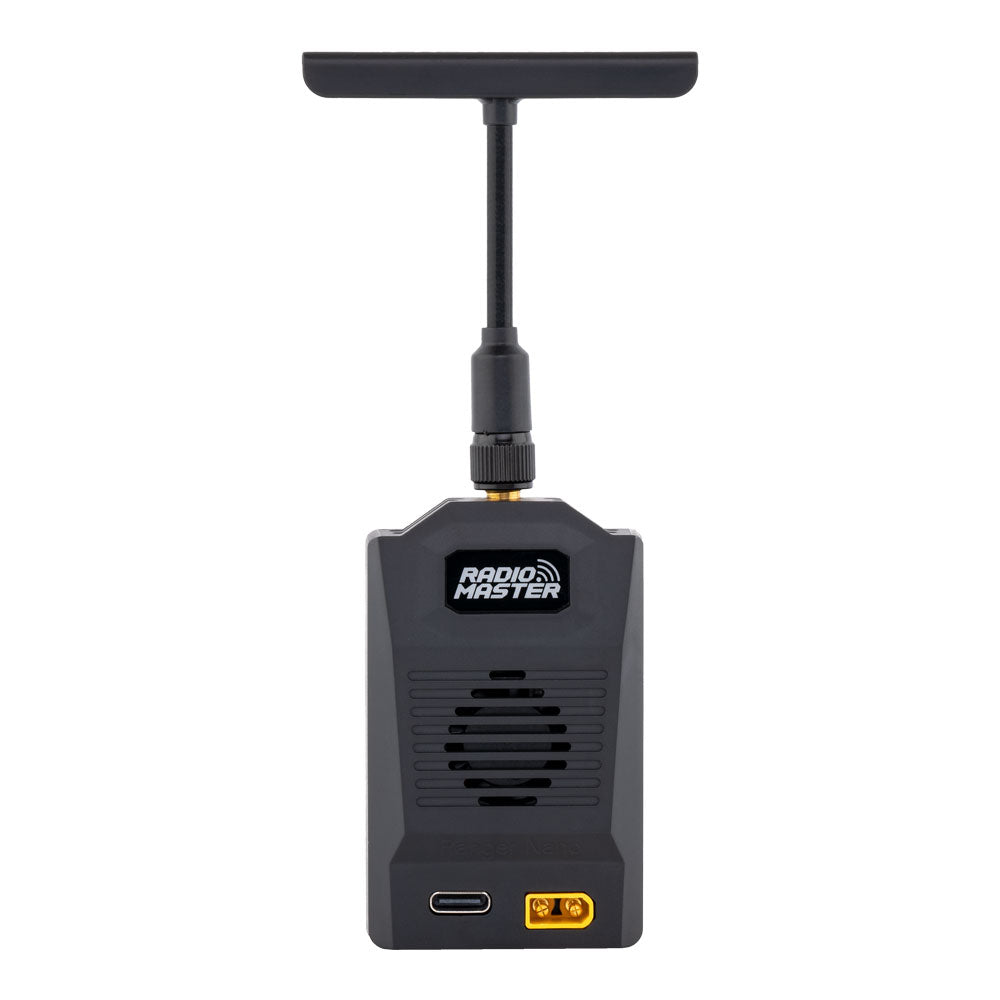

The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.



FEATURES:

  • High-efficiency cooling system
  • Wi-Fi and Bluetooth support
  • Packet rates up to F-1000Hz
  • Up to 1Watt Power output
  • T-antenna included
  • With the Nano connector, support Zorro radio



SPECIFICATIONS:

  • Part#: HP057.0035
  • Regulatory Domain: ISM2400
  • MCU: ESP32(main), ESP8285(aux,as ESP backpack)
  • RF chip: SX1281IMLTRT
  • Frequency Range: 2400 MHz - 2480 MHz
  • Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
  • Minimum receiver refresh rate: 25Hz
  • RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)
  • Wifi Support: Yes
  • Bluetooth support: Yes

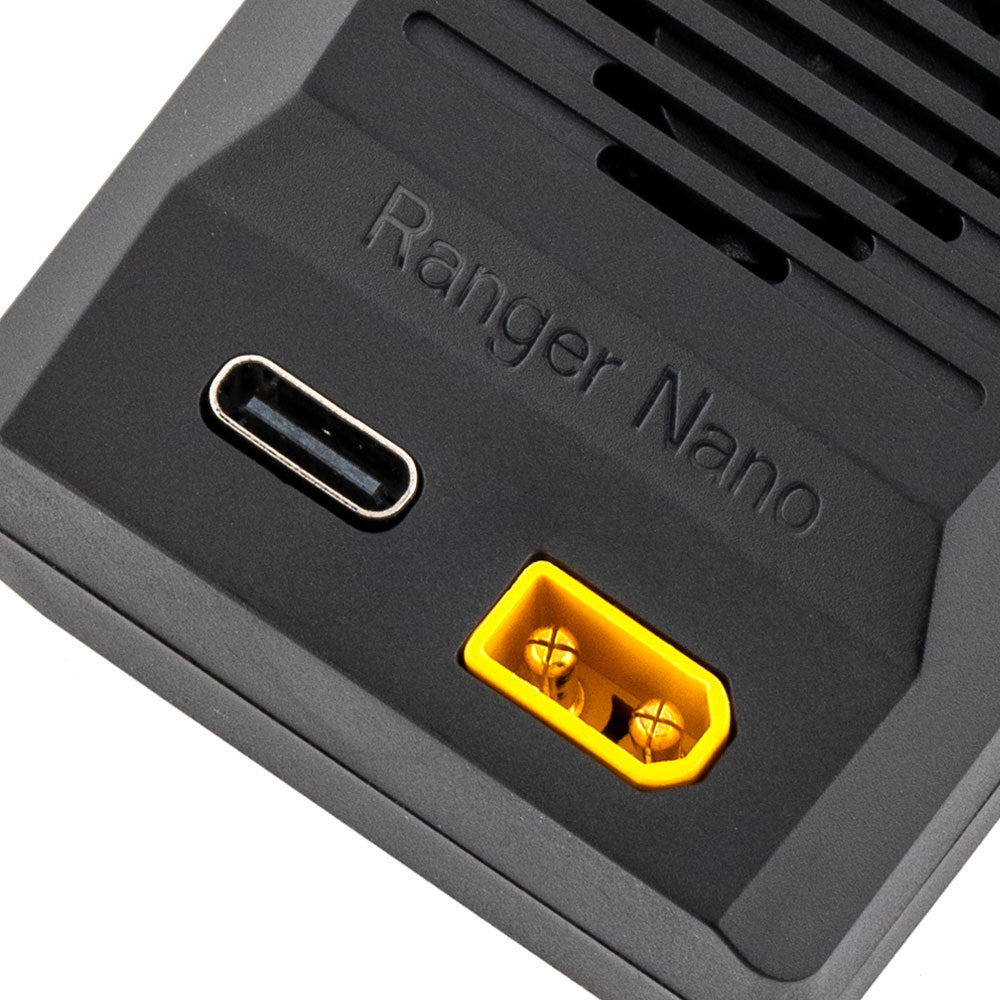

  • XT30 Power supply voltage: DC 6V - 16.8V
  • Weight: 48g (with antenna) / 39g (without antenna)
  • Dimension: 136 x 42 x 26mm (with T antenna) / 74 x 42 x 26mm (without antenna)



INCLUDES:

(1) Ranger Nano Module
(1) T Antenna



NOTES:

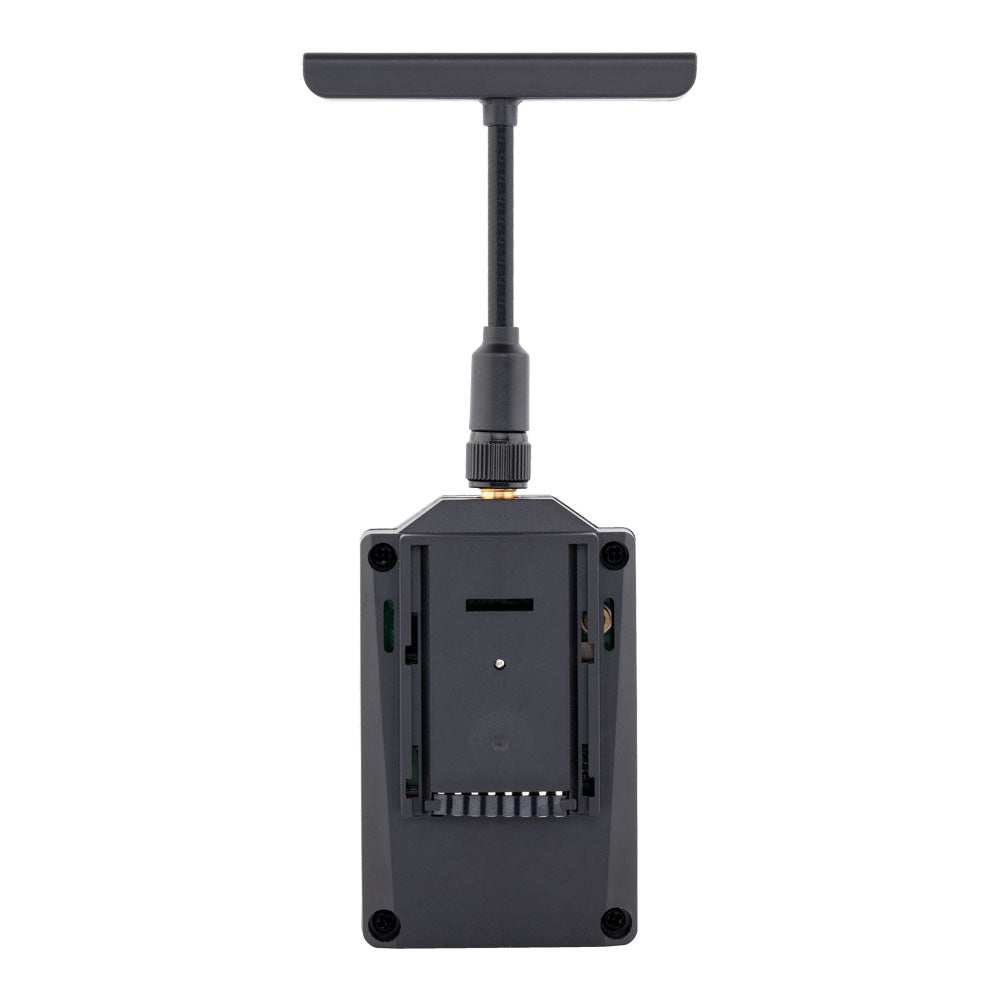

  • The Ranger Nano 2.4GHz ELRS Module fits Nano module bays, for JR style/Micro connectors, please consider the Ranger and Ranger Micro Modules.
