The best just got better! Introducing the TX16S Mark II, the ultimate open-source radio. It works with multiple radio frequency (RF) protocols, plus it has expandability and upgradeability for the future, including the Touch panel which will support future touch-compatible versions of OpenTX/EdgeTX firmware and UART expansion slots.
The Radiomaster TX16S comes with super smooth precision hall-sensor gimbals with CNC facias, offering a refined look and great performance. It also has a built-in USB-C charger, class-leading ergonomics, internal multi-protocol modules as the standard, along with improved key layout, menu navigation, and sliders. Suitable for RC drones, airplanes, fixed-wing, and more!
Plus, the RadioMaster internal RF module will support firmware updates directly from the Radio's operating system, without having to worry about any complicated update procedures.
FEATURES:
- Improved internal circuitry and optimized power supply.
- New charge circuitry with integrated reverse-polarity protection.
- Optimized charge IC now allows up to 2.2A internal USB-C charge current.

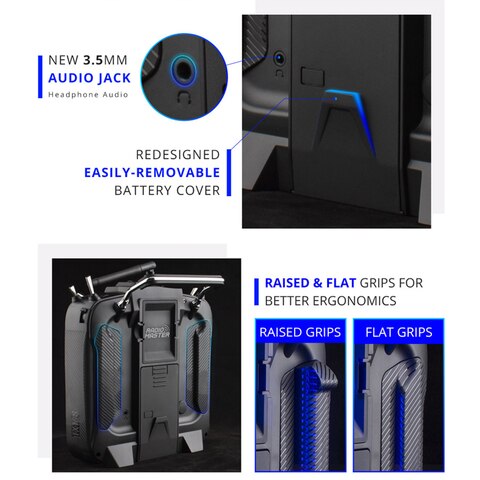

- Rear-mounted audio jack provided headphone output.
- V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).
- Optional high/low rear grips are included for improved ergonomics.
- Improved S1/S2 knobs with clear center-detents.
- Improved LS/RS Sliders with smoother feel and better center-detents.
- Redesigned battery cover for improved battery access.
- Retooled body shell with improved fit and finish.
- Trainer socket changed to standard TRS 3.5mm socket.
- Rear DIY Socket added for personalized mods.
- Improved internal plastics for better longevity.
- Works with TBS Crossfire, TBS Tracer, ExpressLRS, ImmersionRC Ghost & more via external JR module bay. External modules sold separately.
- FrSky
- DSM/DSMX
- FlySky
- FlySky AFHDS2A
- Walkera Devo
- Futabas SFHSS
- Hubsan
- HiSky, Syma, ASSAN and most other Chinese models (see full list here)
REQUIRED:
(2) 18650 Li-Ion Batteries (tray included for this size battery)
Alternate Battery Options:
(2) 21700 1S Li-Ion Batteries (tray sold separately)
(1) 21700 7.4v 2S Li-Ion Pack with 3-Pin JST-XH Connector
(1) 7.4v 2s Li-Po Battery Pack with 3-Pin JST-XH Connector
SPECIFICATIONS:

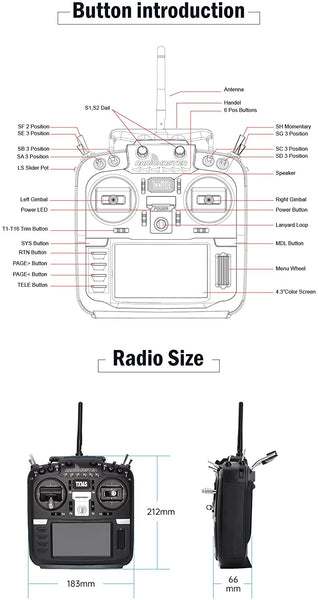

- Size: 287x129x184mm
- Weight: 750g (without battery)
- Transmission frequency: 2.400GHz-2.480GHz

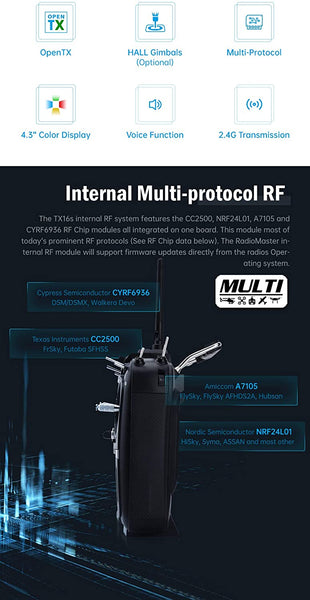

- Transmitter module: Option 1: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401)
- Transmitting power: Internal 4-in-1 multi-protocol module : Max 100mw (protocol dependent)
- SD card: 256MB by default, 8GB maximum
- Antenna gain: 2db (transmit power adjustable)
- Working current: 400mA
- Working voltage: 6.6-8.4v DC
- Remote control distance:> 2km @ 22dbm
- Radio firmware: EdgeTX
- Module Firmware: Multiprotocol- Module (4IN1)
- Channels: Up to 16 channels (depending on the receiver)

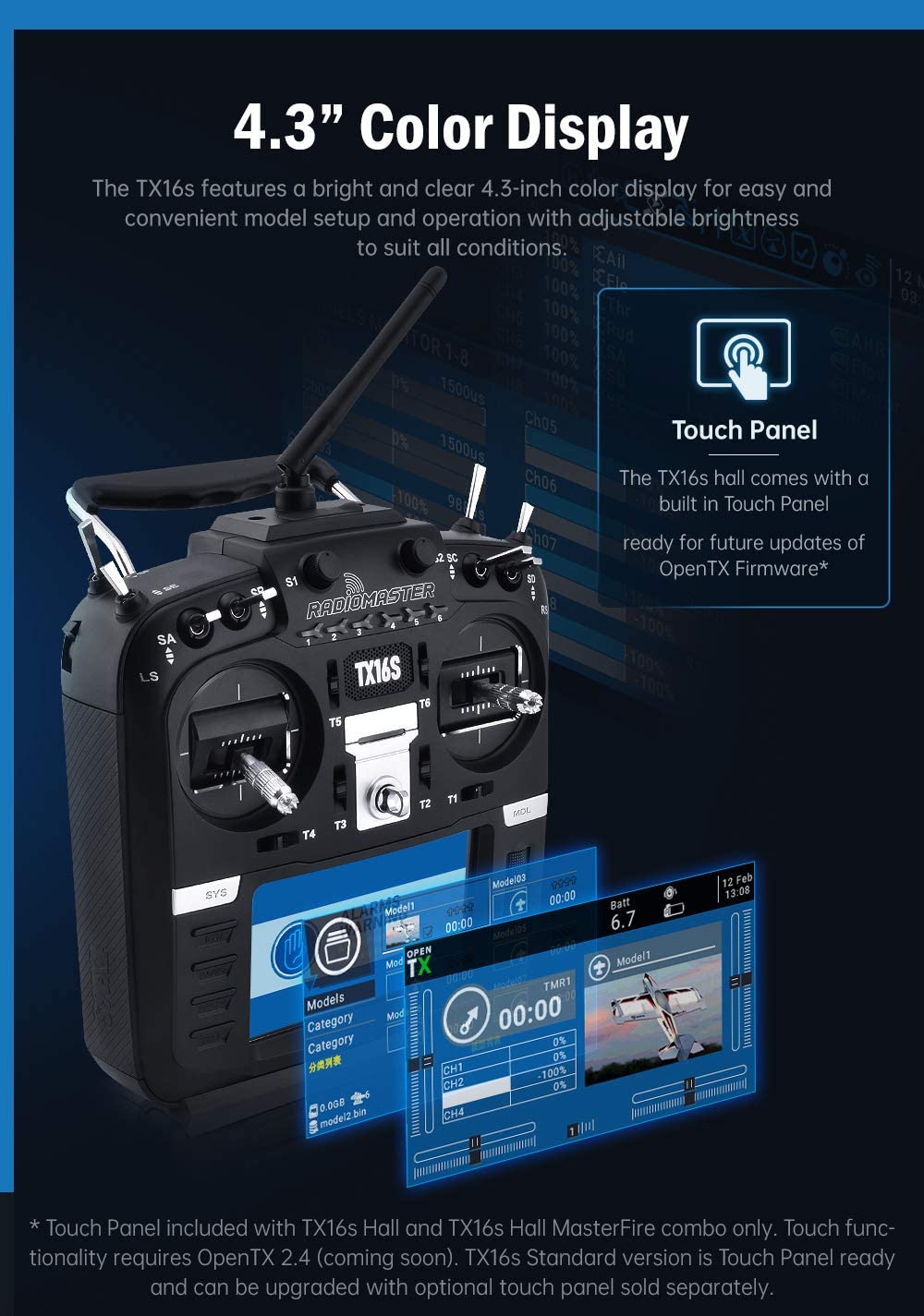

- Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
- Gimbal: Option 1: V4.0 Hall sensor with Aluminium fascia; Option 2: AG01 CNC Hall sensor
- Module Bay: JR compatible module bay
- Upgrade method: Supports USB-C online / SD card offline upgrade
- DSM/DSMX, Walkera Devo
- FrSky, Futabas SFHSS
- FlySky, FlySky AFHDS2A, Hubsan
- HiSky, Syma, ASSAN, and most other Chinese models
HELPFUL LINKS:
- RadioMaster TX16S User Manual
- Multi-Module Info
- Receiver Protocol Compatibility List
- OpenTX Firmware

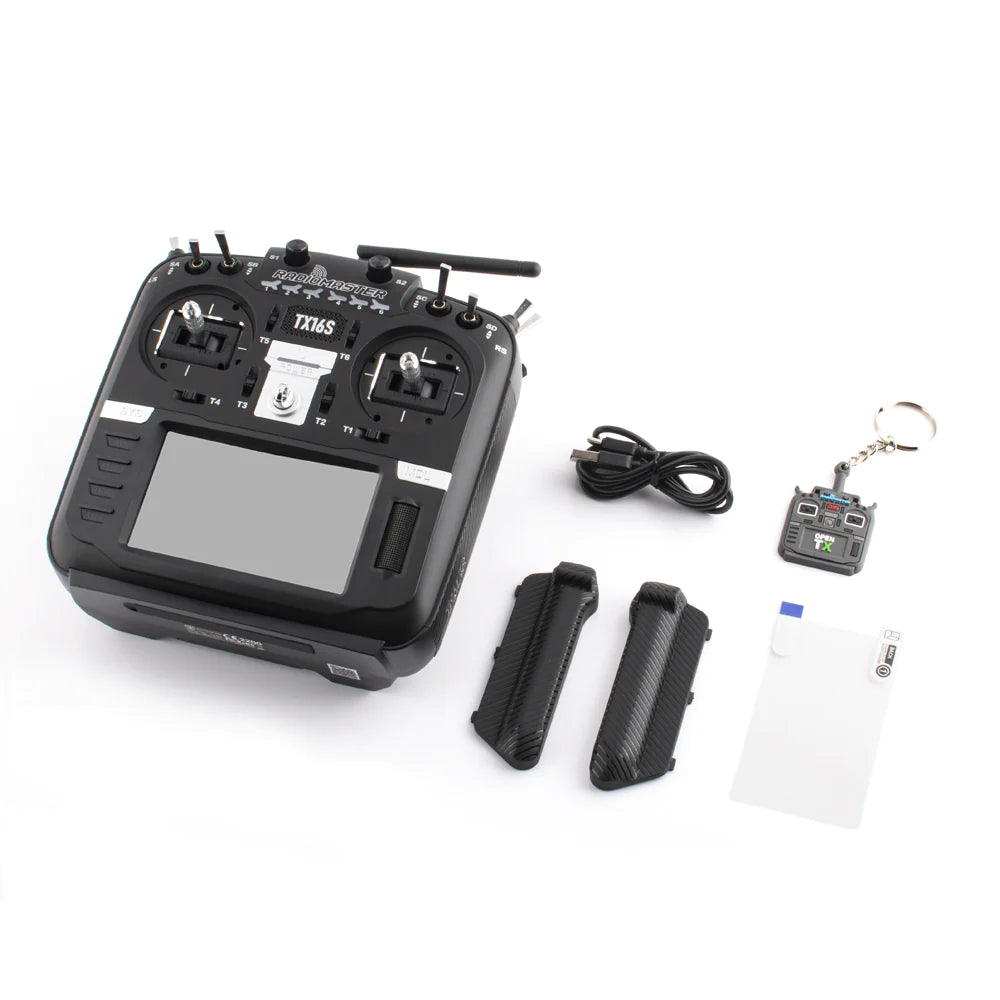

(1) TX16S Mark II Radio Controller
(1) 18650 Tray
(1) USB-C Cable
(1) Screen Protector
(1) pair of flat grips
(1) pair of raised grips (installed on radio by default)
(1) TX16S Key Chain
- Computer port for simulator use and/or firmware updates is on the top of the Transmitter while the charging port is on the bottom of the Transmitter.
