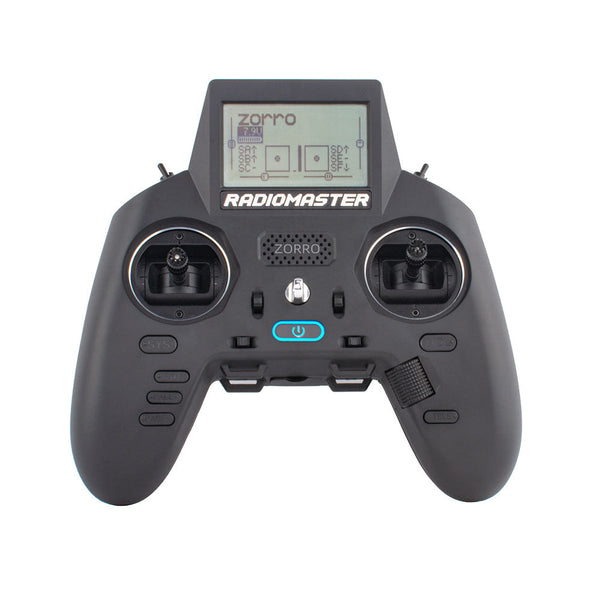

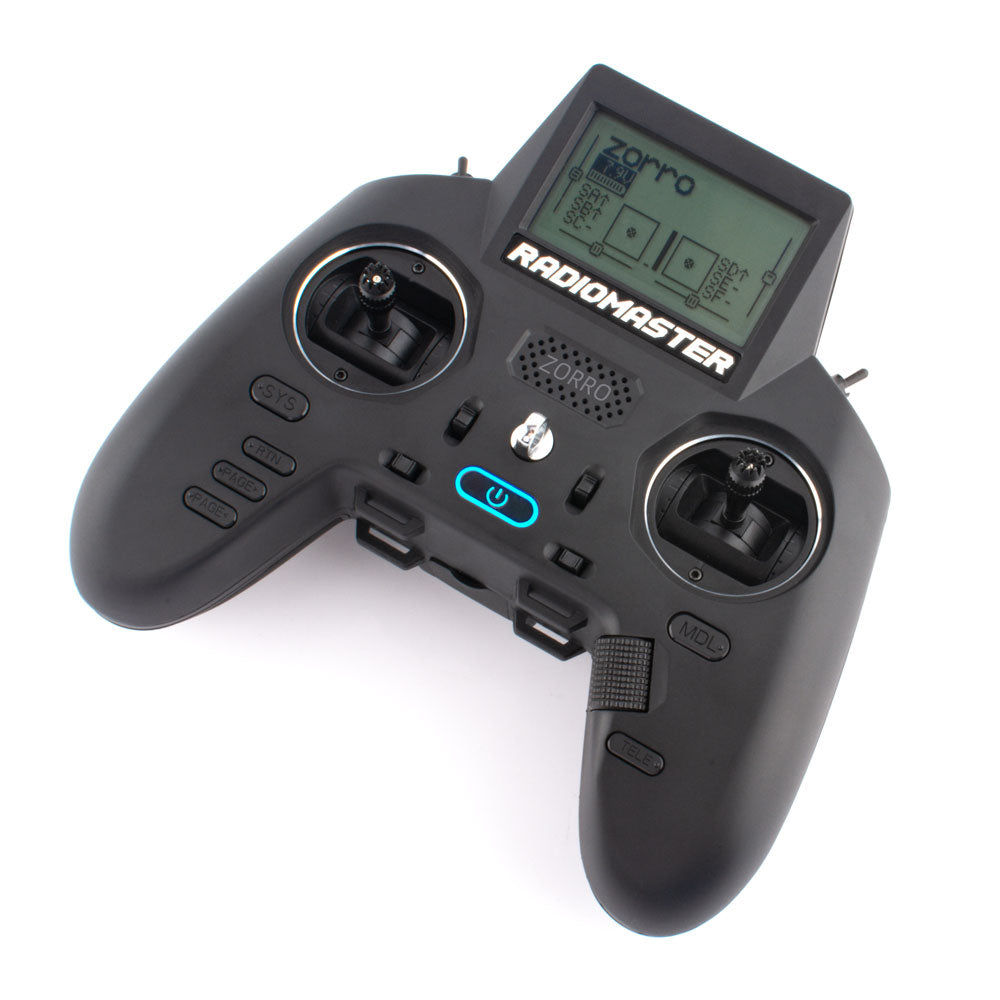

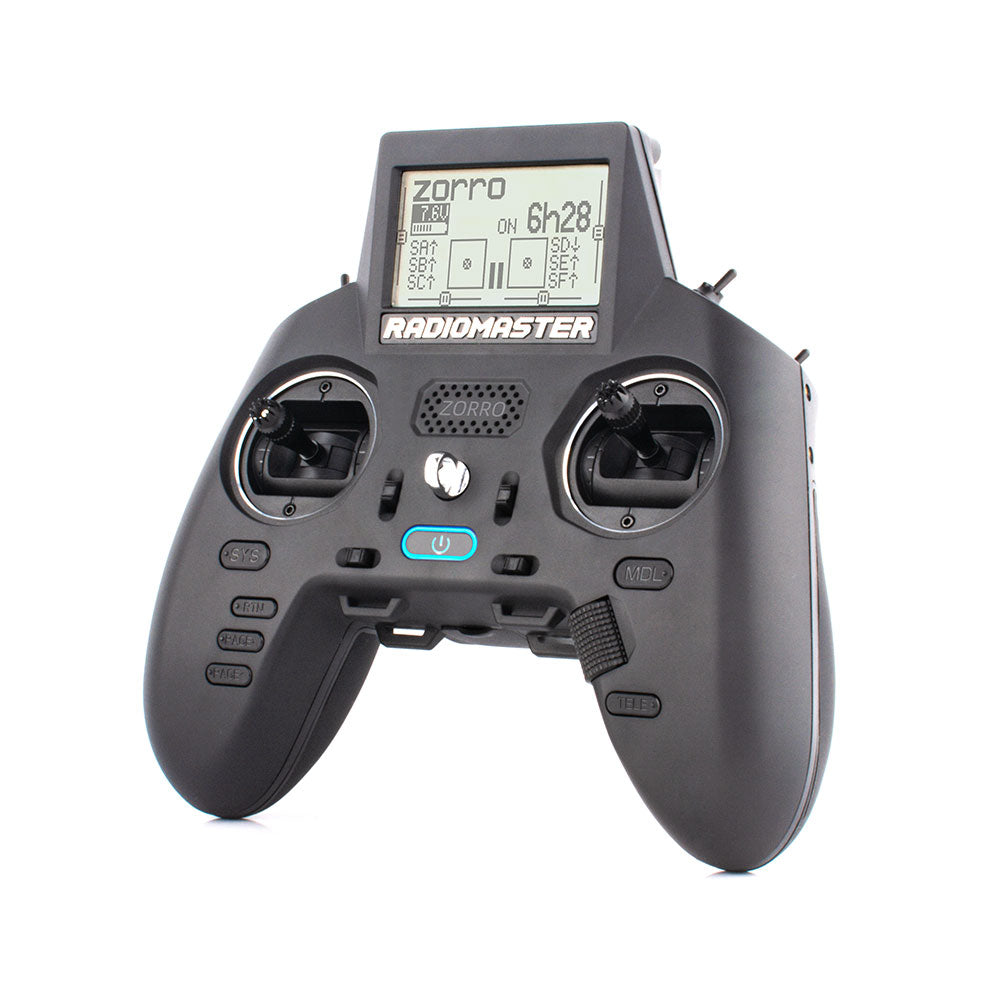

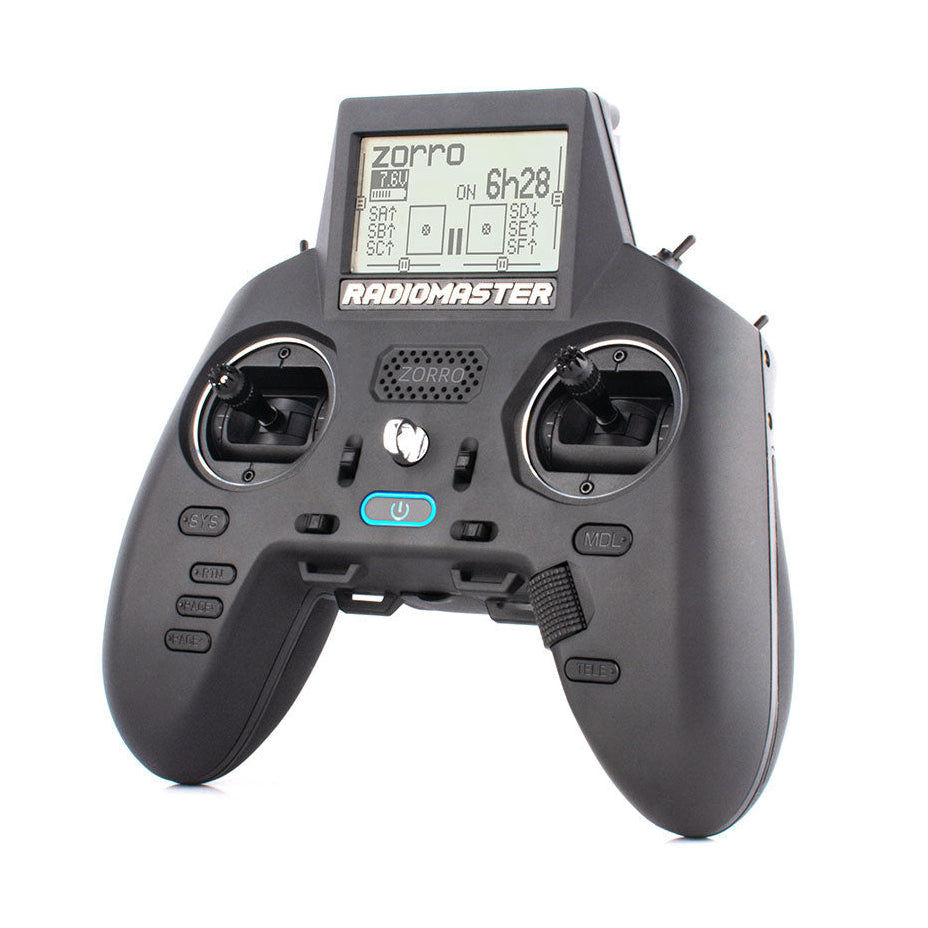

RadioMaster Zorro Radio Transmitter (Hall Sensor Gimbals / 4-in-1 or ELRS Version)

Introducing the new Zorro gamepad-style RC transmitter from RadioMaster, featuring an ergonomic design, and a large, bright LCD screen in the perfect viewing position.



The 4-In-1 version is a great choice for FPV pilots looking to try many different protocols. This transmitter also officially supports OPENTX and EDGETX firmware. The ELRS version is also a good option for FPV pilots interested in getting a low-latency signal with a slightly longer range than traditional 2.4GHz signals. Plus, ELRS receivers are very cost-effective in comparison to some other receivers.



With either choice, the RadioMaster Zorro is set to change the game once again.



FEATURES:

• Adjustable Hall Sensor gimbals
• A nano-size external RF module bay
• Built-in USB-C Charging
• Headphone audio output
• USB-C Data port for updating and playing simulators
• Will fit nano-sized modules



• FrSky
• DSM/DSMX
• FlySky
• FlySky AFHDS2A
• Walkera Devo
• Futabas SFHSS

• Hubsan

• HiSky, Syma, ASSAN and most other Chinese models (see full list here)



• ExpressLRS



Modules for Both Versions:

• Nano

REQUIRED:

(2) 18350 Batteries (Internal)

or

(1) 2S LiPo (External)
*Optional



SPECIFICATIONS:

• Dimensions: 7" x 6" x 4" (170 x 159 x 108mm)

• Weight: 12oz (350g)
• Operating Frequency: 2.400GHz-2.480GHz
• Internal RF Options: 4-in-1 Multi-Protocol or ELRS (*Select Your Option)
• Supported Protocols: Module dependent

• Module Bay: Nano Size
• RF Power: 4-In-1 20dBm max
• Antenna Type/Gain: Folding/2db
• Operational Current: 160mA@8.4V
• Operational Voltage: 6.6-8.4v DC
• Control Distance: >2km @ 20dbm
• Operating System: OpenTX / EdgeTX Compatible
• Control Channels: Maximum 16 (Rx Dependent)
• Display: 128x64mm Monochrome LCD
• Battery Recommendations: (2) 18350 Batteries (Internal) and/or (1) 2S LiPo (External). *Batteries Not Included.
• Charging: Bottom Built-in USB-C Charging
• Gimbal: Hall-Effect
• Firmware Upgrade Method: Via USB or SD Card
• RF Chip Data:
  - Cypress Semiconductor CYRF6936 Chip: DSM/DSMX, Walkera Devo
  - Texas Instruments CC2500 Chip: FrSky, Futabas SFHSS
  - Amiccom A7105 Chip: FlySky, FlySky AFHDS2A, Hubsan
  - Nordic Semiconductor NRF24L01 Chip: HiSky, Syma, ASSAN, and most other Chinese models



HELPFUL LINKS:

• Zorro Radio User Manual
• Zorro Radio Quick Start Guide



INCLUDES:

(1) RadioMaster Zorro Radio Transmitter (Hall / 4-in-1 Version)



MORE INFO:

Support OPENTX & EDGETX

Switchable in Mode 1 and Mode 2

Zorro radio supports switching between Mode 1 and Mode 2 without disassembly. The default factory mode is Mode 2.

Adjustable Hall Gimbals

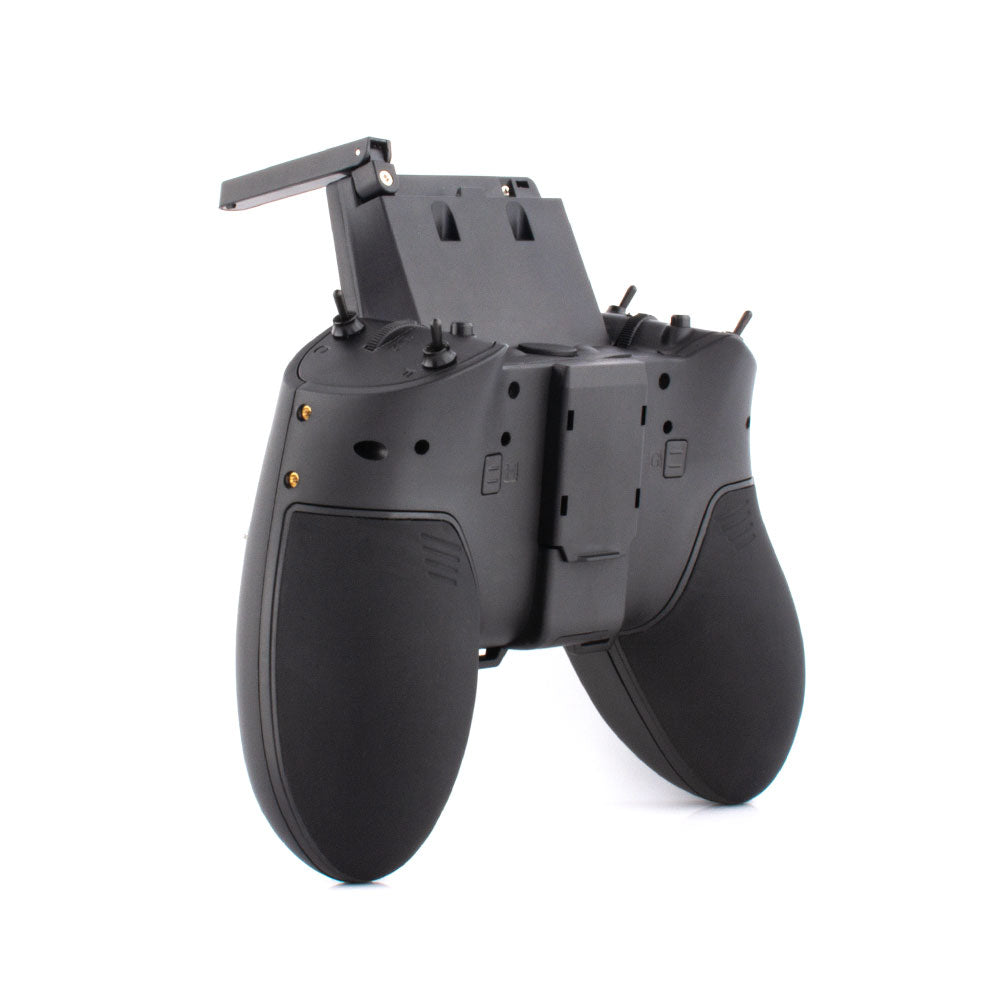

External Module Bay

Zorro Radio is with an external module bay for use with Crossfire / ELRS and other compatible modules.

18350 Battery Compartments

Battery Charging

• Supports USB-C Directing Charging

• Supports External 2S Battery Power Supply

Oversized LCD & Foldable Antenna

 DIY Attachment Points

Ergonomically Designed
