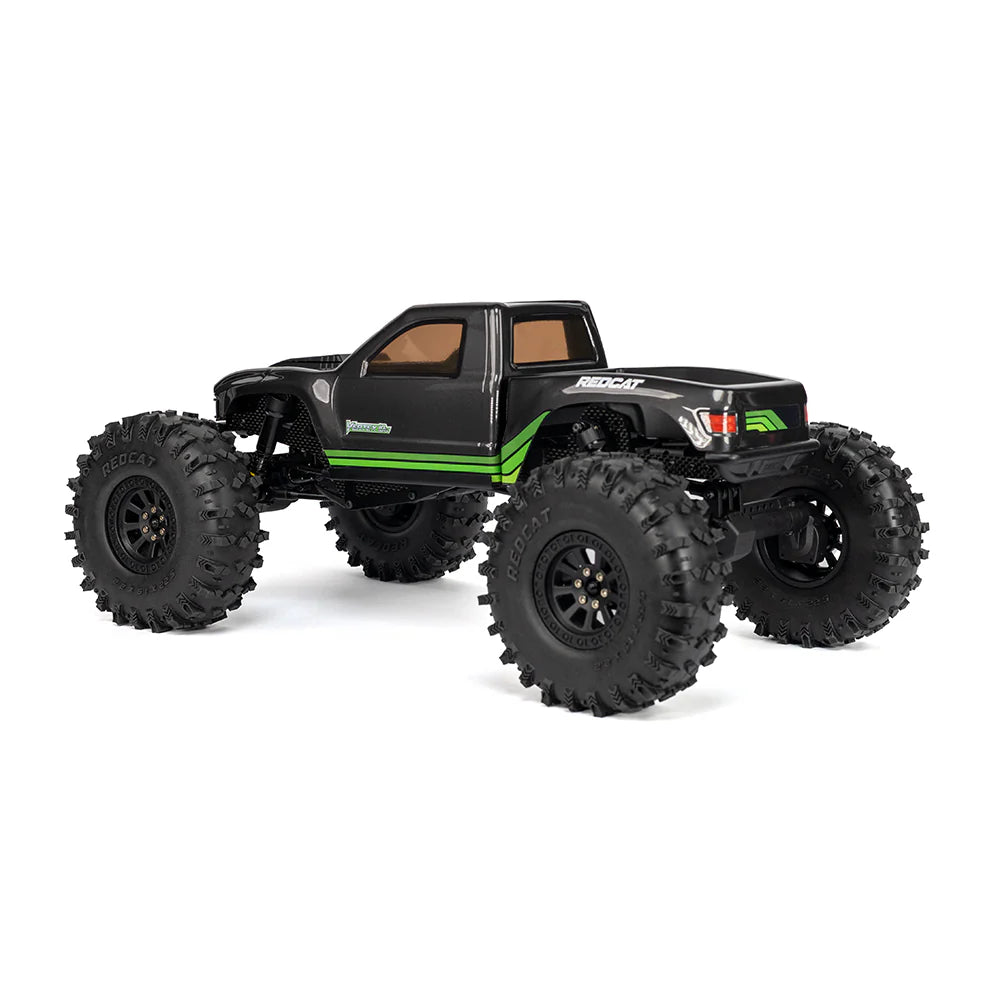

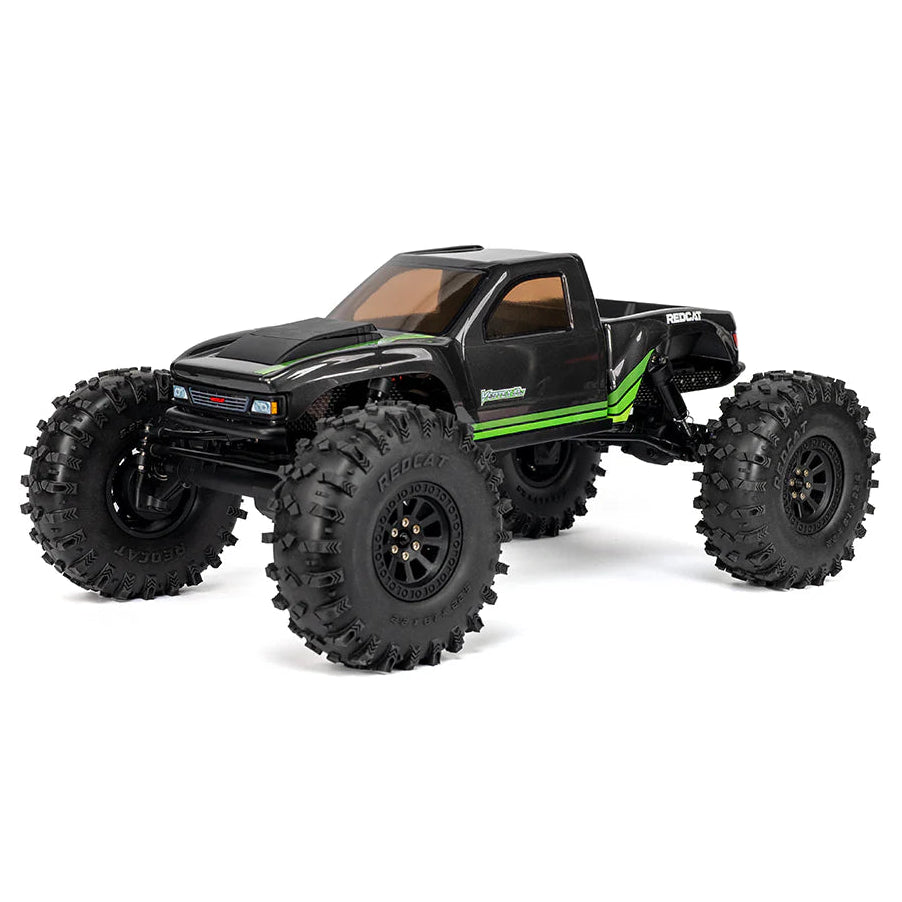

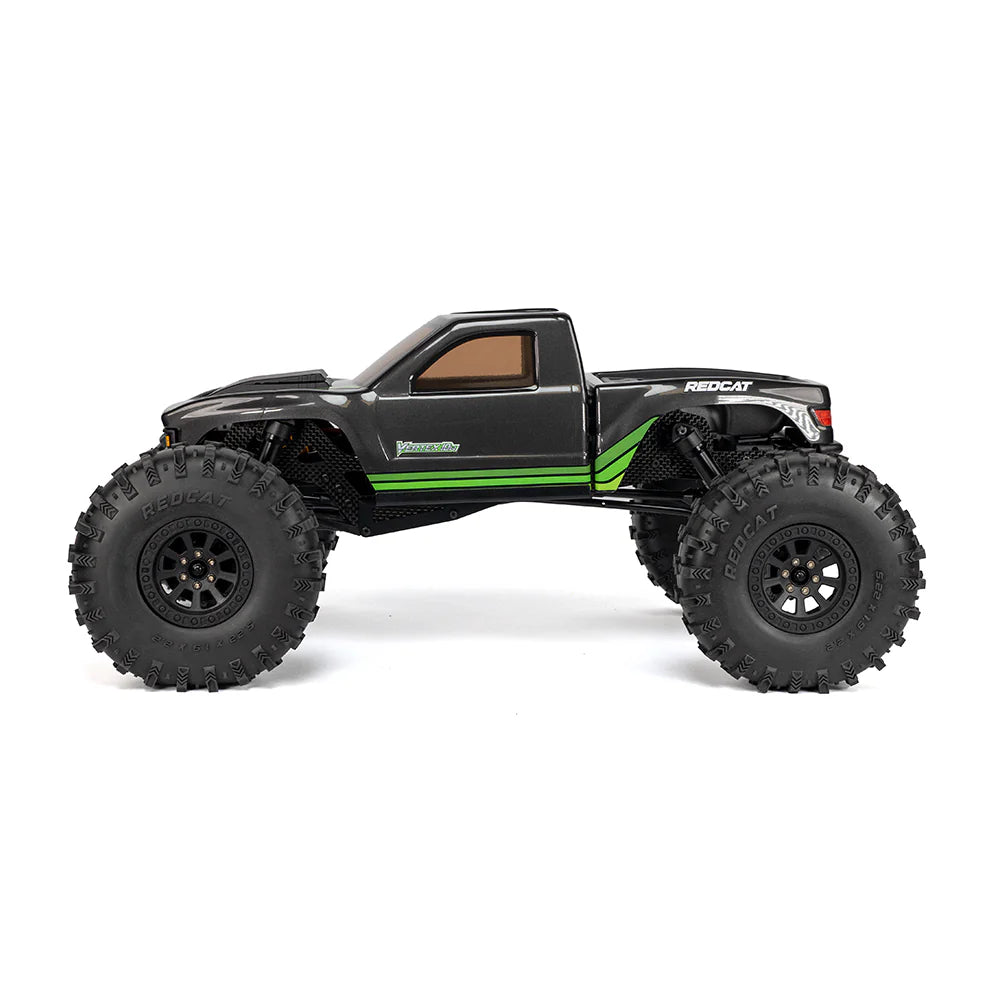

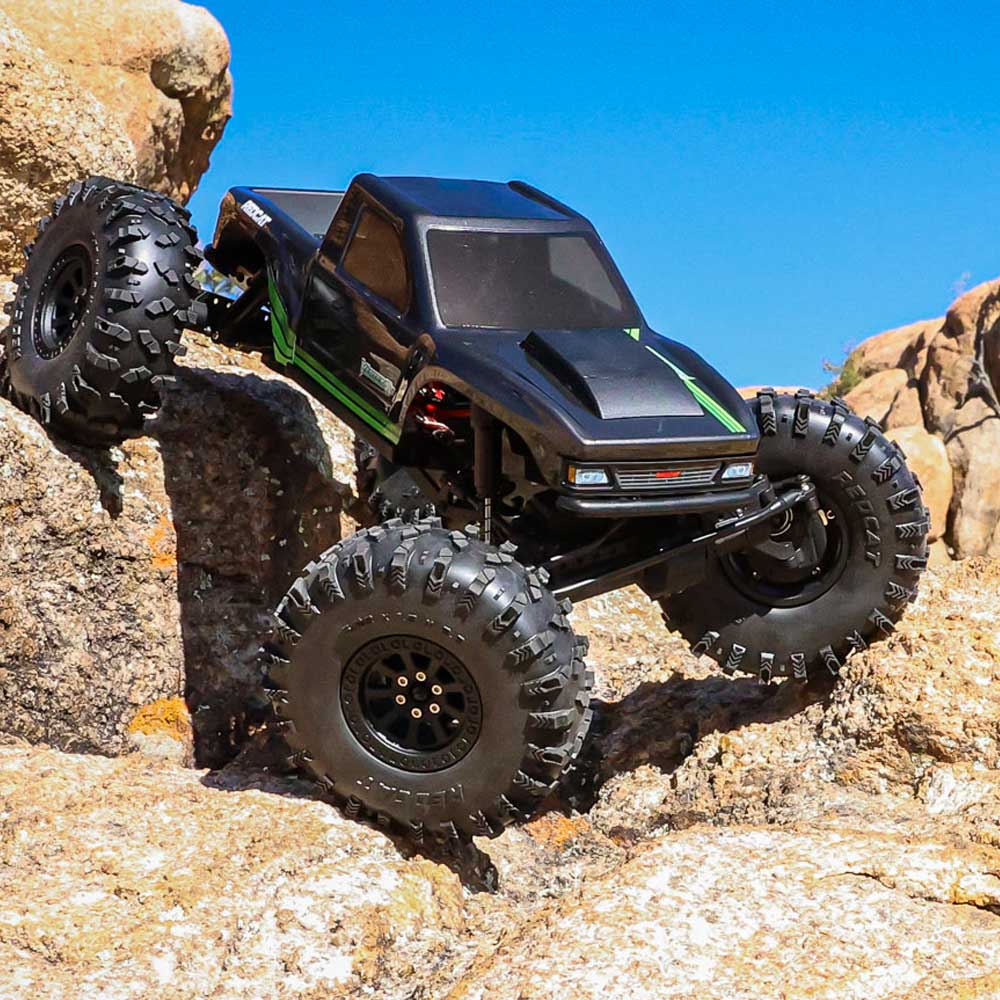

Redcat 1/10 Vertex 10W 4WD Electric Rock Crawler (Brushless / ARR)

The Redcat Vertex 10W is a 1/10‑scale brushless rock crawler built for drivers who want serious capability right out of the box. Its powerful brushless system delivers smooth, efficient torque for technical climbs, while the locked differentials and high‑articulation suspension keep traction steady across uneven terrain. A durable chassis, waterproof electronics, and scale‑inspired details make the Vertex 10W both rugged and visually striking. Whether you're exploring trails or tackling challenging rock sections, this crawler offers dependable performance and an exciting, ready‑to‑run experience.

FEATURES:

• Brushless Power System — Efficient, high‑torque brushless motor for smooth low‑speed control and strong climbing performance.

• 4WD Drivetrain — Full‑time four‑wheel drive for maximum traction on rocks, trails, and uneven terrain.

• SOA Steering — Servo‑on‑axle setup for increased steering authority and precision during technical crawling.

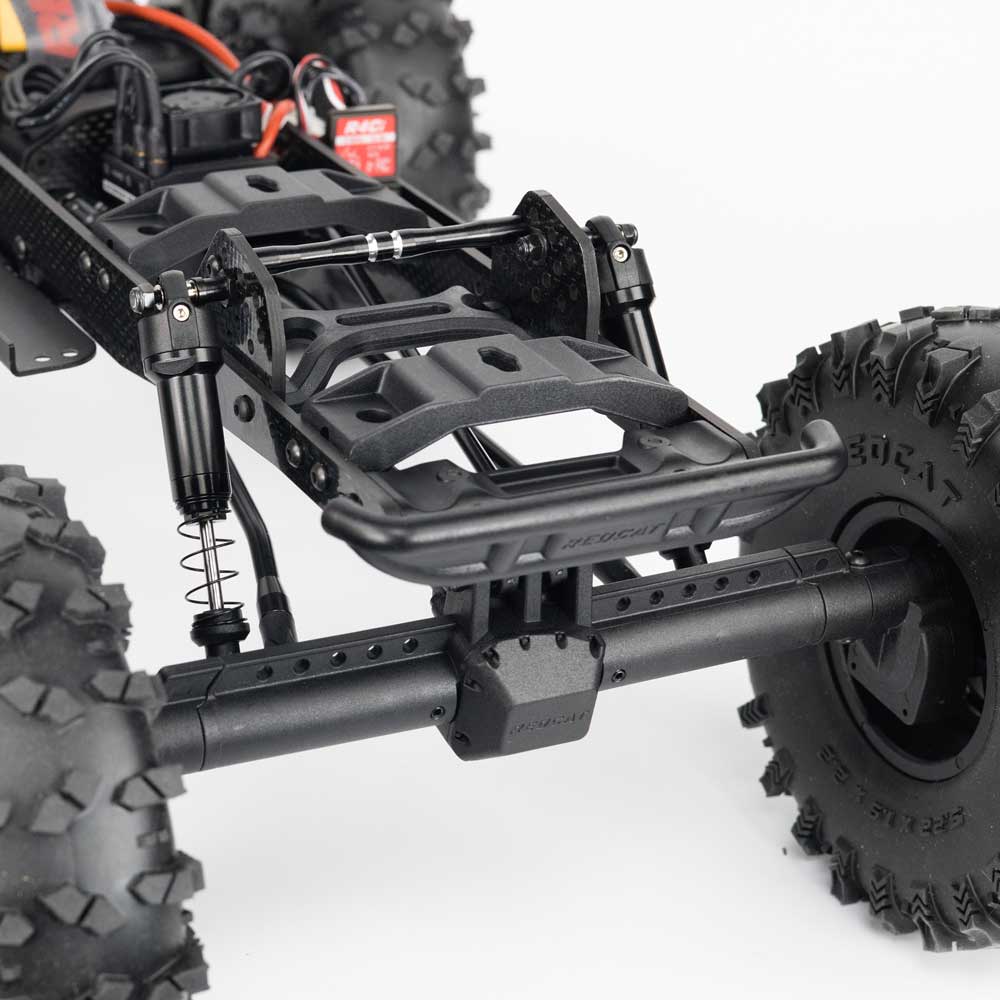

• High‑Articulation Suspension — 4‑link suspension designed for comp‑level flex and stability.

• Carbon‑Fiber Chassis — Lightweight 3mm carbon‑fiber chassis engineered for strength and competitive crawling geometry.

• Locked Differentials — Front and rear locked diffs for consistent traction on steep or uneven surfaces.

• Waterproof Electronics — Electronics protected for wet conditions and outdoor trail use.

• RTR Package — Ready‑to‑run with 2.4GHz radio system included (battery and charger not included).

• Multiple Color Options — Available in Dark Grey, Electric Green, and other variants depending on retailer.

• Wide‑Axle Option — Some retailers offer +24mm wide‑axle versions for increased stability.

REQUIRED:

(1) 2S-3S LiPo Battery
(1) LiPo Battery Charger
(4) AA Batteries for Transmitter

SPECIFICATIONS:

• Model#: RER43503
• Vehicle Scale: 1/10

• Width (Hex‑Hex): 228mm

• Wheelbase: 330mm (12.99")

• Chassis: 3mm carbon fiber

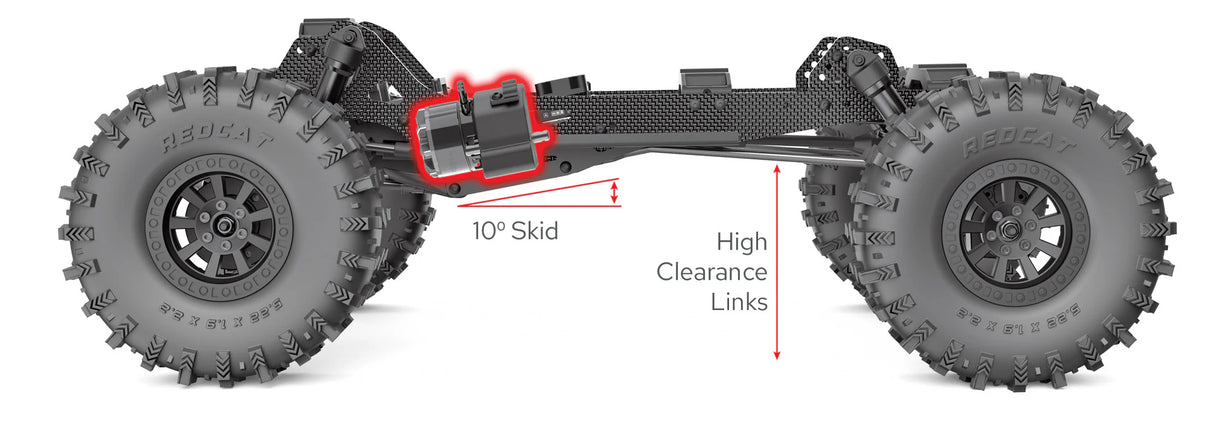

• Ground Clearance: 74mm

• Tires/Wheels: 5.25" tires, 2.2" beadlock wheels

• Motor: Hobbywing 2812 1700KV brushless outrunner (2–4S)

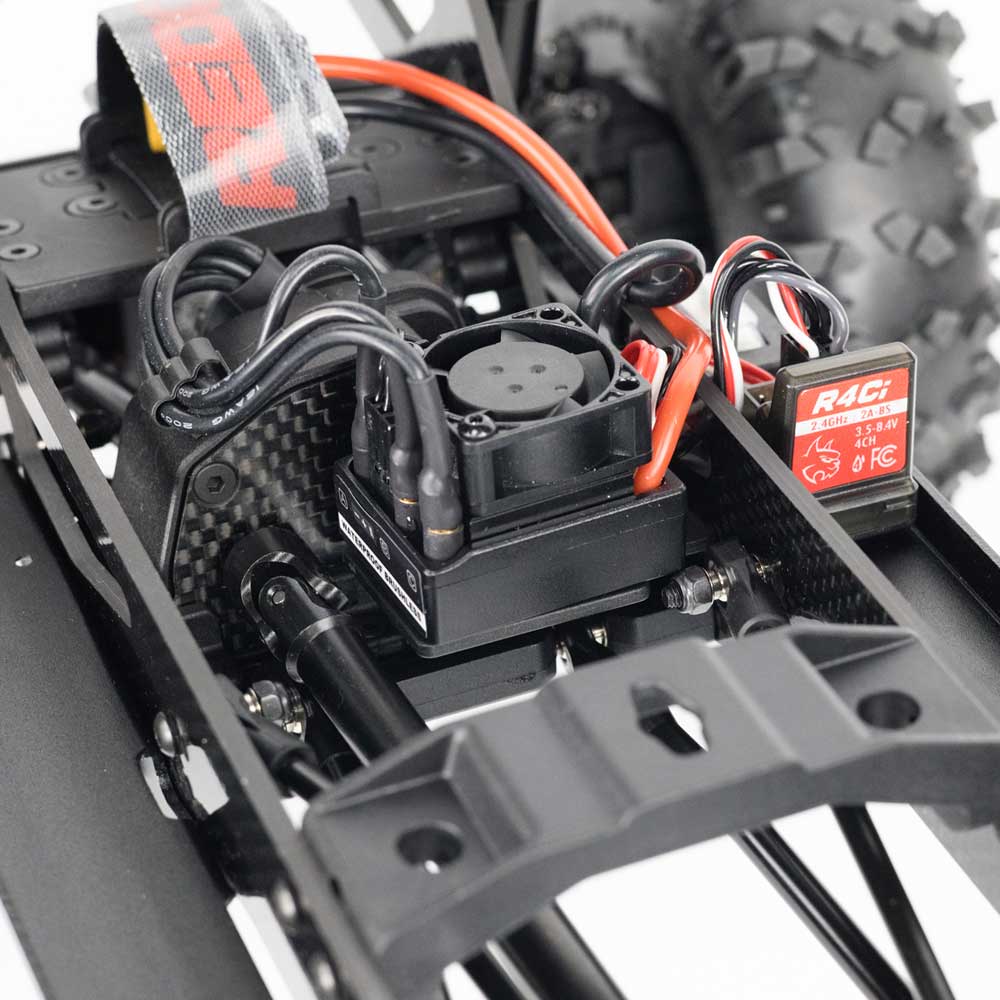

• ESC: Hobbywing WP‑10BL60‑Crawler‑RTR w/ 10A, 8.4V BEC

• Servo: Hexfly HX‑50BL 50kg brushless

• Steering Angle: 58°

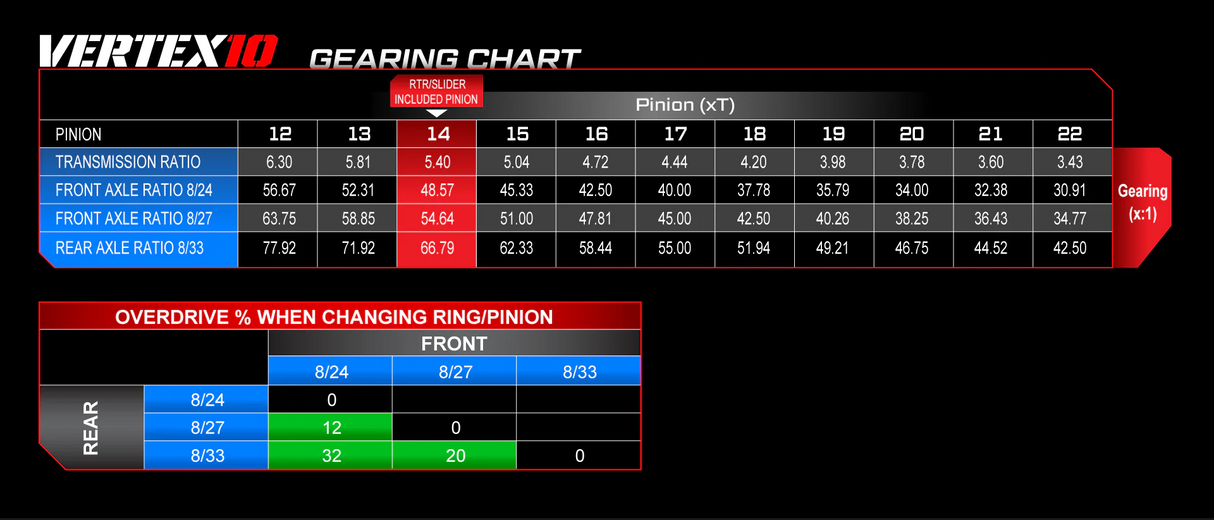

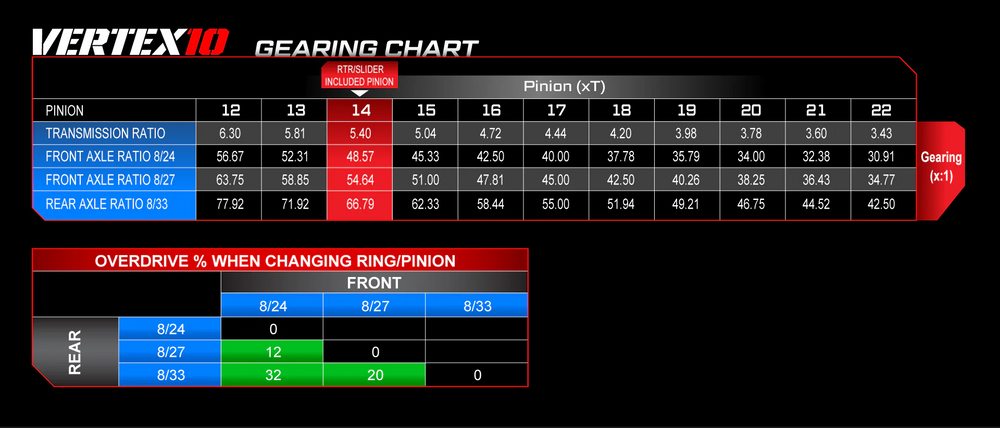

• Axle Ratios: 9:1 front / 12.375:1 rear

• Total Overdrive: 32%

• Weight: 2399g (without battery)

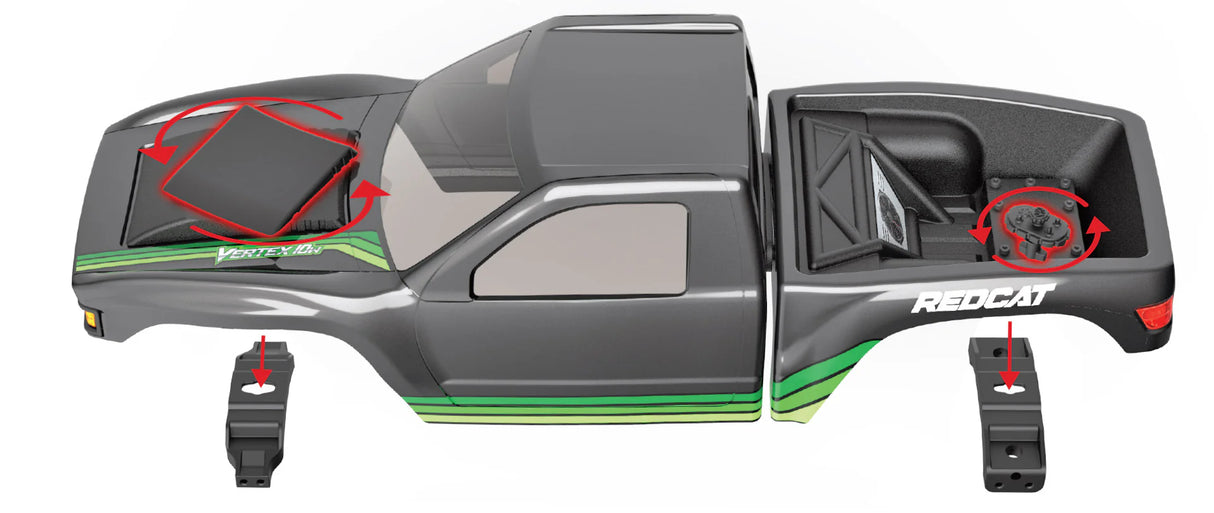

• Body: V10W 2‑piece
• Connector: Dean (T-Plug)

HELPFUL LINKS:

• Manual (with Spare Parts and Exploded Views)

INCLUDES:

(1) Redcat 1/10 Vertex 10W 4WD Electric Rock Crawler

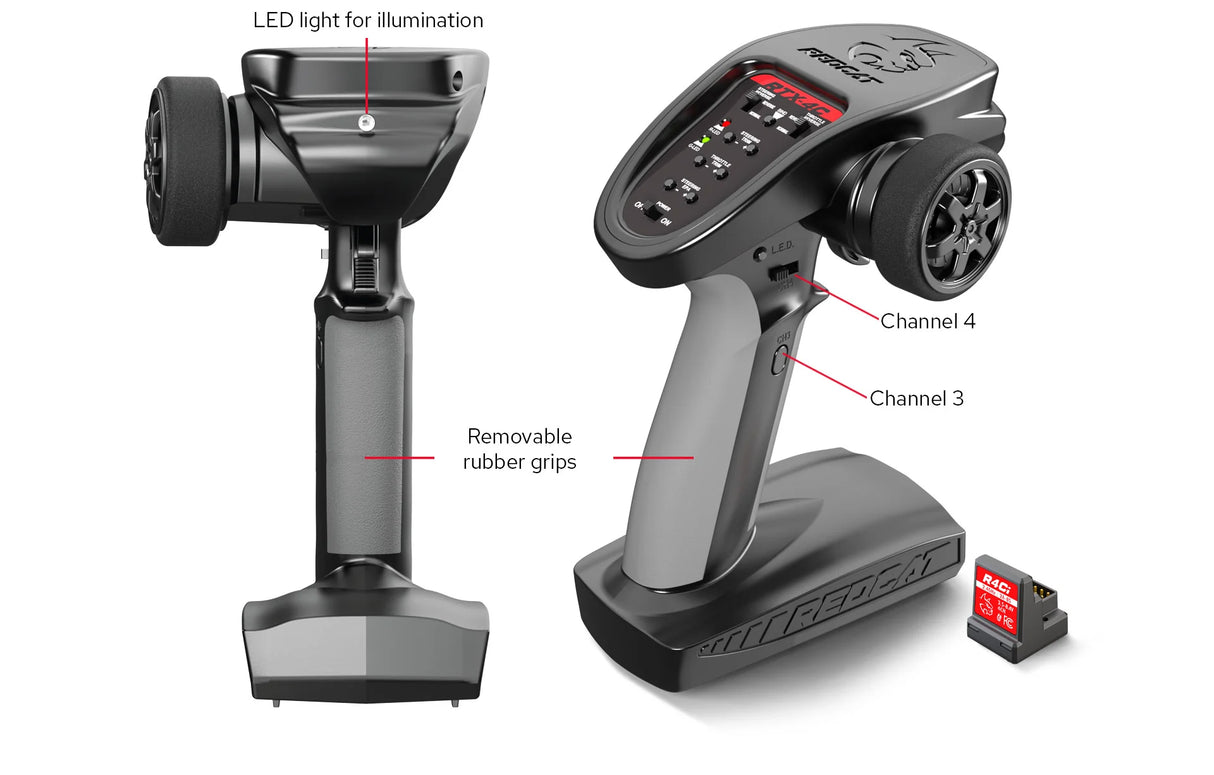

(1) 2.4Ghz Radio Transmitter
(1) User Manual
(1) Pack of Assorted Extra Parts
(1) Set of Sticker Decals
