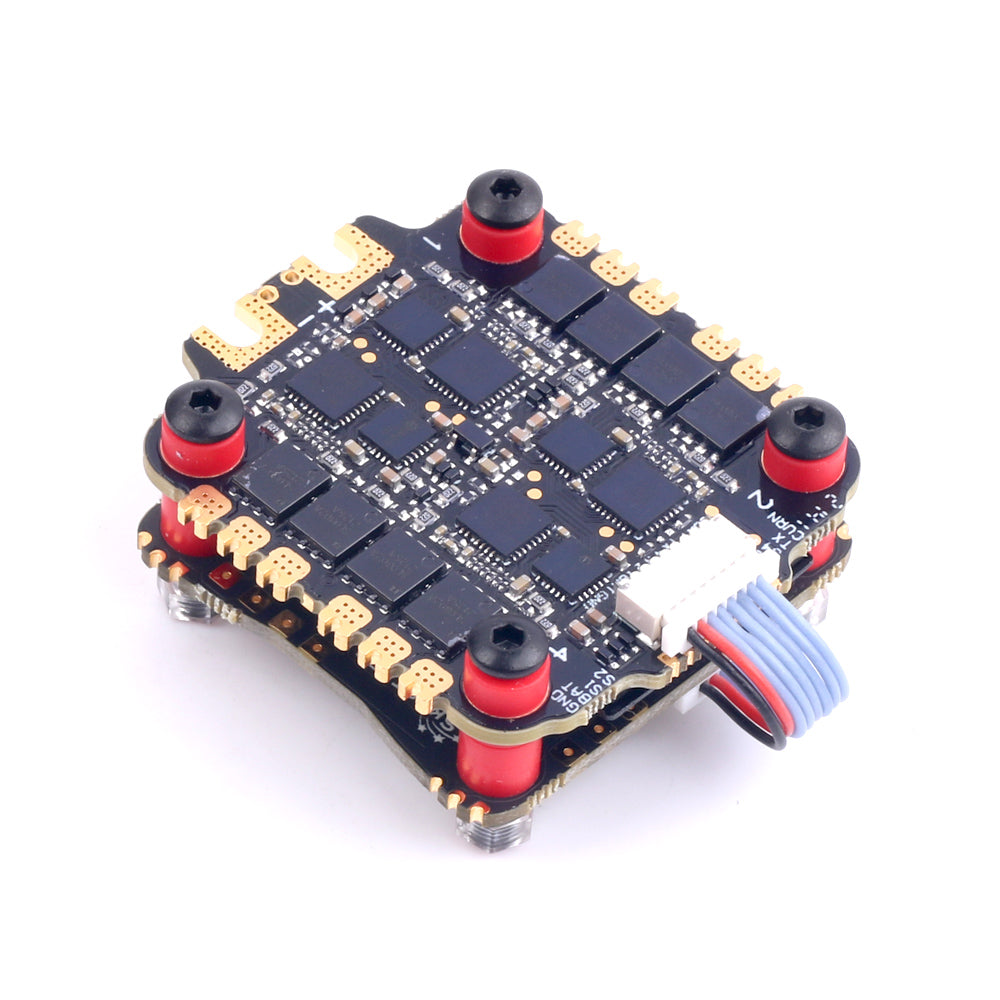

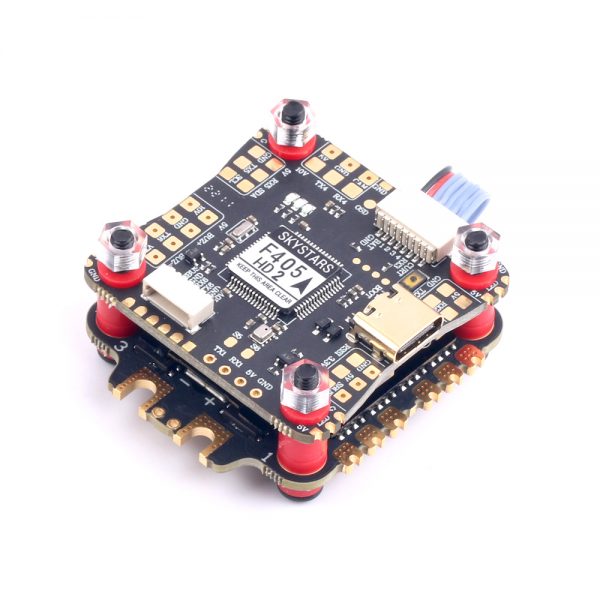

Skystars F405 HD V2 + KO45 Stack (45A / 30x30 / BLHeli_S / 3-6S)

Regular price $74.99

Shipping calculated at checkout. See Shipping Policy for shipping times.

The SkyStars F4 3-6S 30x30 HD V2 Flight Controller comes equipped with 6 UARTS, a 10V BEC, and an internal Blackbox. Version 2 also features bigger soldering pads to avoid any soldering messes and it supports DJI Air Units/Vistas.



SPECIFICATIONS:

Flight Controller:

  • Input voltage: 3-6S LiPo (11.1V~22.2V)
  • MCU: STM32F405RGT6 168MHz
  • IMU: BMI270 (SPI)
  • OSD: Betaflight OSD & DJI HD OSD (UART6)
  • 6 hardware UARTS (UART1,2,3,4,5,6,)
  • Receiver: ELRS/SBUS/IBUS/DSM
  • Barometer: YES
  • Buzzer Pad: YES
  • CURR Pad: YES
  • BEC: 5V 2A & 10V 2A(Max 3A)
  • Blackbox: 16MB
  • Betaflight Target: SKYSTARSF405
  • INAV Target: SKYSTARSF405HD
  • Mounting Holes: 30.5mm/M3
  • Weight: 0.21oz (6g)



ESC:

  • Type: KO45 Blheli_S
  • Dimension: 41 x 46mm
  • Mounting Holes: 30.5 x 30.5mm/Φ3mm
  • Weight: 0.47oz (13.3g)
  • Supports 3-6S Lipo input
  • BB21 MCU, 48Mhz Runs BLHELI 16.X Firmware
  • Current sensor: YES
  • BEC: NO
  • Supports: DShot / DShot150 / 300 / 600 / MultiShot / OneShot etc.
  • Target: Q-H-30 BLS 16.7



HELPFUL LINKS:



INCLUDES:

(1) Skystars F405 HD V2 + KO45 Stack
(1) Power Leads (Red & Black / 14AWG)
(1) 35v 560uf Capacitor
(1) XT60-H Male Connector
(4) M3 Screws
(1) 6-Pin Cable
(1) 8-Pin Cable



NOTES:

  • Manufacturer upgrades, alterations, and processor/firmware changes are frequently made without prior notice. Exact specifications, photos, and links cannot be guaranteed.
