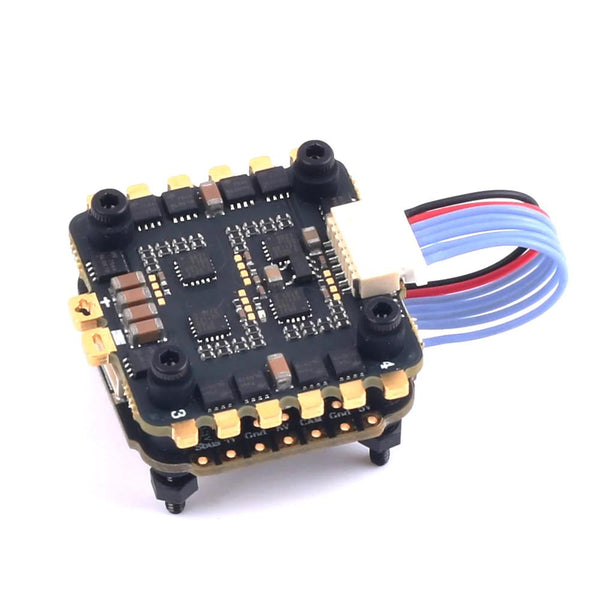

Introducing the F411 40A mini stack from Skystars. It features large soldering pads to facilitate soldering and avoid messes. It also includes a powerful BEC to supply all your electronics with the proper amount of voltage.
FEATURES:
- Solder pads are the largest in size compared to other FC in the market.
- Proper solder pad spacing to avoid solder bridge and facilitate easy soldering.
- ESC connector on top-side rather than bottom which makes it easy for repair.
- TVS Diode for Reverse Polarity Protection and Voltage Spike Suppression.
- Powerful BEC to supply all your electronics.
- Pads arrangement are executed in such a way that when you twist the wires of the camera VTX and RX you don't get any wire overlapping this gives you a uniform twist and clean look.
- DJI connector on the bottom side.
- Budget-friendly price ( We understand the situation of chip shortage and rising prices of FC )
- Two stages of Quality check to reduce any faulty electronics.
- No power lines near Gyro to avoid any EMI interference.
- Comes ready with I2C support and INAV.
SPECIFICATIONS:
Flight Controller:
- Item name: F411 Mini HD
- Input voltage: 3-6S LiPo (11.1V~22.2V)
- MCU: STM32F411
- IMU: BMI270 (SPI)
- OSD: AT7456E
- Uarts: 2
- 1 software UART3
- Receiver: CRSF/SBUS/IBUS/DSM
- Barometer: NO
- Buzzer Pad: YES
- CURR Pad: YES
- BEC 5V 2A
- Blackbox: 16MB
- Firmware: Betaflight SKYSTARSF411 / INav SKYSTARSF411HD
- Mounting Holes: 20 x 20mm / M2
- Weight: 4.3g
ESC:
- Item Name: KO40 40A 4IN1 ESC
- Input voltage: 3-6S LiPo
- Con. Current: 40A
- Peak Current: 45A≥ 10S
- Firmware: BLHeli_S
- Support: DShot 300/600
- Mounting holes: 20 x 20mm / M2
- BEC: No
- Product size: 31 x 30 x 6.9mm
- Weight: 5.4g
HELPFUL LINKS:
INCLUDES:
(1) Skystars F411 + KO40 Mini HD Stack
(1) Power Leads (Red & Black / 14 AWG)
(1) XT60-H Male Connector
(1) 25v / 470uf Capacitor
(4) M2 Screws
(4) M2 Plastic Nuts
(4) Grommets
(1) 6-Pin Cable
(1) 8-Pin Cable
NOTES:
- Manufacturer upgrades, alterations, and processor/firmware changes are frequently made without prior notice. Exact specifications, photos, and links cannot be guaranteed.
