SKU: 07982294

Skystars F722 HD Pro4 + KO60 Stack (60A / 30x30 / BLHeli_32 / 3-6S)

$97.99

Expert Help

Questions about a product? Get help fast, by a real, live person.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

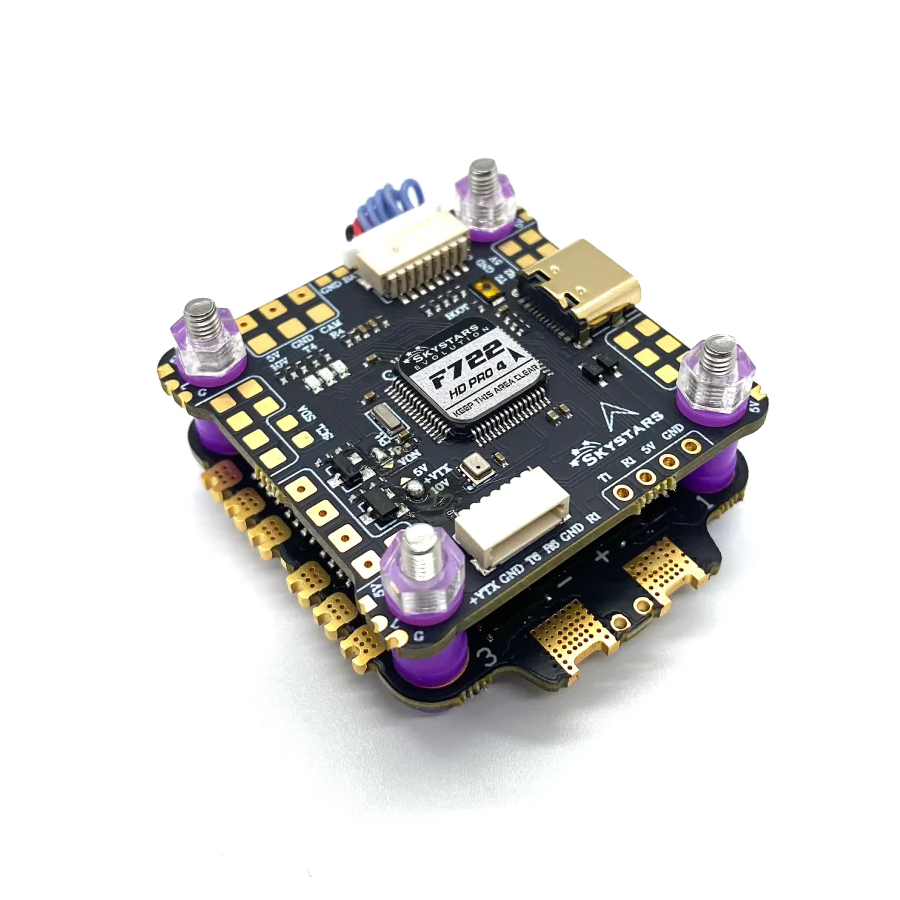

Skystars F722 HD Pro4 + KO60 Stack (60A / 30x30 / BLHeli_32 / 3-6S)

Introducing the new F722 HD Pro4 60A Stack This 6S-capable F7 Stack fits all frames with a 30x30 mounting pattern.



SPECIFICATIONS:

Flight Controller:

  • Input Voltage: 3-6S
  • BEC: 5V/10V 3A max dual-channel BEC supports stable power supply on the sky side of DJI
  • LDO: 3.3V: Max. 250mA
  • MCU: STM32F722RGT6 216MHz
  • Gyroscope: MPU6000
  • Baro: Bmp280
  • OSD: Betaflight SPI OSD DJI HD OSD (UART6)
  • Black box: 16MB
  • UARTS: 6
  • PWM Outputs: 4
  • USB: Type-C (USB2.0)
  • BetaFlight Firmware: SKYSTARSF722Pro
  • INAV: firmware: SKYSTARSF722HD
  • Mounting: 30x30mm



ESC:

  • Protocols: 128K Dshot1200, Dshot600, Dshot300, Dshot150, Oneshot125, Multishot, PWM control signal
  • Input Voltage: 3-6S (12-26V)
  • Continuous Working Current:  60A
  • No built-in 5V BEC output
  • Firmware: BLHeli_32 ESC
  • Screw hole spacing: 30.5x30.5mm
  • Aperture: 4MM
  • Weight: 14.6g



HELPFUL LINKS:



INCLUDES:

(1) Skystars F722 HD Pro4 + KO60 Stack
(1) XT60H-M Connector
(2) JST-SH1.0 8-Pin Cable (4cm)
(1) JST-GH-6P Cable for DJI Port (10cm)
(1) 35v / 1000uf Capacitor
(4) Screws
(8) M4 to M3 Silicone Grommets
(1) Set of Power Leads (Red & Black / 14AWG)



NOTES:

  • Manufacturer upgrades, alterations, and processor/firmware changes are frequently made without prior notice. Exact specifications, photos, and links cannot be guaranteed.
