Skyzone SKY04L V2 FPV Goggles

Regular price $379.99

Free Pickup option available at our storefront in Jacksonville, Florida. Shipping also available on most items to all 50 US States & Territories. See Shipping Policy for more details.

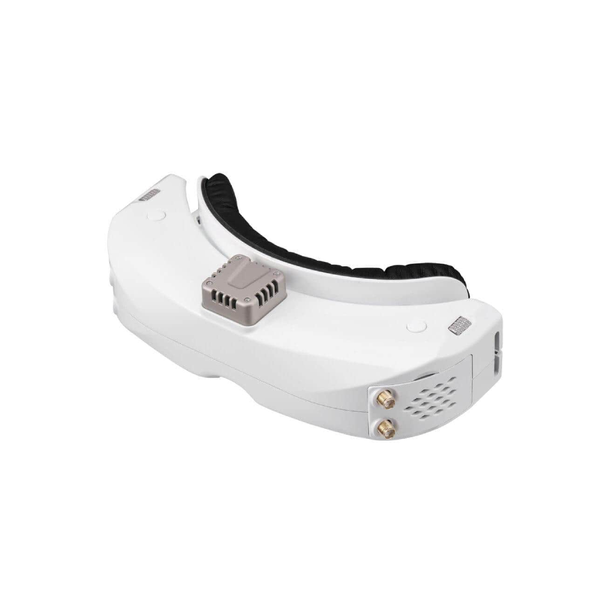

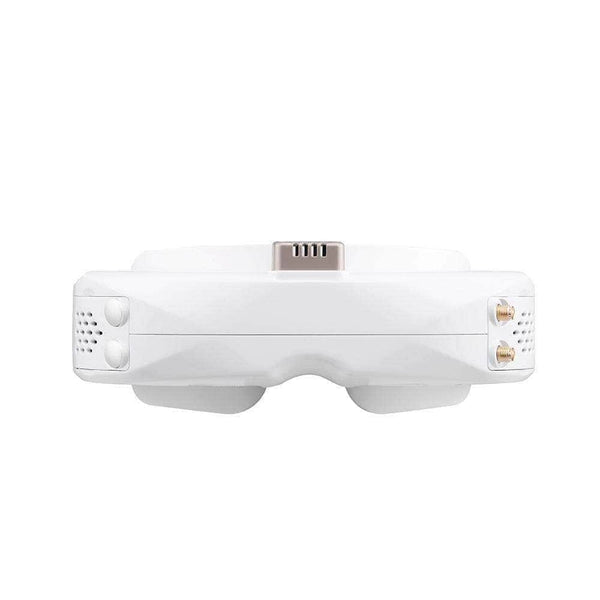

The SKY04L is the lite version (LCOS version) of the SKY04 series of Goggles. They feature focus adjustment, and a 1280 x 960 high resolution LOCS screen, providing pilots with great image quality while racing. They have a built-in DVR, and a Head Tracker.


With their Steadyview receiver, the receiver merges two signals into one, to avoid image tearing and rolling, which makes the image more stable and clearer in challenging flight conditions.


These goggles feature the new OS with 10 languages to choose from. Their menu system is easy to navigate, and with the shuttle wheel, along with the new user interface, pilots can set all the settings just by rolling the wheel, so they don't have to take off their goggles.



  • 2S-6S Wide Voltage Support
  • 5.8G 48CH Steady View Receiver
  • Focus Adjustment -6 ~ +6
  • LCOS 1280*960 High-Resolution Screen
  • Dual Module Bay
  • IPD Range 58〜71mm
  • Type C connector to upgrade the firmware or power goggles for testing
  • HDMI in
  • Built-In HeadTracker
  • .264 DVR, SD card supports up to 128GB





  • Color: White
  • Screen: LCOS
  • Resolution: 1280 x 960
  • FOV (Diagonal): 39°
  • Aspect Ratio: 4:3/16:9
  • Focus: -6~+6 adjustable
  • Inter-pupillary Distance (IPD): 58-71mm
  • Receiver: 5.8Ghz 48CH Steadyview Receiver
  • Languages: 10
  • Power Input: DC 6.5-25.2V with Barrel Connector or Portable Power Supply with USB 5V *Battery not included
  • Power Consumption: 720mA at 12V
  • DVR: H264, 60fps, MOV 6Mbps, SD Card support up to 128Gb
  • Head Tracker: 3-axis Accelerometer, 3-axis gyroscope
  • Dimensions: 185 x 75 x 67mm
  • Weight: 267g



(1) Skyzone SKY04L V2 FPV Goggles
(1) Steadyview Receiver Module
(2) Faceplates (Wide and Narrow)
(1) Foam Insert with Velcro
(1) Zipper Case
(2) 5.8GHz 2dB Antennas
(1) Barrel to XT60 Connector (to power goggles using XT60 LiPo Battery)
(1) AV Head Tracker Cable
(1) AV to RCA Video/Audio Cable
(1) USB-C Cable (for firmware updates)
(1) User Manual



Sold Out
