Traxxas 1/8 Sledge 4WD Electric Monster Truck (Brushless / Blue / ARR)

The Sledge redefines the 1/8 scale off-road experience! Engineered, tested and built to a higher standard, the all-new Sledge is made to exceed your expectations for quality, toughness, and fun. The rock-solid chassis, massive steel drivetrain, ferocious 6s power, and race-inspired handling leave everything else in the dust.



FEATURES:

• Fully assembled and Ready-To-Race
• TQi^™ 2.4GHz Traxxas Link™ Enabled Radio System
• Traxxas Stability Management (TSM)®
• VXL-6S^™ Brushless Power System
• ProGraphix^® Clipless Body
• Speeds up to 70+ MPH



REQUIRED:

(2) 3S 5000mAh LiPo Batteries
(1) LiPo Balance Charger with iD™ (EZ-Peak® Live 4S #2971 Recommended)
(4) AA Alkaline Batteries



SPECIFICATIONS:

• Part#: 95076-4-BLUE
• Speed: 70+mph
• Skill Level: Level 4
• Scale: 1/8
• Power: Electric
• Length (including wing): 23.78 inches (604mm)
• Front Track: 18.10 inches (459mm)
• Rear Track: 18.10 inches (459mm)
• Ground Clearance: 1.95 inches (50mm)
• Weight (no battery): 12.74 pounds (5.77kgs)
• Height (overall): 8.43 inches (214mm)
• Wheelbase: 15.10 inches (384mm)
• Shock Length (front): 5.12 inches (128mm)
• Shock Length (rear): 5.67 inches (144mm)
• Tire Diameter: 6.7 x 3.3 inches (170mm x 84mm)
• Wheel Diameter: 3.8 inches (97mm)
• Speed Control: Velineon® VXL-6s (#3485)
• Motor (electric): Velineon® 2000kV Brushless
• Overall Drive Ratio: 17.2 (13/52 motor pinion and spur gear)
• Differential Type: Sealed, hardened steel bevel, limited slip
• Gear Pitch: Module 1.0

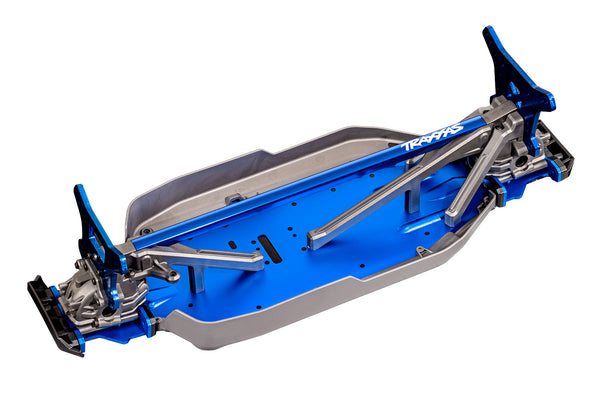

• Chassis Structure/Material: 3.2mm aluminum plate
• Brake Type: Electronic
• Drive System: Shaft-driven 4WD
• Steering: Double-shear bellcrank w/metal servo arm
• Wheels & Tires: 3.8” wheels, pre-glued Sledgehammer® Tires & foam inserts; 6.7x3.8
• Radio System: 2-Channel, TQi™ 2.4GHz Transmitter with TSM® receiver
• Servo: 2275 Waterproof, metal-gear (347oz-in torque)

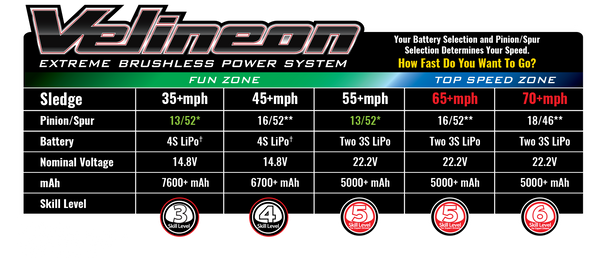

• Top Speed: 70+ MPH with two 3S LiPo batteries and optional gearing (sold separately)
• Skill Level: 4
• Battery Tray: Narrow configuration (L/W/H): 181mm x 50mm x 29/37/45mm*
• Wide configuration (L/W/H): 160mm x 57mm x 29/37/45mm*
• Required Batteries: 4 “AA” (transmitter), Vehicle (see battery finder)
  *Using included optional foam spacer




HELPFUL LINKS:



INCLUDES:

• Sledge, Ready-To-Race^® monster truck with Traxxas 2000kV brushless motor
• VXL-6s waterproof electronic speed control with integrated telemetry
• Quick Start Guide
• TQi^™ 2.4GHz radio system
• High quality maintenance tools
• Jumper plug (for 4s battery use)
