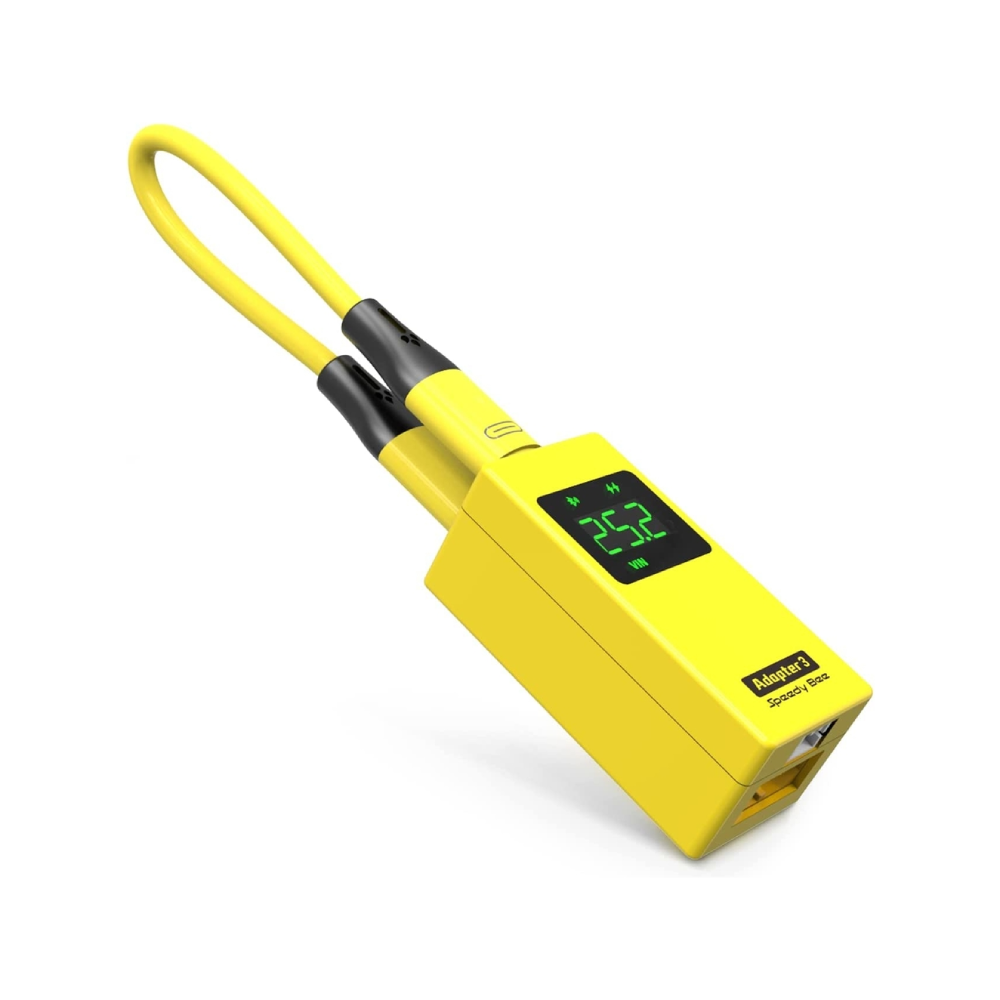

New SpeedyBee adapter combines Wireless Firmware Flasher/Configurator, Blackbox analyzer, ESC flasher, 30W fast USB phone charger, and 1S -6S LiPo battery Checker in one. Connect to the SpeedyBee app, and configure your flight controller anytime, anywhere. Or flash the latest version of Betaflight Emuflight INAV* in just 2 minutes before your flight session.
No laptop, no separate app, no hassle. Connect your quad to the SpeedyBee mobile app and analyze your Blackbox data* in just 1.5 minutes after a flight. Get the most out of your practice sessions now. Change your BLHeli_S ESCs setting or update the firmware via your phone anytime, anywhere. Now supporting BLHeli_32 and BLHeli_S ESCs.
This Adapter can turn the batteries into a power bank when connect between batteries and mobile devices. Supports 30W fast charging, over-current protection, short-circuit protection, and over-temperature protection.
FEATURES:
- AIO Gadget in Your FPV Backpack
- FC Firmware Flasher& Configurator
- Blackbox Data Analyzer
- ESCs Portable Configurator
- Turn the FPV Batteries into A Power Bank
SPECIFICATIONS:
- Power Input Voltage Range: 1-6S(3.8V+ for 1S)P
- Power Input Connector: XT60-Male, PH2.0 maleR
- Required Mobile Device System Version: Android 7.0+ | iOS 12.0+M
- Maximum Output Current for flight controllers: 700mA @5VF
- Fast Charging Output interface: USB A PortM
- Minimum Input Voltage for Charging output: 7.4V(2S LiPo)S
- Supported Fast Charging Protocol: QC3.0/QC2.0/AFC/ FCP/SCP/High SCP/ PE2.0/PE1.1/SFCPM
- Max Fast Charging Current: 3.5AM
- Max Fast Charging Power: 30WD
- Dimension: 24.8 x 21.8 x 53.6mm
- Net Weight: 35g
HELPFUL LINKS:
INCLUDES:
(1) Speedybee Adapter v3
(1) Manual Card
MORE INFO:
Turn your smartphone into
your mobile FPV companion
Connect to the SpeedyBee mobile app, and configure your flight controller anytime, anywhere. Or flash the latest version of Betaflight/Emuflight/INAV in just 2 minutes before your flight session.
The choice is yours.
Analyzing Blackbox data has
never been easier
No laptop, no separate app, no hassle. Connect your
quad to the SpeedyBee mobile app and analyze your
Blackbox data* in just 1.5 minutes after a flight.
Get the most out of your practice sessions now.
*Currently supports Betaflight and Emuflight only
Configure your BLHeli_S ESCs
wherever you want
Why stop at flight controller? Change your BLHeli_S ESCs setting or update the firmware anytime, anywhere. Broken motor? Solder it up, take your smartphone out, and configure your motor direction wirelessly with the latest SpeedyBee app
- now supporting BLHeli_32 and BLHeli_S ESCs.
Forgot your LiPo checker?
Worry not
Connect your 1S - 6S LiPo and the display will immediately show your battery voltage and the remaining power with a specific colour code*.
The built-in beeper will alert you if the remaining power is less than 40% to help extend your battery lifespan.
*GREEN(>80%), WHITE(40-80%) and RED(<40%).
MicroUSB or Type C?
Why not both?

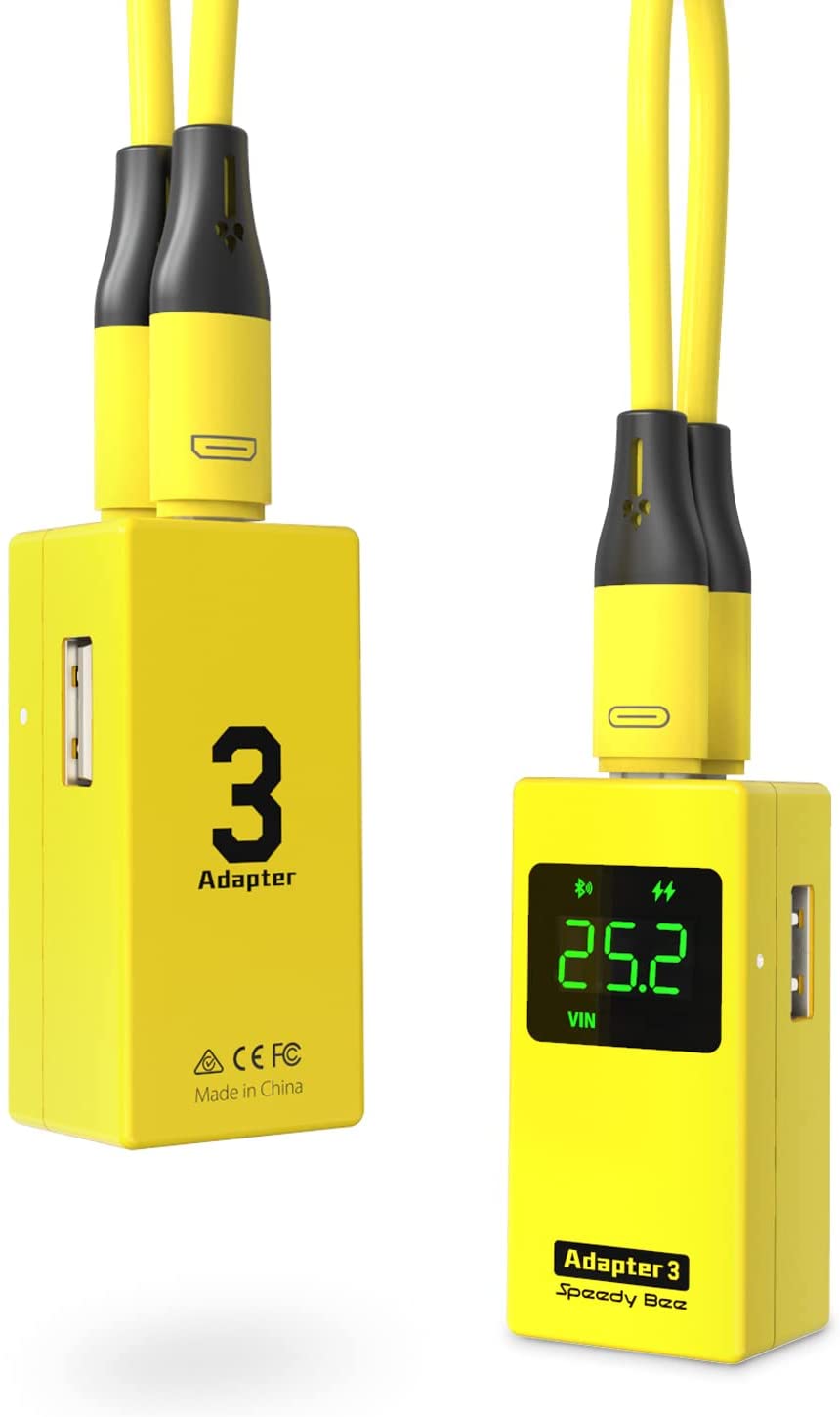

SpeedyBee Adapter 3 comes with a dual-head data cable, with MicroUSB 2.0 and USB 3.0 Type C connector on each end. No more worries about connector compatibility regardless of what flight controller you are using in your build.
WiFi + Bluetooth =
the best of both worlds
Use Bluetooth for quick access to your firmware configurator, or switch to Wi-Fi to flash firmware or download Blackbox data at a higher speed.
And all you need
is just one LiPo
Access the configurator function using any LiPo batteries available to you. Supports all 1S - 6S LiPo with PH2.0 or XT60 connectors. Plug in that beefy 6S 1500mah, or that tiny 1S Whoop battery (minimum voltage 3.8V), to the SpeedyBee Adapter 3 you are ready to access the configurator.
