SKU: 34055894

SpeedyBee F405 Mini BLS Stack (35A / 20x20 / BLHeli_S / 3-6S)

$59.99

Expert Help

Need help selecting the right product? Get help fast.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

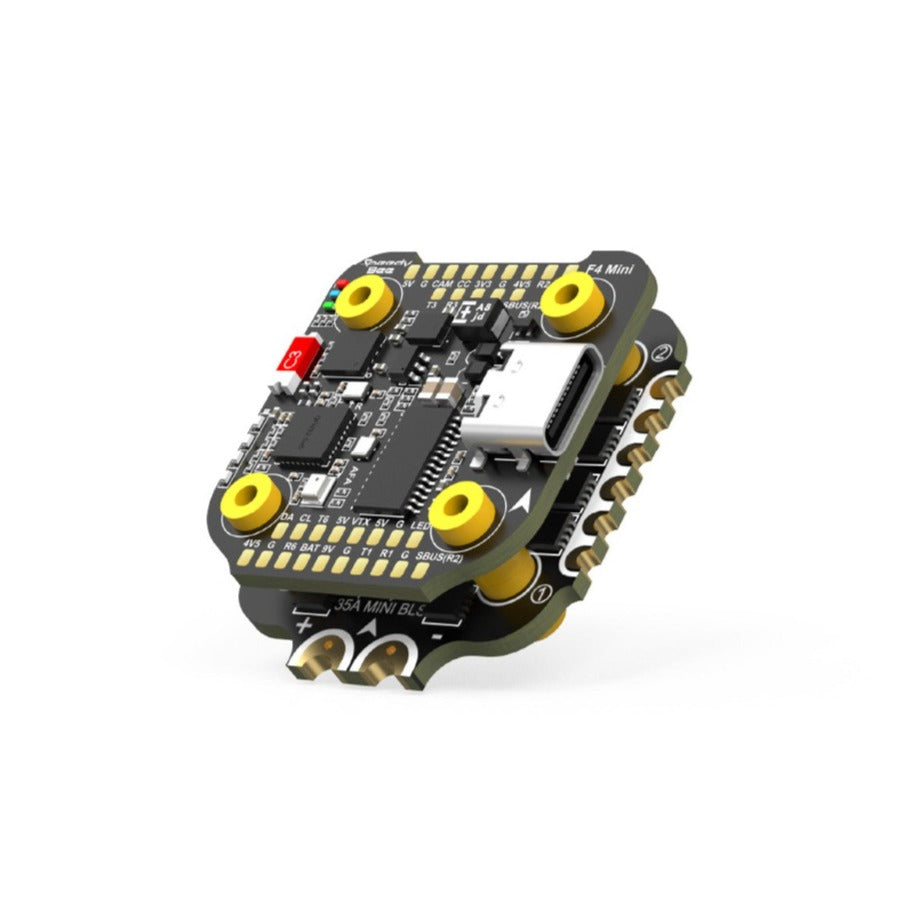

SpeedyBee F405 Mini BLS Stack (35A / 20x20 / BLHeli_S / 3-6S)

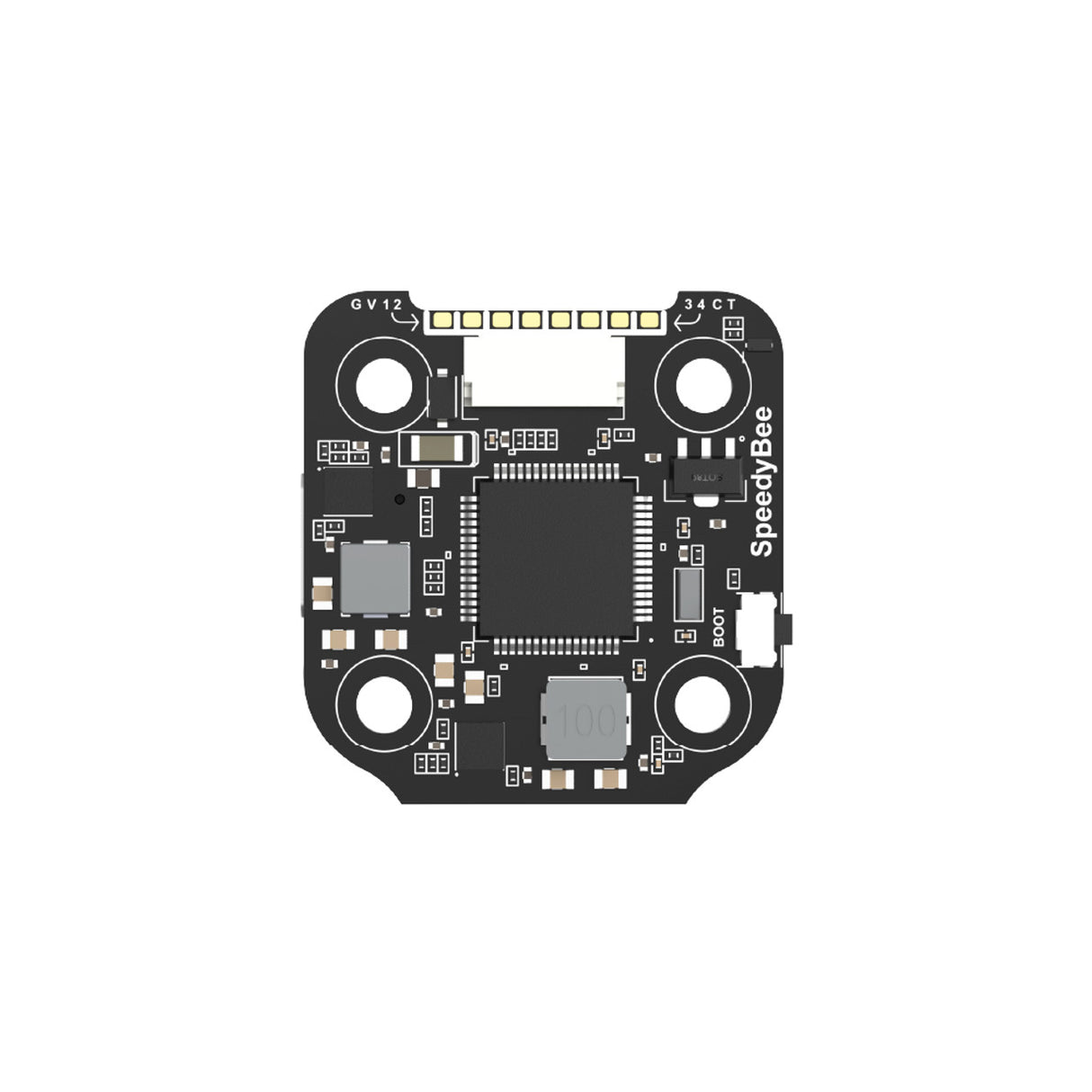

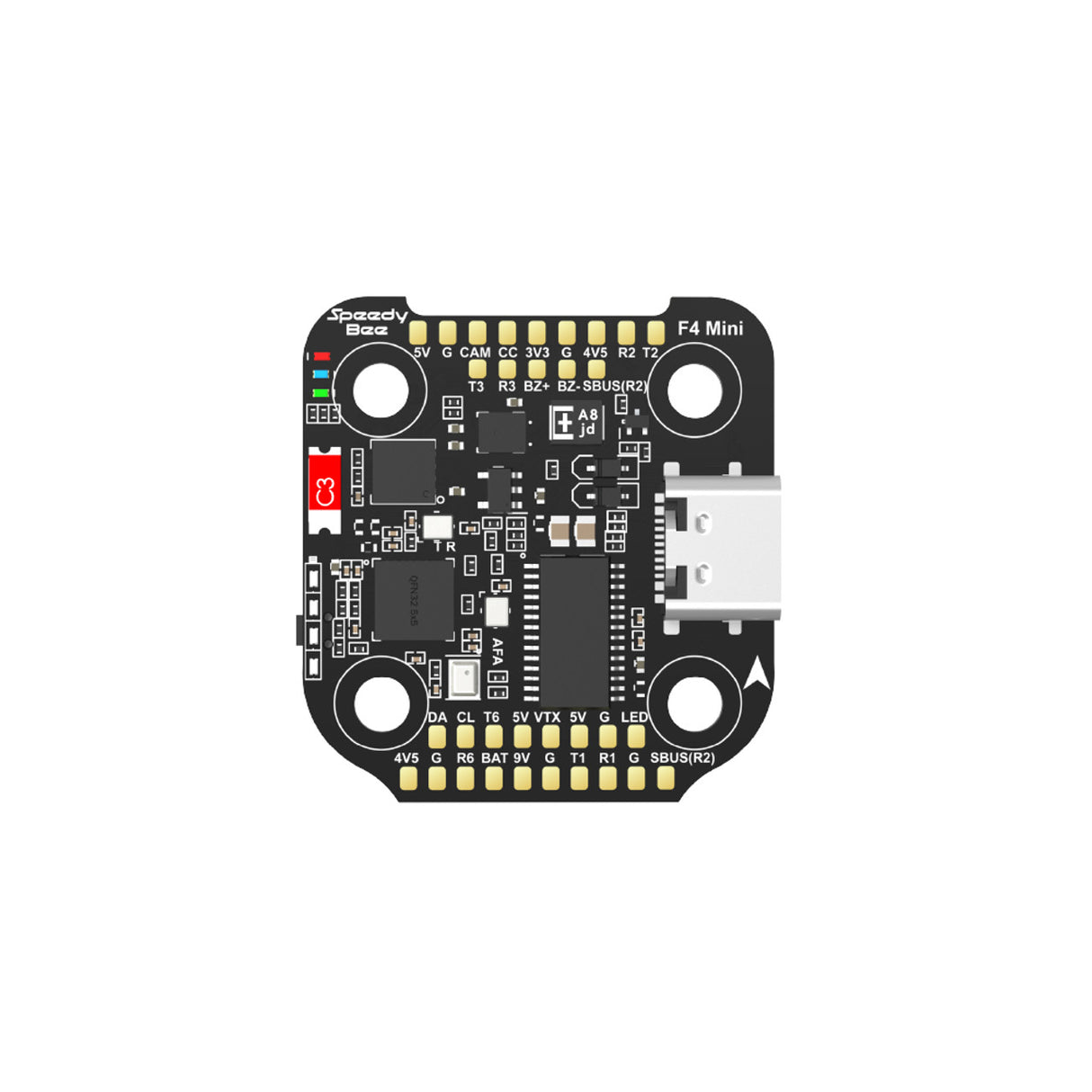

Utilizing an upgraded F405 flight controller chip with better performance than the F411, it features a built-in Bluetooth chip for seamless wireless Betaflight tuning. The board comes with a 4-level battery voltage display, built-in barometer, and supports connectivity to all DJI Air Units. It offers 4 available UART ports, and a dual BEC setup with 5V 2A and 9V 3A outputs.

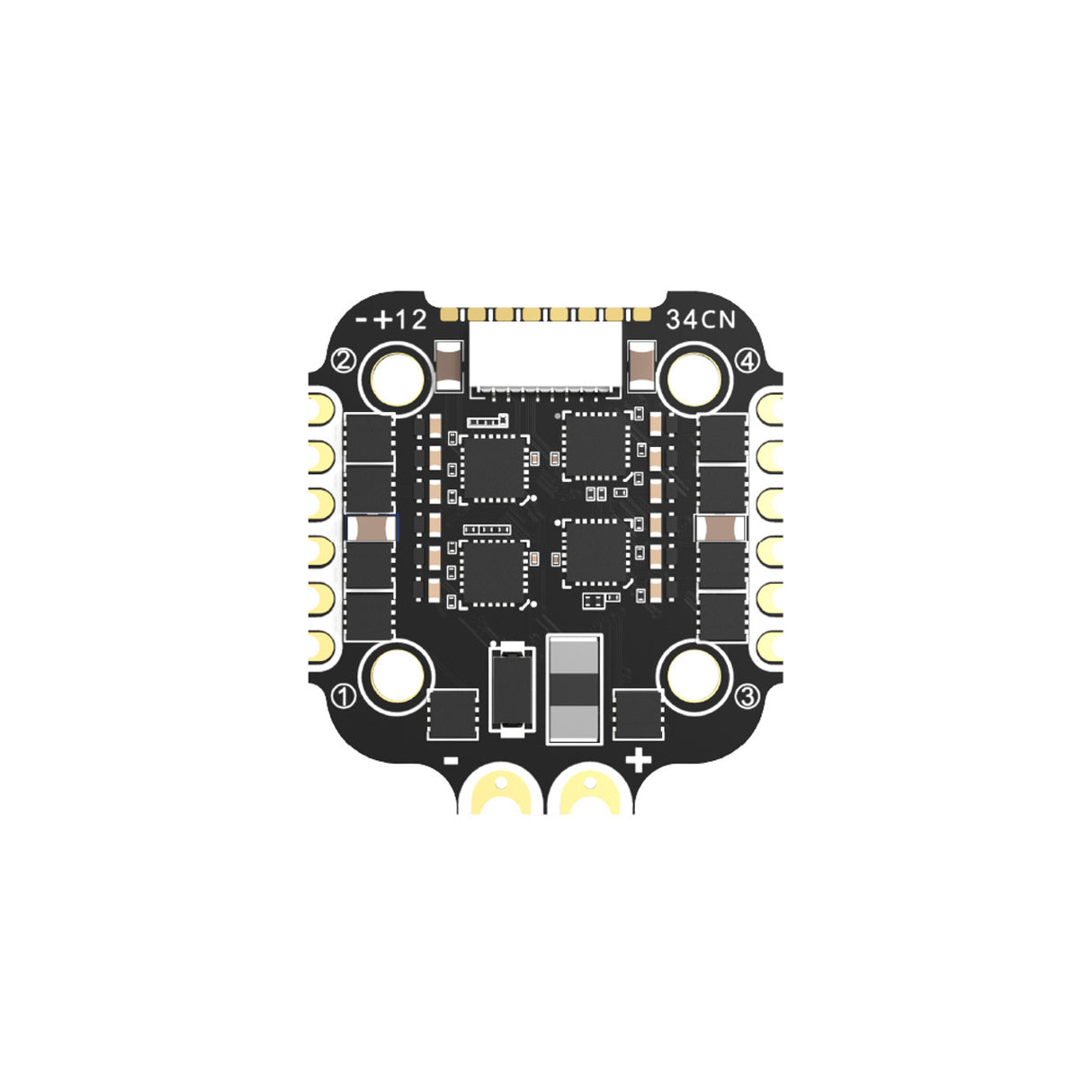

35A 4-in-1 BLHeliS Mini ESC: This ESC provides four synchronized outputs with a continuous current of 35A, delivering strong power to drive all 2-4 inch and lightweight 5-inch quadcopters via 4-6S battery. Equipped with a TVS transient suppression diode onboard, it better absorbs surge voltage, providing enhanced protection for the ESC.



SPECIFICATIONS:

Flight Controller:

  • Input Voltage: 3-6S LiPo
  • MCU: STM32F405
  • IMU (Gyro): ICM42688P
  • USB Port Type: Type-C
  • Barometer: Built-in
  • BLE Bluetooth: Supported for connecting with the SpeedyBee App
  • WIFI: Not supported

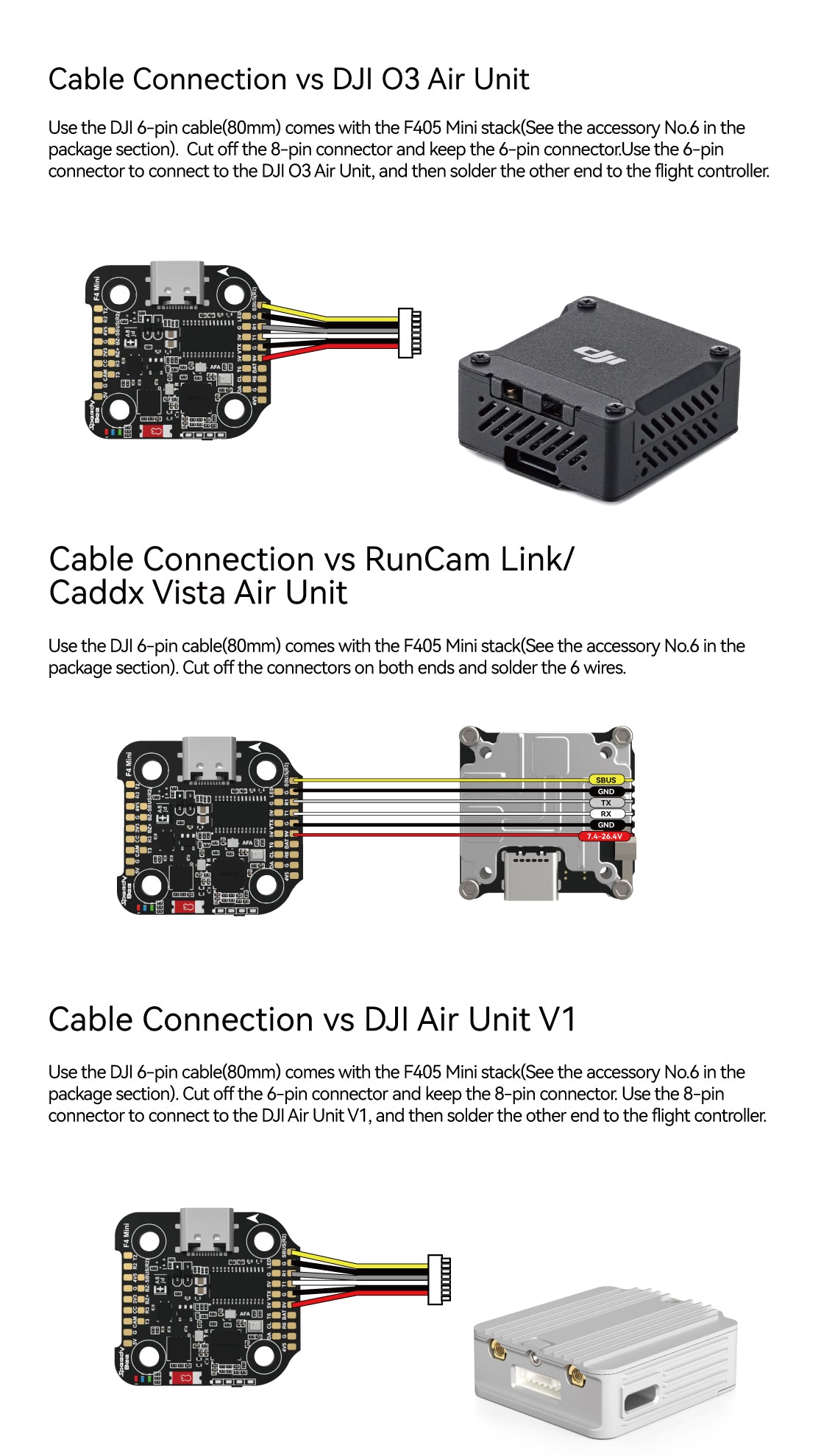

  • DJI Air Unit Compatibility: Compatible with DJI Air Units
  • ESC Signal: M1 - M4 wires or soldering pads
  • UART: 6 sets (including UART4 for Bluetooth)
  • Blackbox: 8MB onboard flash
  • Power Input: 3-6S LiPo
  • Mounting: 20 x 20mm, compatible with M2 and M3 screws
  • Dimensions: 30mm (L) x 32mm (W) x 7.8mm (H)
  • Weight: 9.6g


ESC:

  • Input Voltage: 3-6S LiPo
  • Firmware: BLHeli_S J-H-40
  • Continuous Current: 35A * 4
  • Burst Current: 45A (5 seconds)
  • ESC Protocol: DSHOT300/600
  • Power Input: 3-6S LiPo
  • Power Output: VBAT (Battery voltage, used to power the flight controller)
  • Current Sensor: Support (Scale=250, Offset=-500)
  • ESC Telemetry: Not supported
  • Mounting: 20 x 20mm, ∅3.5mm hole size, compatible with M2 and M3 screws/Silicone grommets
  • Dimensions: 35 * 35 * 5.5mm
  • Weight: 7.2g


HELPFUL LINKS:



INCLUDES:

(1) SpeedyBee F405 V3 20x20 Flight Controller
(1) SpeedyBee 35A BLHeli_S Mini V2 4-in-1 ESC
(5) M2 Silicone O-Ring
(5) M5 Silicone O-Ring
(5) M2 Anti-Vibration Silicone Grommets
(5) M3 Anti-Vibration Silicone Grommets
(1) 8-Pin JST Cable 25mm

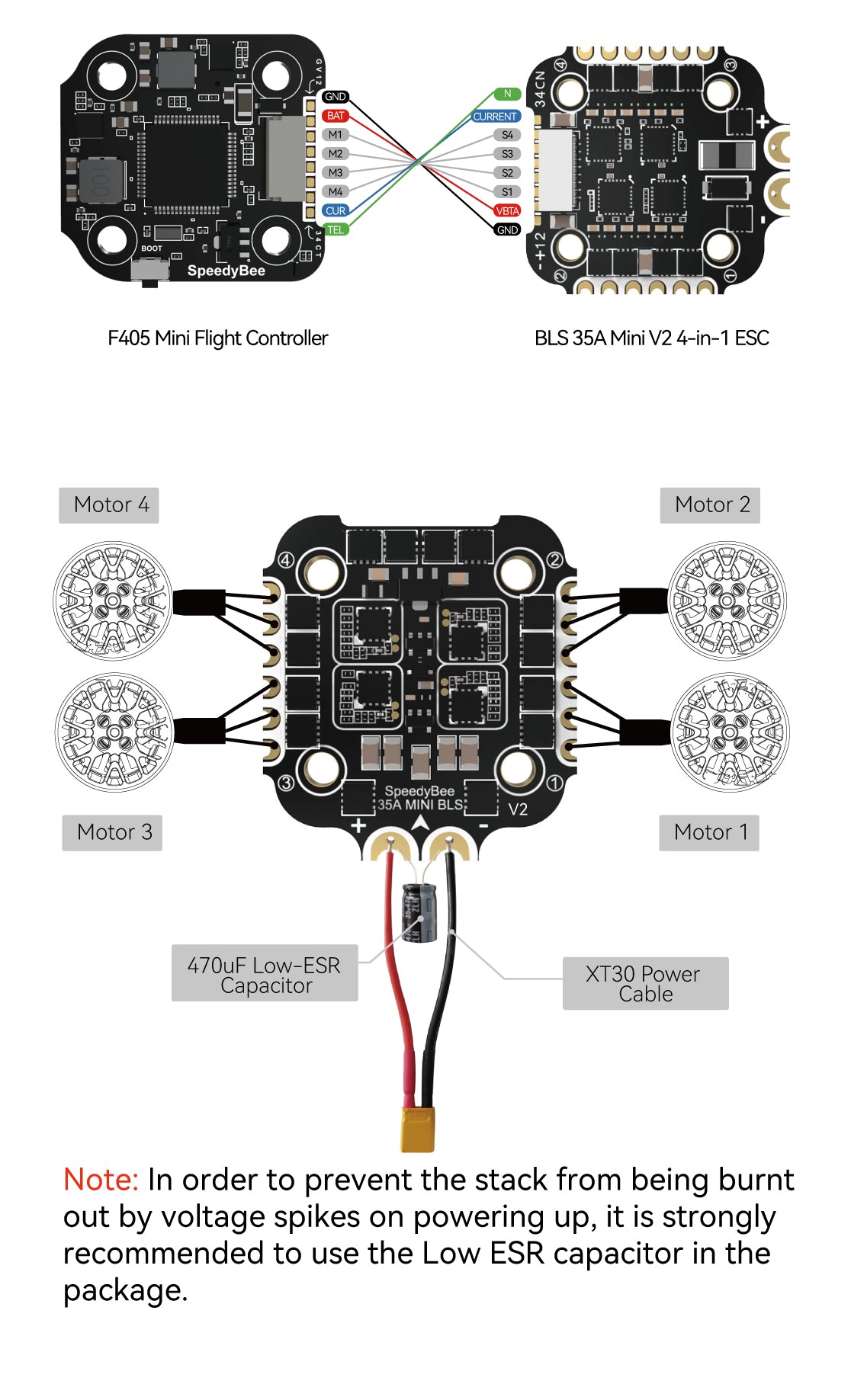

(1) 35V 470uf Capacitor



NOTES:

  • Manufacturer upgrades, alterations, and processor/firmware changes are frequently made without prior notice. Exact specifications, photos, and links cannot be guaranteed.
