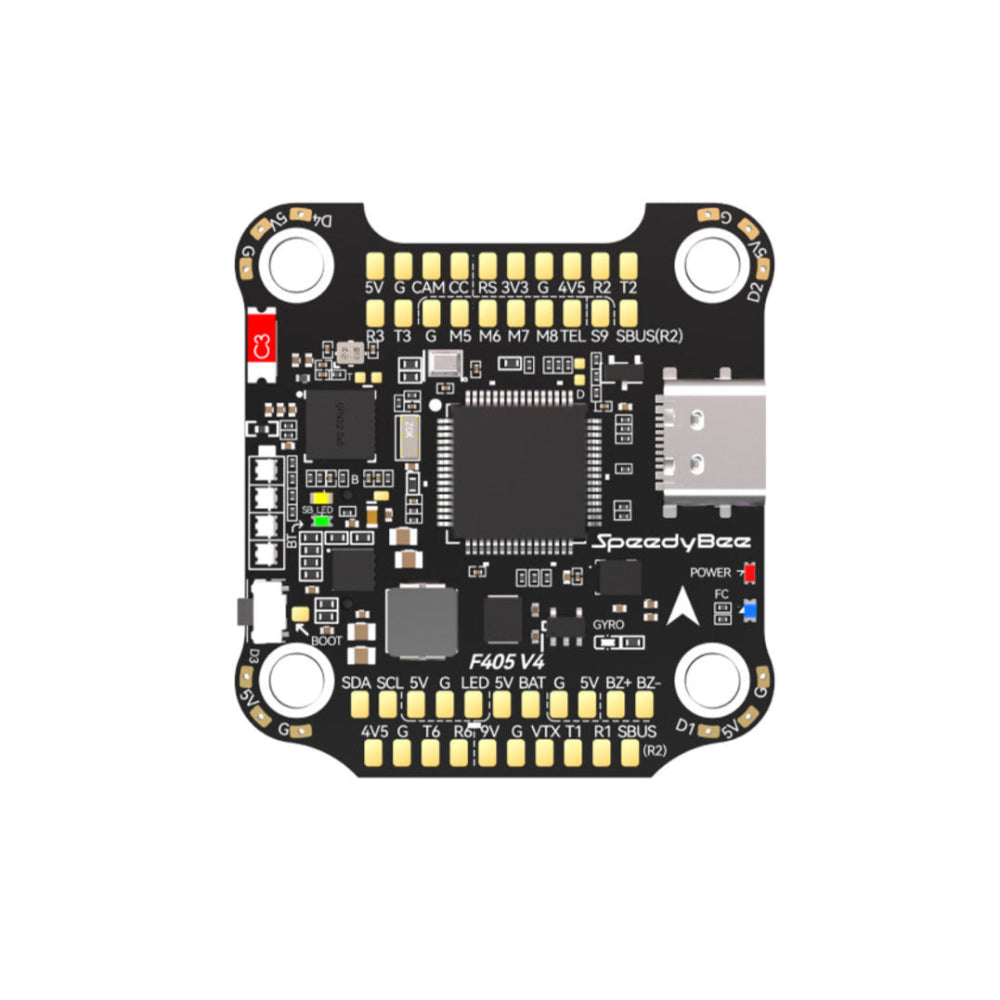

SpeedyBee F405 V4 Flight Controller (30x30 / 6 Uarts / 3-6S)

• Part#: SB-F405-V4
• Input Voltage: 3-6S LiPo
• MCU: STM32F405
• IMU (Gyro): ICM42688P
• USB Port Type: Type-C
• Barometer: Built-in
• OSD Chip: AT7456E chip
• BLE Bluetooth: Supported. Used for Flight Controller configuration (MSP should be enabled with Baud rate 115200 on UART4)
• WIFI: Not supported
• DJI Air Unit Connection Way: Two ways supported: 6-pin connector or direct soldering
• 6-pin DJI Air Unit Plug: Supported. Completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire change needed
• Blackbox MicroSD Card Slot
• Current Sensor Input: Supported. For SpeedyBee BLS 55A ESC, set scale = 400 and Offset = 0

• 5V Output: 9 groups of 5V output, four +5V pads and 1 BZ+ pad (used for Buzzer) on front side, and 4x LED 5V pads. Total current load is 3A
• 9V Output: 2 groups of 9V output, one +9V pad on front side and another included in a connector on bottom side. Total current load is 3A
• 3.3V Output: Supported. Designed for 3.3V-input receivers. Up to 500mA current load
• 4.5V Output: Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load
• ESC Signal: M1 - M4 on bottom side and M5-M8 on front side
• UART: 6 sets (UART1, UART2, UART3, UART4 (Dedicated for Bluetooth connection), UART5 (Dedicated for ESC telemetry), UART6
• ESC Telemetry: UART R5 (UART5)
• I2C: Supported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc.
• Traditional Betaflight LED Pad: Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LED controlled by Betaflight firmware
• Buzzer: BZ+ and BZ- pad used for 5V Buzzer
• BOOT Button: Supported
• RSSI Input: Supported. Named as RS on the front side
• Smart Port / F.Port: Not supported
• Supported Flight Controller Firmware: BetaFlight (Default), INAV
• Firmware Target Name: SPEEDYBEEF405V4
• Mounting: 30.5 x 30.5mm (4mm hole diameter)
• Dimension: 41.6(L) x 39.4(W) x 7.8(H)mm
• Weight: 10.5g

HELPFUL LINKS:

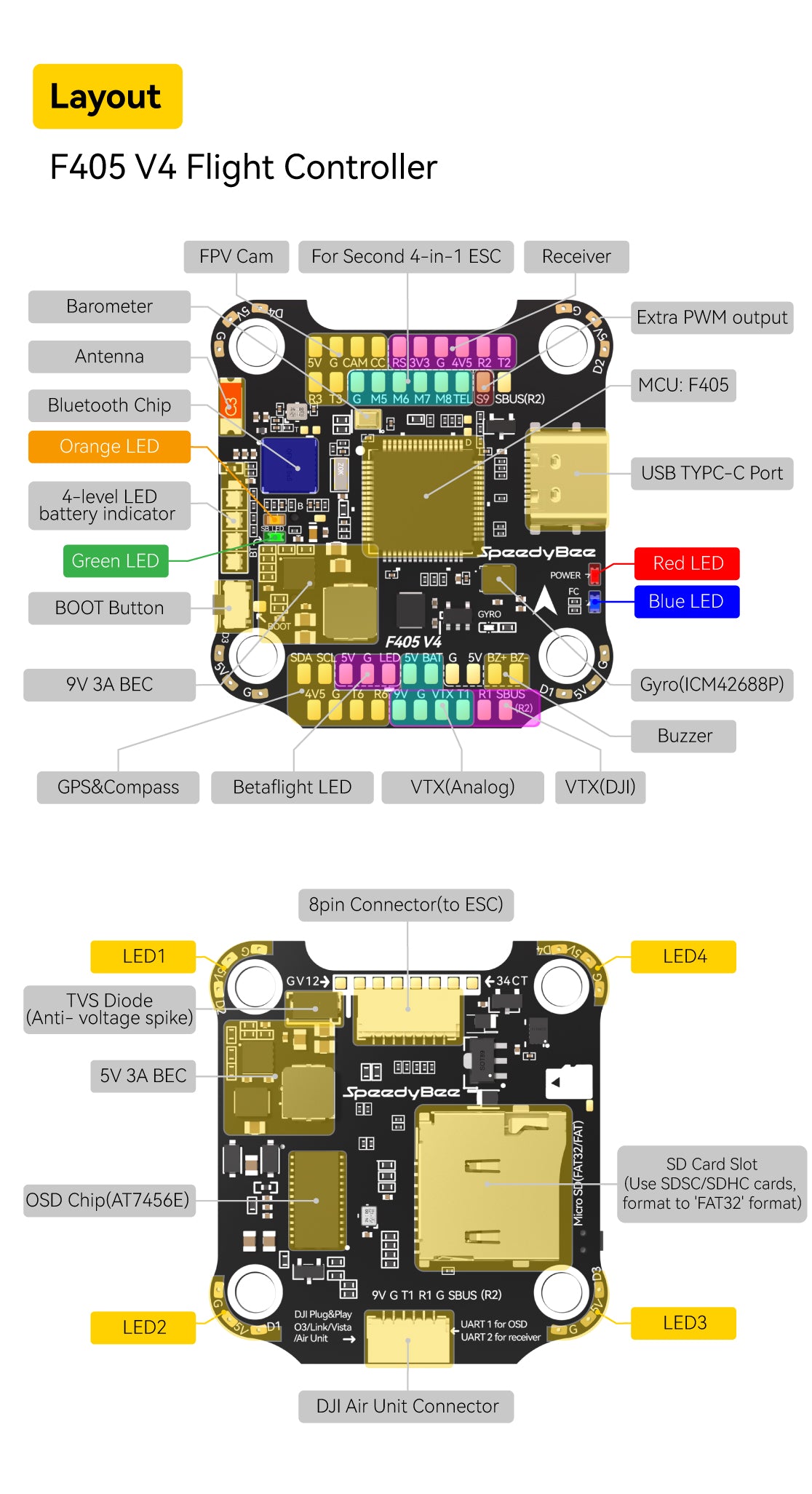

• Wire Diagram

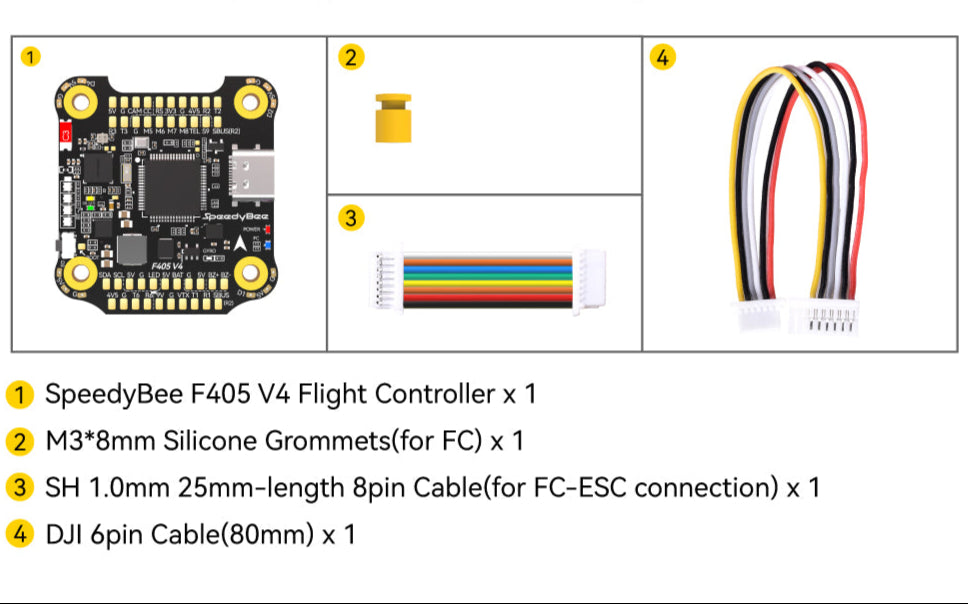

INCLUDES:

(1) SpeedyBee F405 V4 Flight Controller
(4) M3 Anti-Vibration Silicone Grommets
(1) 8-Pin JST cable
(1) DJI 6-pin cable

NOTES:

• Manufacturer upgrades, alterations, and processor/firmware changes are frequently made without prior notice. Exact specifications, photos, and links cannot be guaranteed.


• Please make sure your DJI video transmitter's cable matches the flight controller's pinout.


• Press and hold BOOT button and power the FC on at the same time to force the FC to enter DFU mode for firmware flashing when the FC gets bricked. When the FC is powered on and in standby mode, the BOOT button can be used to control the LED strips connected to LED1-LED4 connectors on the bottom side. By default, short-press the BOOT button to cycle the LED displaying mode. Long-press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled by Betaflight firmware


• Betaflight firmware requires the type of the microSD card to be either Standard (SDSC) or High capacity (SDHC) under 32GB, so extended capacity cards (SDXC) are not supported. Many high-speed U3 cards are SDXC. The microSD card MUST be formatted with the FAT16 or FAT32 (recommended) format. Any SD card less than 32GB can be used, but Betaflight can only recognize 4GB maximum. It's suggested to use a 3rd party formatting tool and choose 'Overwrite format.' Check here for recommended SD cards or buy the tested cards from our store.
