The Crossfire module, shrunk down to its pure essence for long-range transmission up to 40km (25 miles)! This module is not only for FPV racers that need extra distance but it's also great for its ultra-low latency.
COMPATIBILITY:
- FrSky X9 Lite Radio Transmitter (with included adapter)
- FrSky X-Lite Radio Transmitter
- Jumper T-Lite Radio Transmitter
FEATURES:
- Long-range, adaptive and robust remote control system for your aircraft
- Immune to on-board noise
- Two-way communication link with real-time link vitals and telemetry
- Self-healing & frequency hopping (DSSS, FHSS)
- Adaptive bandwidth control and range optimization
- Super easy binding and configuration via built-in display of your R/C
- Low latency, 150Hz update rate (3x faster than typical RC links) control
- Two receiver models: 8 port Diversity Rx, 4 port Mini-receiver (4g weight!)
- 8 or 12ch output via SBUS/PPM/CRSF on both receivers
- Ability to fly with multiple friends at the same time (10 or more)
- Selectable RF power from 25mW to 1W (local restrictions apply)
- Transmitter LED shows link health
- Micro-receiver for smaller drones. Smaller than you think!
- Software updates via RF Link
SPECIFICATIONS:
- Frequency Bands: 868MHz (EU, Russia) / 915MHz (USA, Asia, Australia)
- Input Voltage: 6.0 - 13V
- Connector: USB-C
- Power Output: 25mw to 1w
- Dimensions: 64 x 42 x 25mm (Nano TX module size)
- Weight: 1.69oz (48g)
HELPFUL LINKS:
INCLUDES:

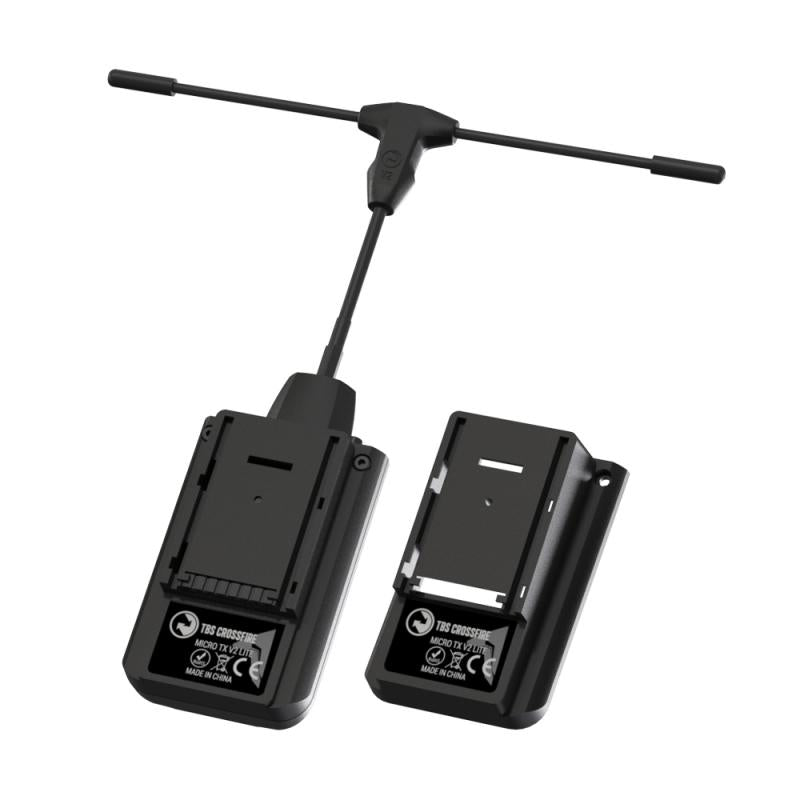

(1) TBS Crossfire Nano Tx
(1) TBS Crossfire Stock Tx Antenna V2
(1) X9 Lite Back Case
