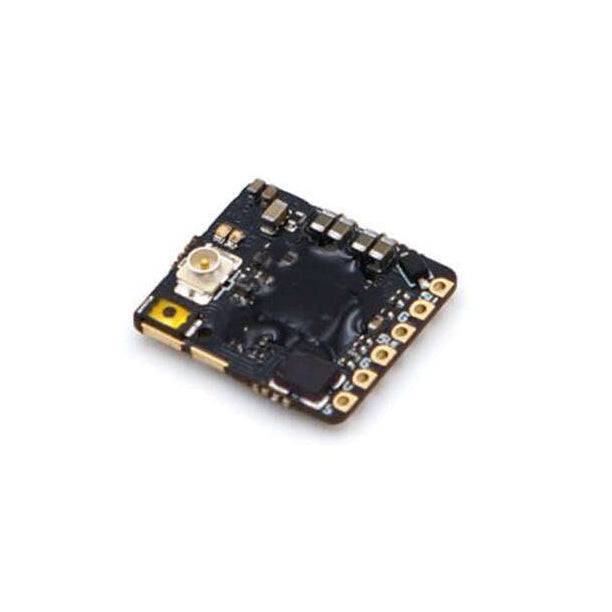

TBS Unify Pro32 Nano v1.1 Video Transmitter (5.8Ghz / 500mW / u.FL)

Regular price $29.99

Free Pickup option available at our storefront in Jacksonville, Florida. Shipping also available on most items to all 50 US States & Territories. See Shipping Policy for more details.

With the TBS Unify Pro32 Nano v1.1, you now have boosted output power, improved robustness, decreased power consumption, added capability for insane features, and a 20x20mm adapter board included for the installation into your multirotor. In a nutshell, it’s one of the most comprehensive, and durable video transmitters on the market.



FEATURES:

  • Small, ultralight Video Transmitter
  • Barcode reading
  • Up to 500mw+ of output power
  • Ultra-clean transmission (up to 16 pilots at once!)
  • PitMode - power up your quad during a race. Now with team-race capability!
  • Easy OSD, FC and RC channel changes, with fallback button menu
  • Robust RF amplifier allows powering up without antenna for hours!
  • Clean powerup and video switching
  • CE certified



    SPECIFICATIONS:

    • Operating Voltage: 3-13V
    • Operating Temperature: watch for normal airflow
    • Video-Input Impedance: 75 Ohm
    • Weight: 0.03oz (1g)

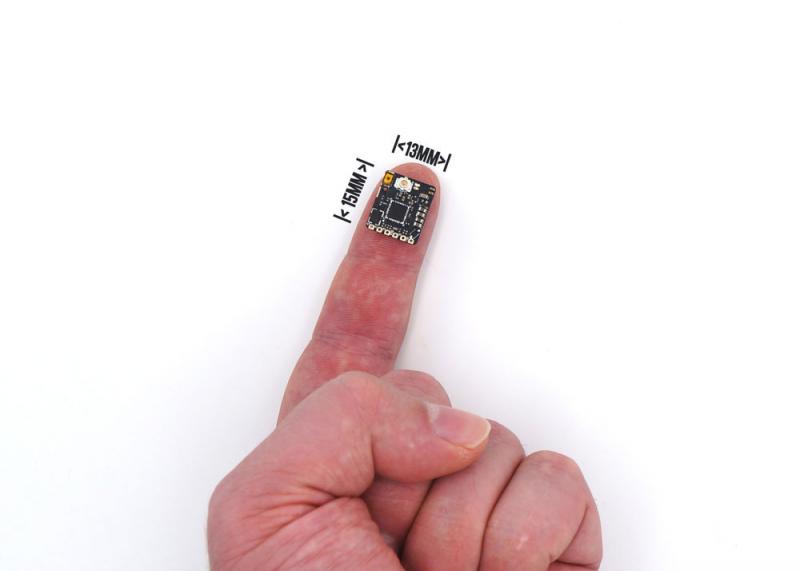

    • Dimensions: 15 x 13 x 2mm
    • Antenna Connector: u.FL connector
    • Video Format: NTSC / PAL
    • Output Power:
      • 14dBm (25mW)
      • 20dBm (100mW)
      • 26dBm (400mW)
      • 28dBm (500+mw)



    HELPFUL LINKS:

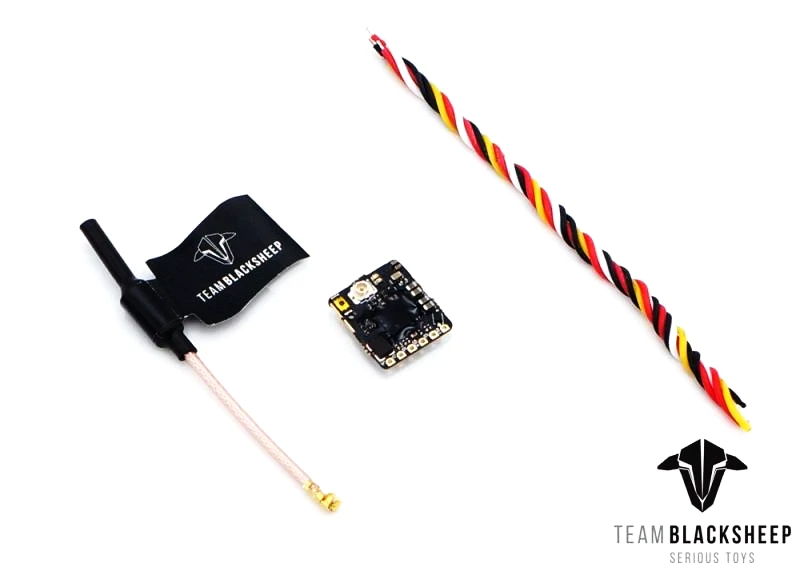

     INCLUDES:

    (1) TBS Unify Pro32 5G8 Video transmitter
    (1) Silicone Cable Set (pre-tinned)
    (1) Linear Whip Antenna
    (1) Shrink Tube

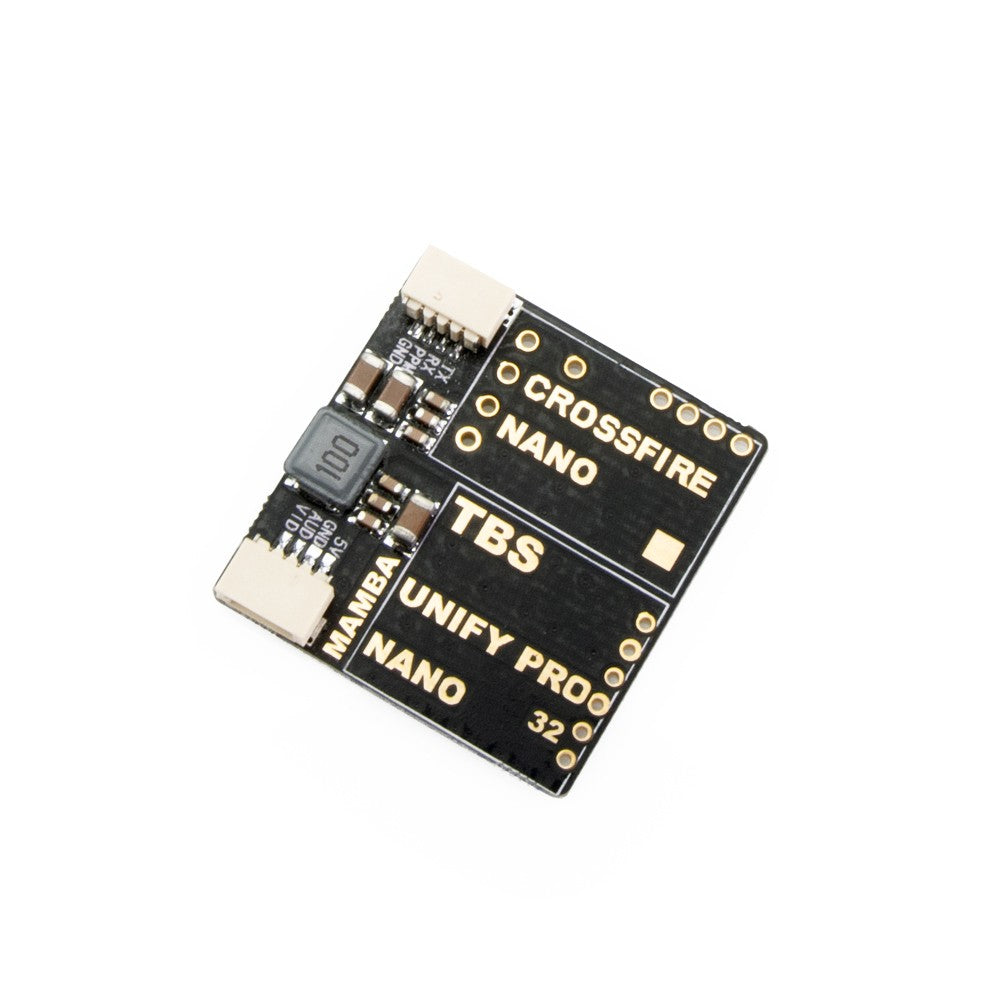

    (1) 20x20 Adapter Board


    NOTES:

    • 100mW, 400mW & 500mW output power and certain channels only work when VTx is unlocked. HAM license is required for operation on HAM channels, and HAM power levels above 25mW. The VTx ships with only legal channels enabled, please consult the manual on the unlocking procedure.
