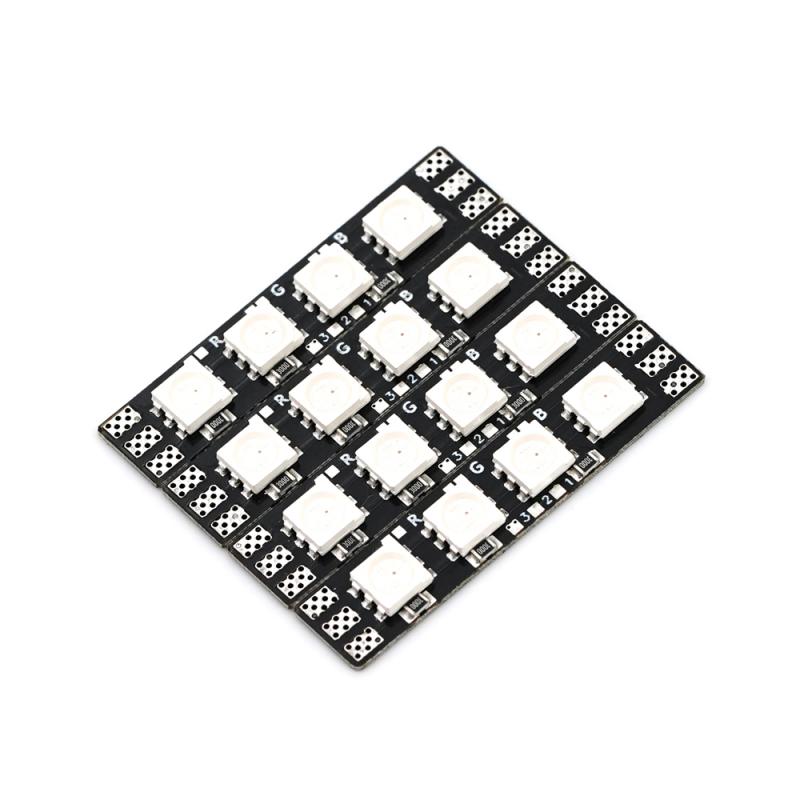

TinysLEDs RaceLiteWire (Full Size / 4-Light RGB / 4pcs)

Make your drone stand out with these RaceLiteWire LEDs that illuminate when the motors spin up.

FEATURES:

• Brightness changes with throttle input
• Integrated Racewire with Racelites
• Can be installed in any direction
• Extra pads available to wire up additional Racelites to the bottom of your arms

SPECIFICATIONS:

• Dimensions: 8 x 40mm
• Voltage: 4-6S
• Color: Variable based on pads soldered (see below chart)


COLOR SELECTION INSTRUCTIONS:

Key for Color Chart Below:

• Not Soldered=  -
• Soldered=  |

Blue Pad / Red Pad / Green Pad

• Yellow:           - | |
• White:            | | |
• Cyan:             | - |
• Green:           - - |
• Blue:             | - -
• Red:               - | -
• Pink/Purple:   | | -

INCLUDES:

(4) RaceLiteWire LEDs

NOTES:

• Be sure to insulate the bottom of the boards so they don't come in direct contact with the carbon fiber. Also, to wire up additional Racelites to the bottom of your arms, just use the pads labeled "1,2,3" and wire them to the same pads on the under-arm LEDs.
