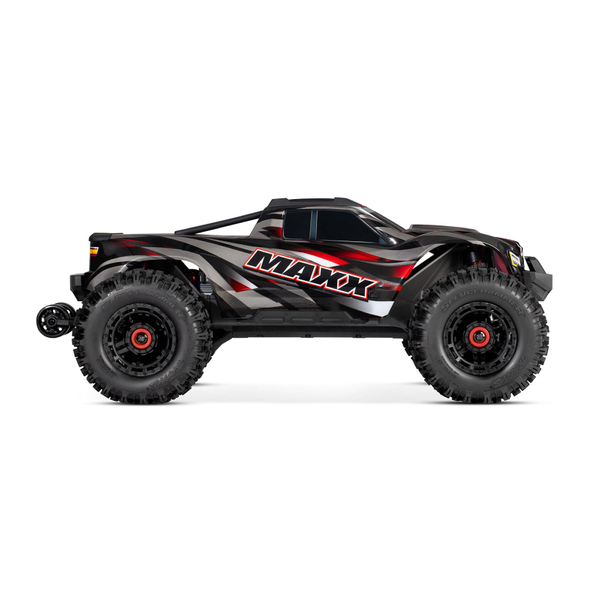

The Traxxas X-Maxx® is a giant that forever changed the face of RC monster trucks. Its radical cutting-edge design, massive size, brutal strength, and unmatched power transformed X-Maxx into the stuff of legends. The 1/10 Traxxas Maxx® expertly packages X-Maxx’s innovative design elements and jaw-dropping strength into a lighter, more compact, even more ferocious beast. Now the newest Maxx is even bigger, with a longer wheelbase, beefier Sledgehammer® tires, and that incredible WideMaxx® stance for even more intense action. Let the fun begin!
FEATURES:
- Upgraded WideMaxx® double-shear suspension arms, engineered to optimize suspension travel and steering angles
- Tough new composite formula resists impact damage, even in cold weather
- VXL-4s™ Waterproof Electronic Speed Control
- 3S–4S LiPo compatible
- 55+ MPH out of the box using single 4S LiPo battery (sold separately)
- 60+ MPH with optional gearing and single 4S LiPo battery (sold separately)
- Traxxas Stability Management™
- TQi 2.4GHz 5-channel micro receiver (#6533) with fail-safe security and integrated telemetry ports
- Clipless Body Mount System - Quick one-hand installation and removal
- Heavy-Duty Steering Bellcranks and Servo
REQUIRED:
(1) 3-4S LiPo Battery
(1) LiPo Battery Charger
(4) AA Batteries for Transmitter
SPECIFICATIONS:
Maxx with WideMaxx Suspension Kit:
- Model# 89086-4
- Color: Red or Rock N Roll
- Length: 22.50" (572mm)
- Front Track: 15.95" (405mm)
- Rear Track: 15.95" (405mm)
- Ground Clearance (Lowest Skid): 1.90" (49mm)
- Ground Clearance (Center Skid): 2.6" (67mm)
- Weight: 10.40lbs (4.7kg)
- Height (ride): 9.12" (232mm)
- Wheelbase: 13.55": (353mm)
- Shock Length: 4.90" (124mm)
- Tire Diameter: 5.64" (143mm)
- Wheels Diameter: 2.8 / 3.6" (70 / 92mm)
- Wheel Hex Size: 17mm Keyed Wheel Hex
- Speed Control: Velineon VXL-4S
- Motor (Electric): 540XL (2400KV)
- Transmission: Single Speed
- Overall Drive Ratio: 12.37 (23/50 Motor pinion, and spur gear)
- Differential Type: Sealed, hardened steel bevel, limited slip
- Gear Pitch: Module 1.0
- Chassis Structure / Material: Composite Modular Tub
- Brake Type: Electronic
- Drive System: Shaft-driven 4WD
- Steering: Double-shear bellcrank
- Top Speed: 60+ MPH (w/ 4S Lipo Battery & Optional Gear)
VXL 4S ESC:
- Input Voltage: 3S–4S LiPo (11.1V – 16.8V)
- Case Size: 2.83 inches (72mm) x 2.32 inches (59mm) x 1.93 inches (49mm)
- Weight: 201g (7.09oz)
- BEC Voltage: 6.0V
- BEC Current Continuous: 10A
- BEC Current Peak: 20A
- Motor Connectors: Traxxas 6.5mm bullet connectors
- Battery Connectors: Traxxas High-Current Connectors
- Power Wire: 10AWG Maxx Cable
- Ports: RX input, auxiliary fan, Traxxas accessory port
HELPFUL LINKS:
INCLUDES:
(1) Traxxas 1/10 Maxx 4WD Electric Monster Truck (with WideMaxx Upgrade)
(1) TQi™ 2.4GHz Radio Transmitter
(1) Tool Set
(1) User Manual
