Traxxas 1/10 Maxx with WideMaxx 4WD Electric Monster Truck (Brushless / Multiple Colors / ARR)

The Traxxas X-Maxx^® is a giant that forever changed the face of RC monster trucks. Its radical cutting-edge design, massive size, brutal strength, and unmatched power transformed X-Maxx into the stuff of legends. The 1/10 Traxxas Maxx^® expertly packages X-Maxx’s innovative design elements and jaw-dropping strength into a lighter, more compact, even more ferocious beast. Now the newest Maxx is even bigger, with a longer wheelbase, beefier Sledgehammer^® tires, and that incredible WideMaxx^® stance for even more intense action. Let the fun begin!

FEATURES:

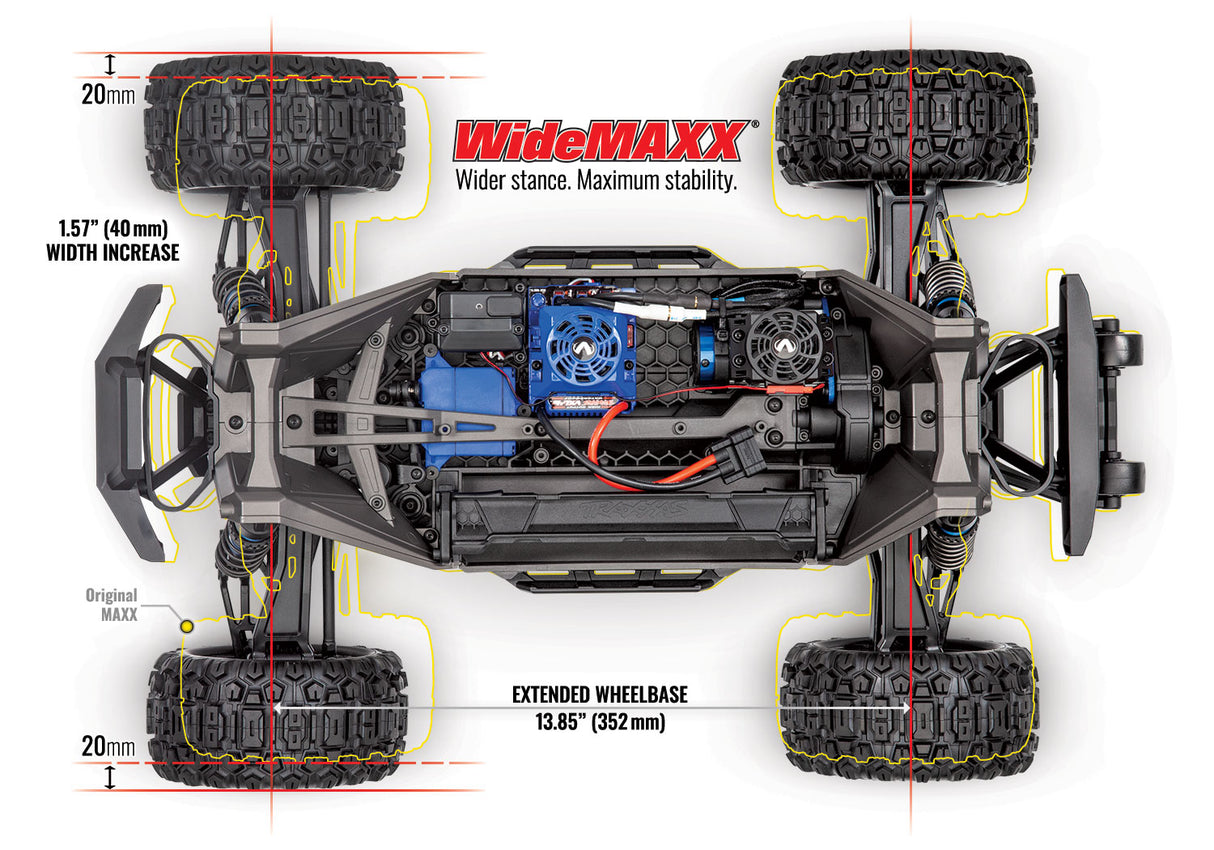

• Upgraded WideMaxx® double-shear suspension arms, engineered to optimize suspension travel and steering angles
• Tough new composite formula resists impact damage, even in cold weather
• VXL-4s™ Waterproof Electronic Speed Control
• 3S–4S LiPo compatible

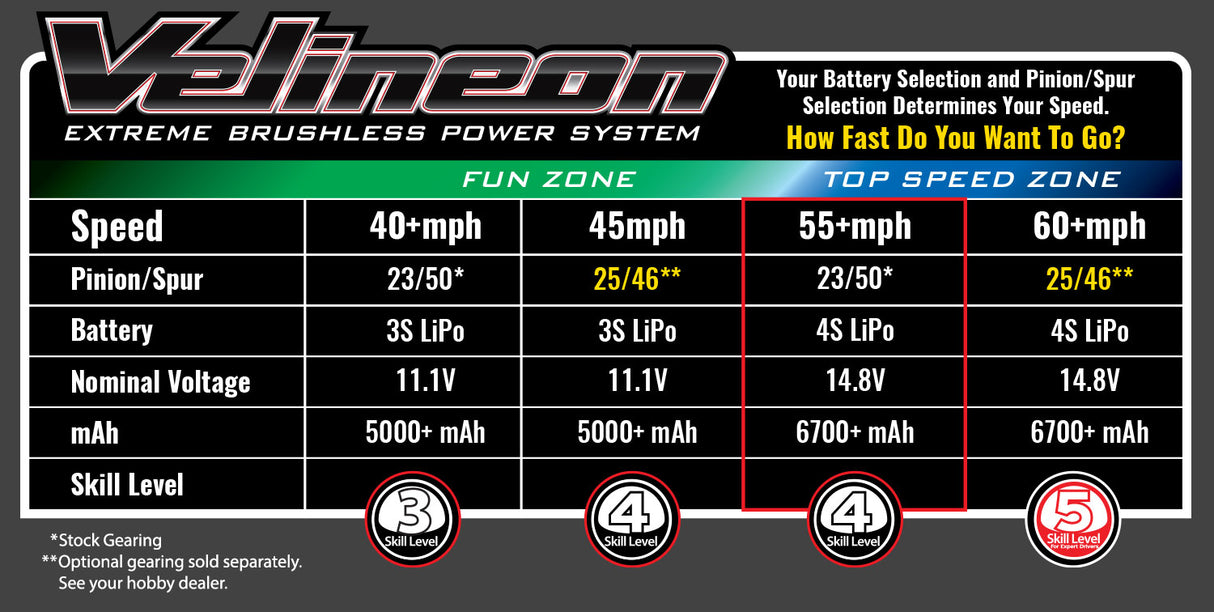

• 55+ MPH out of the box using single 4S LiPo battery (sold separately)
• 60+ MPH with optional gearing and single 4S LiPo battery (sold separately)
• Traxxas Stability Management™
• TQi 2.4GHz 5-channel micro receiver (#6533) with fail-safe security and integrated telemetry ports
• Clipless Body Mount System - Quick one-hand installation and removal
• Heavy-duty steering Bellcranks and Servo

REQUIRED:

(1) 3-4S LiPo Battery
(1) LiPo Battery Charger
(4) AA Batteries for Transmitter

SPECIFICATIONS:

Maxx with WideMaxx Suspension Kit:

• Model# 89086-4

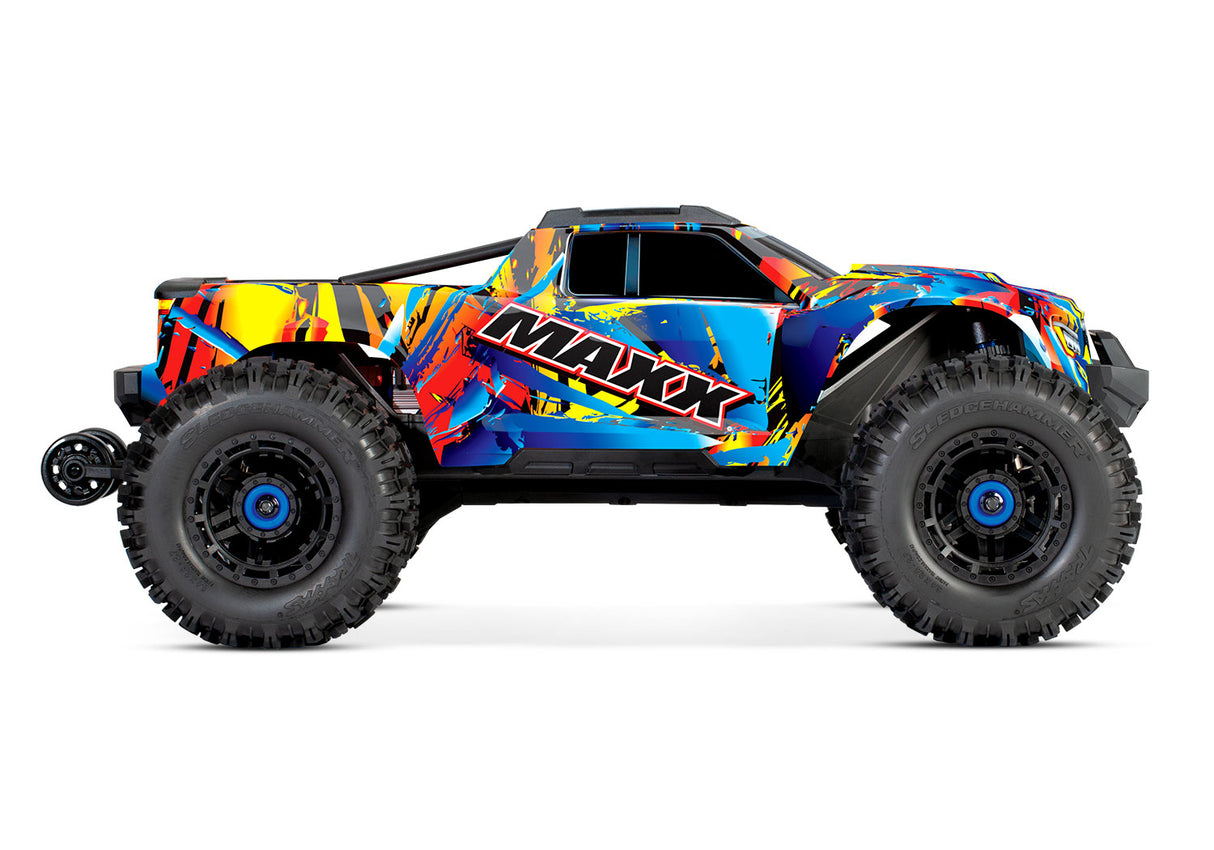

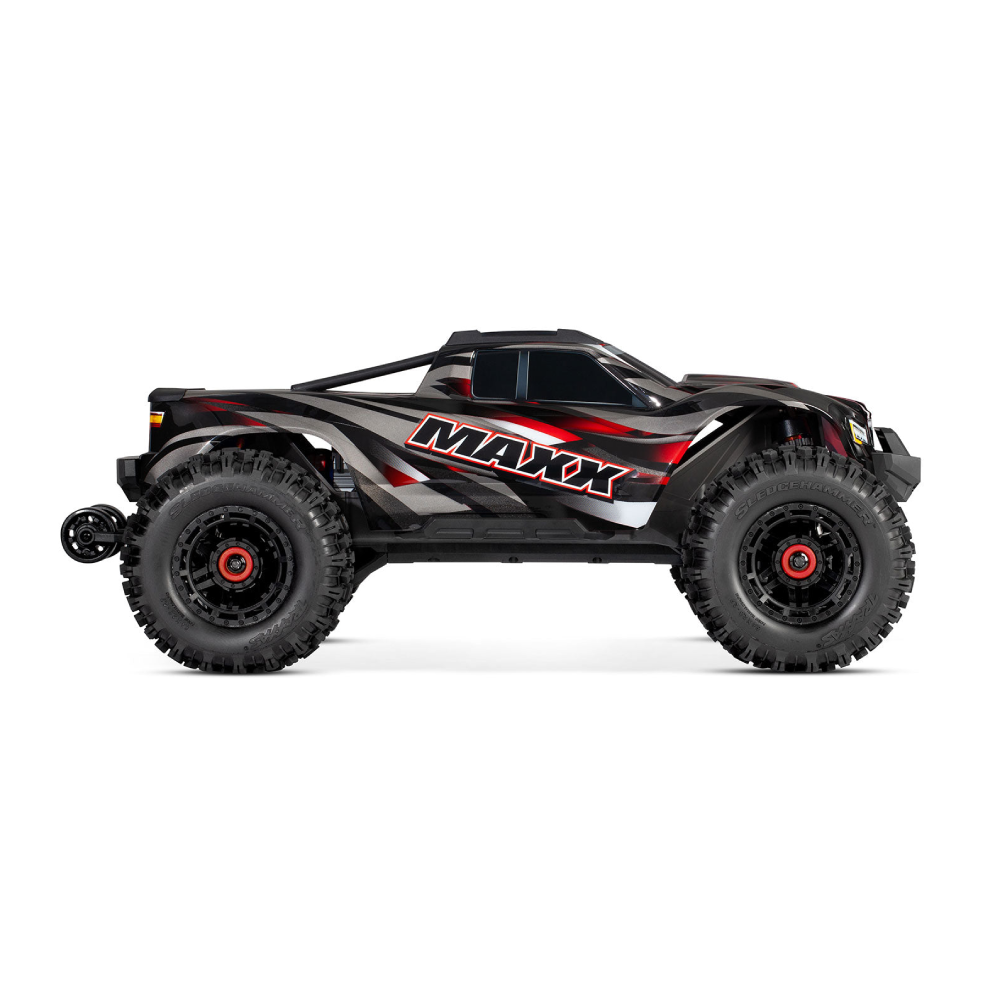

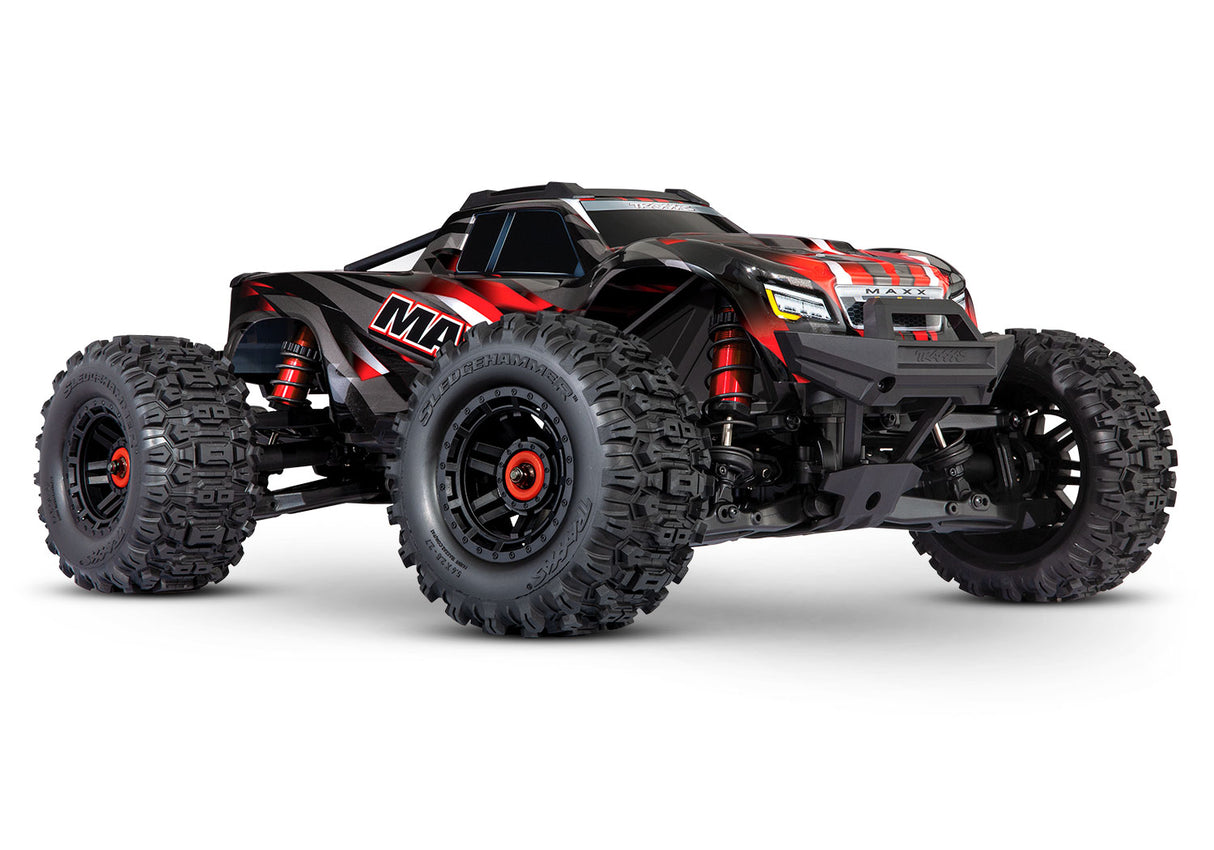

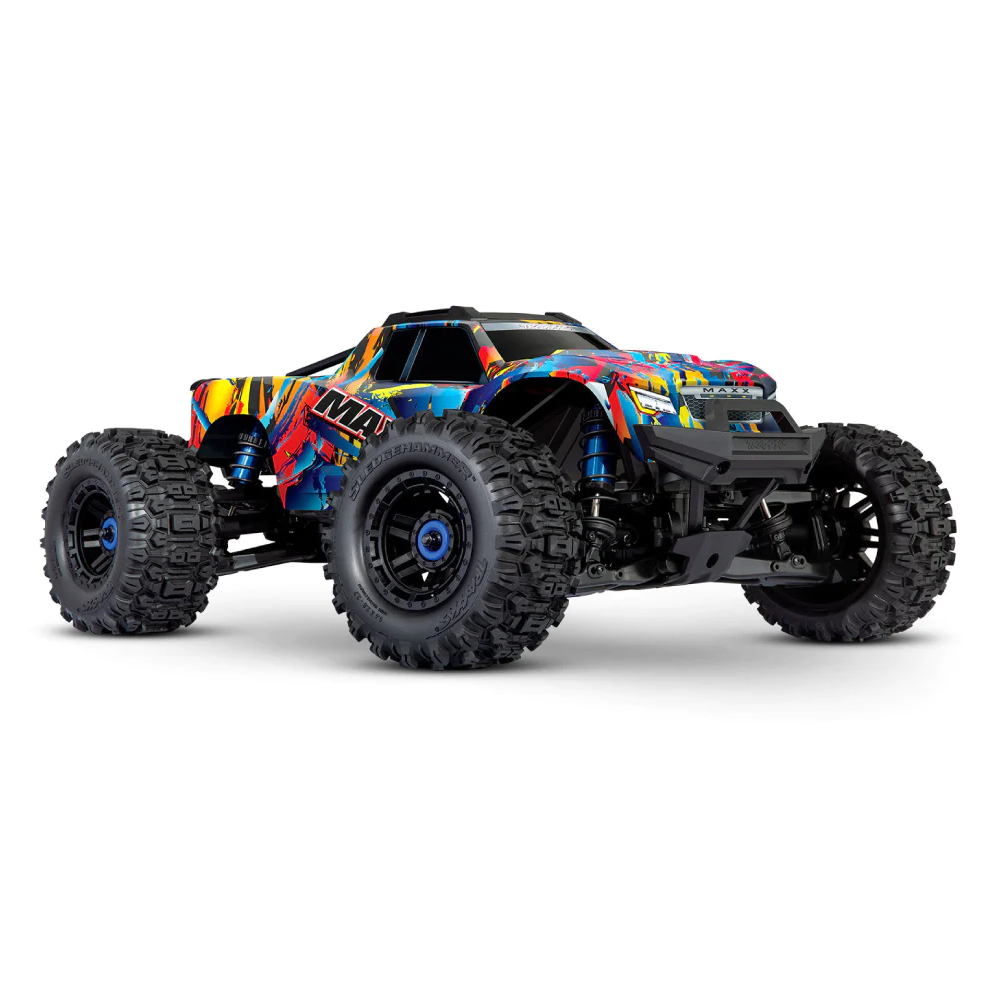

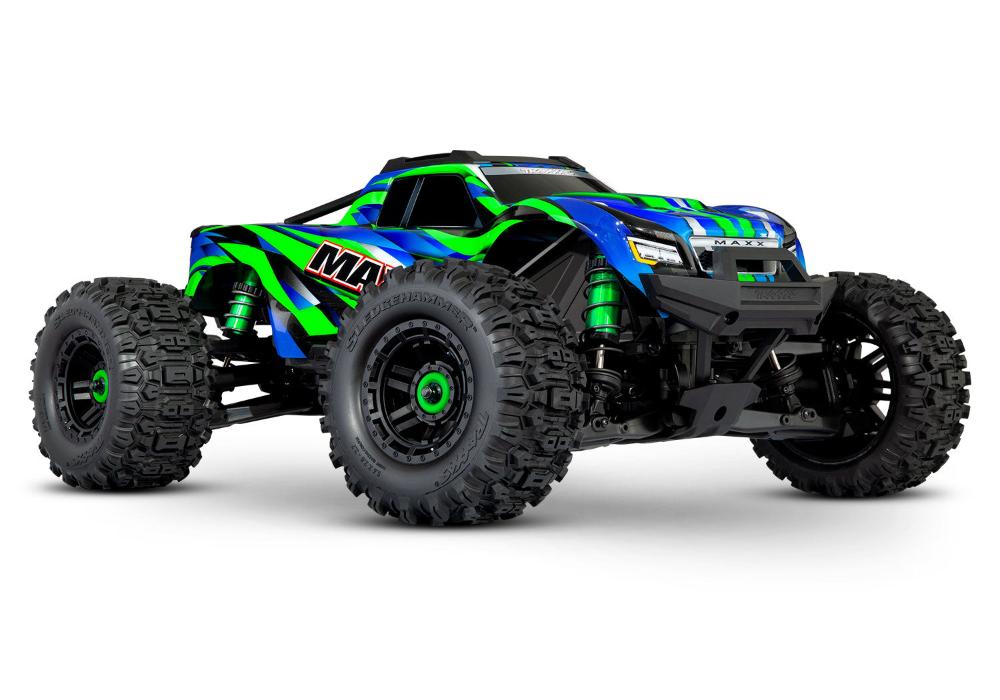

• Color: Red, Blue, Green or Rock N Roll
• Length: 22.50" (572mm)
• Front Track: 15.95" (405mm)
• Rear Track: 15.95" (405mm)
• Ground Clearance (Lowest Skid): 1.90" (49mm)
• Ground Clearance (Center Skid): 2.6" (67mm)
• Weight: 10.40lbs (4.7kg)
• Height (ride): 9.12" (232mm)
• Wheelbase: 13.55": (353mm)
• Shock Length: 4.90" (124mm)
• Tire Diameter: 5.64" (143mm)
• Wheels Diameter: 2.8 / 3.6" (70 / 92mm)
• Wheel Hex Size: 17mm Keyed Wheel Hex
• Speed Control: Velineon VXL-4S
• Motor (Electric): 540XL (2400KV)
• Transmission: Single Speed
• Overall Drive Ratio: 12.37 (23/50 Motor pinion, and spur gear)
• Differential Type: Sealed, hardened steel bevel, limited slip
• Gear Pitch: Module 1.0
• Chassis Structure / Material:  Composite Modular Tub
• Brake Type: Electronic
• Drive System: Shaft-driven 4WD
• Steering: Double-shear bellcrank
• Top Speed: 60+ MPH (w/ 4S Lipo Battery & Optional Gear)

VXL 4S ESC:

• Input Voltage: 3S–4S LiPo (11.1V – 16.8V)
• Case Size: 2.83 inches (72mm) x 2.32 inches (59mm) x 1.93 inches (49mm)
• Weight: 201g (7.09oz)
• BEC Voltage: 6.0V
• BEC Current Continuous: 10A
• BEC Current Peak: 20A
• Motor Connectors: Traxxas 6.5mm bullet connectors
• Battery Connectors: Traxxas High-Current Connectors
• Power Wire: 10AWG Maxx Cable
• Ports: RX input, auxiliary fan, Traxxas accessory port

HELPFUL LINKS:

• Maxx User Manual
• Exploded Views


INCLUDES:

(1) Traxxas 1/10 Maxx 4WD Electric Monster Truck (with WideMaxx Upgrade)
(1) TQi^™ 2.4GHz Radio Transmitter
(1) Tool Set
(1) User Manual

Installed:
(1) Traxxas 540XL brushless motor
(1) VXL-4s waterproof electronic speed control with integrated telemetry
