ntroducing TRX-4M, a new way to experience all the fun, adventure, and scale realism of the TRX-4 in a 1/18 platform. TRX-4M bridges the gap between the small crawler scene and 1/10 scale quality and performance. Oil-filled shocks, steel frame rails, and a smooth-running drivetrain give it true outdoor capability over rocks and through grass and streams. The tight turning radius and precise throttle control give it fantastic indoor maneuverability.
TRX-4M is the perfect size to fit in a backpack for fun on the go. It’s small, powerful, and maneuverable so just about any space becomes an instant trail or crawling course. Whether it’s a mountain of books indoors or a rock garden in the backyard, TRX-4M is always ready for big fun and adventure.
TRX-4M is equipped to take on tough off-road terrain with grippy soft-compound tires, precision-engineered 4-link suspension geometry, and smooth oil-filled shocks. High center ground clearance, big approach angles, and low CG give the TRX-4M impressive capability everywhere it goes.
FEATURES:
- Clipless ABS Body
- ECM-2.5™ Electronic Control Module
-
TQ™ 2.4GHz Transmitter
- Powerful Titan® 87-turn brushed motor
- Heavy-Duty Steel Ladder Frame
- Full-time shaft-driven 4-wheel drive
- Heavy-duty CV center driveshafts
- Heavy-duty 2065T steering servo
- Metal main gear
- Canyon AT (Defender) Tires and Wheels
-
High-capacity 2-cell LiPo battery included
- 2-amp USB-powered fast charger included
REQUIRED:
(4) AA Batteries for Transmitter
SPECIFICATIONS:

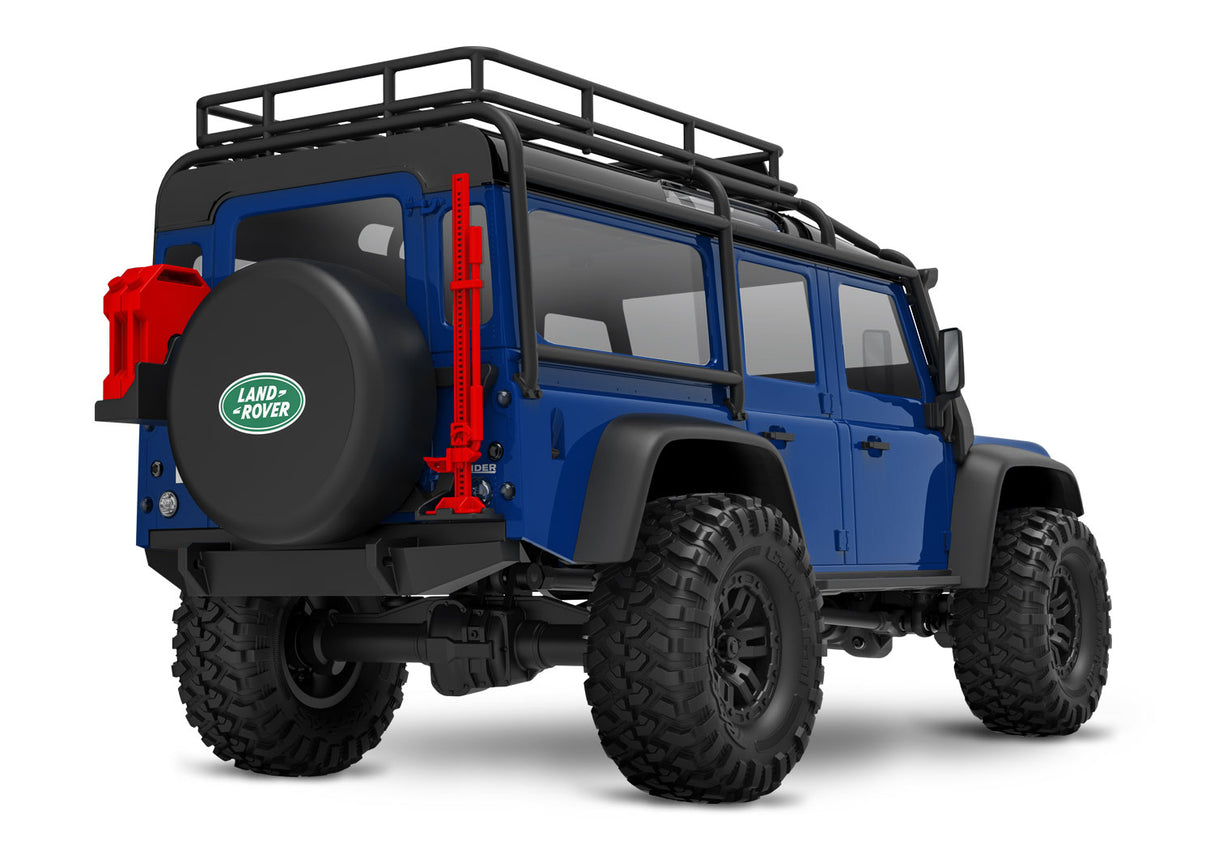

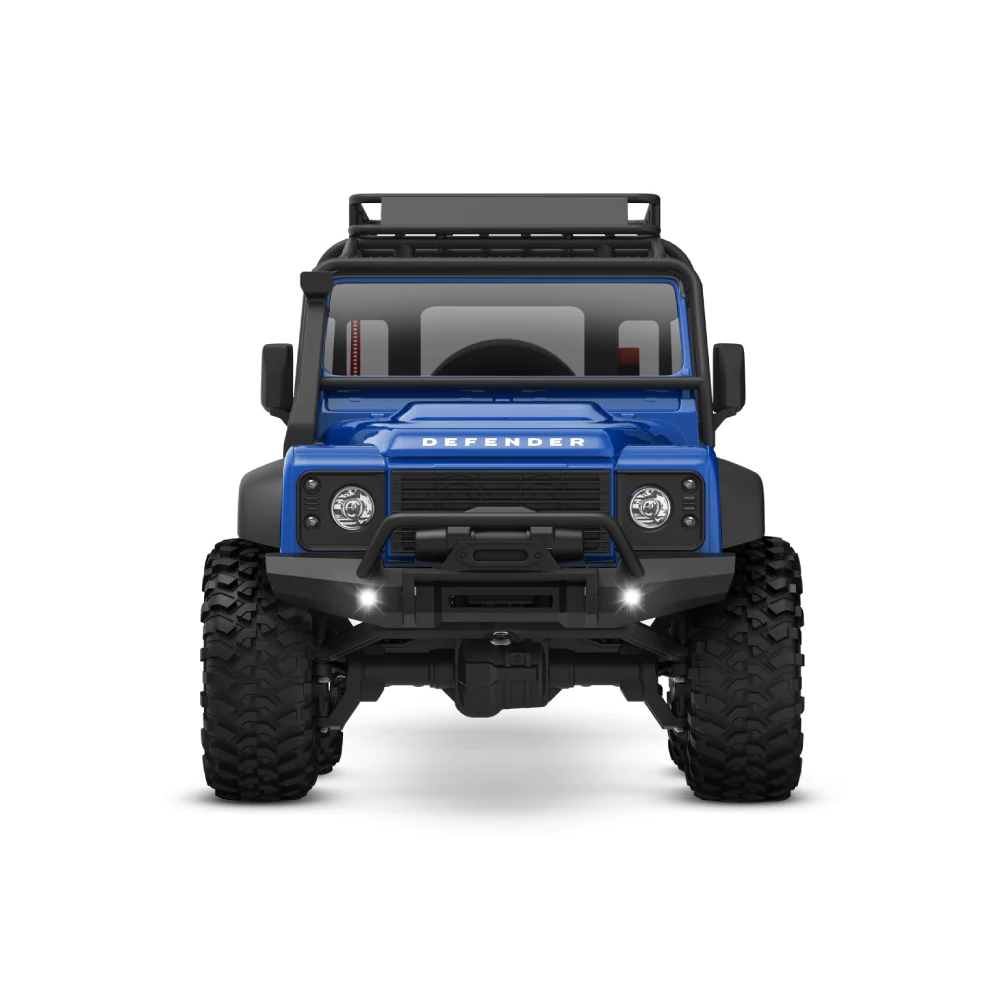

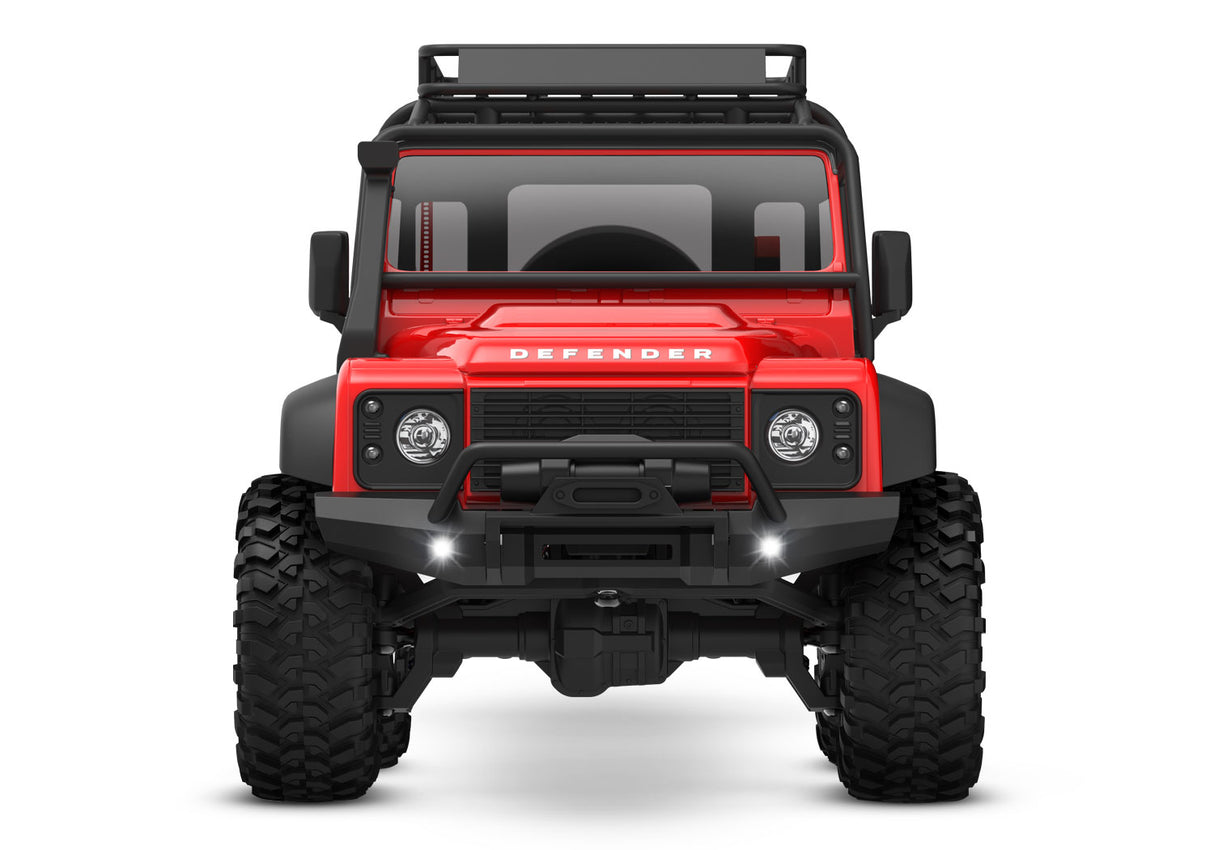

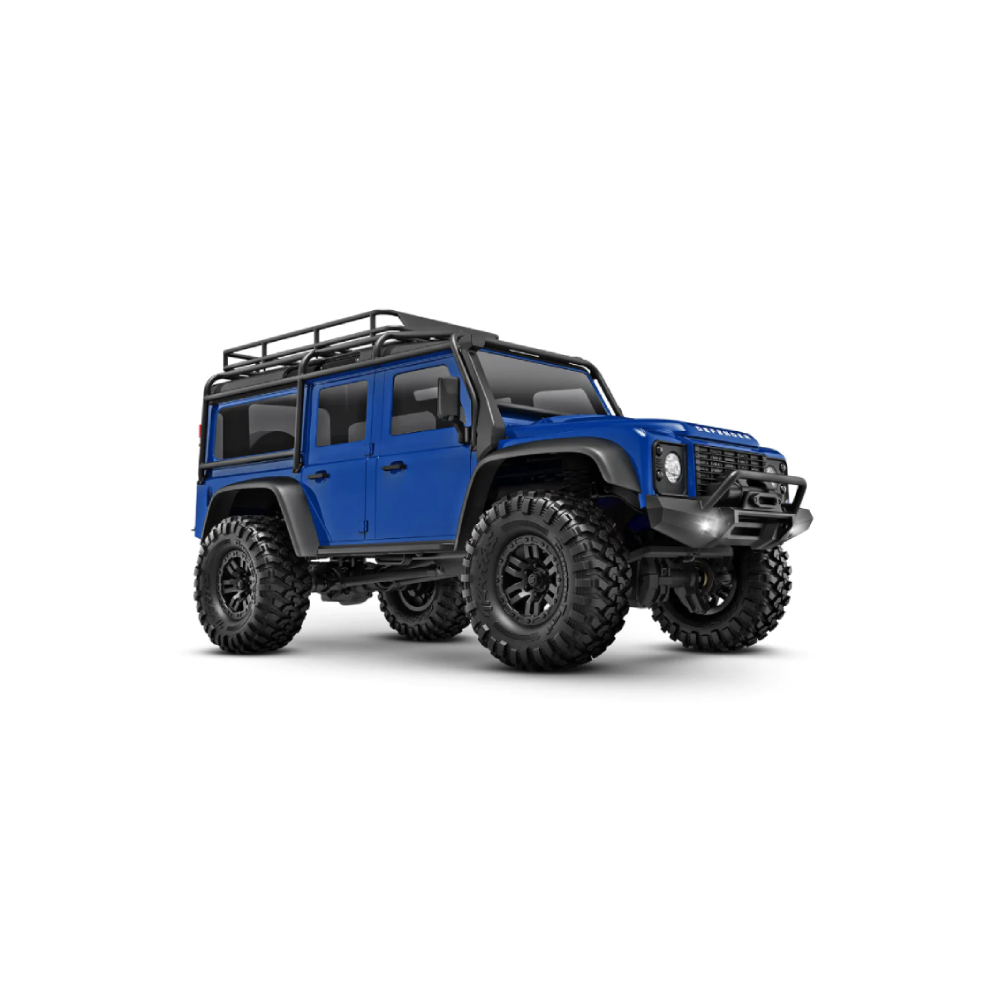

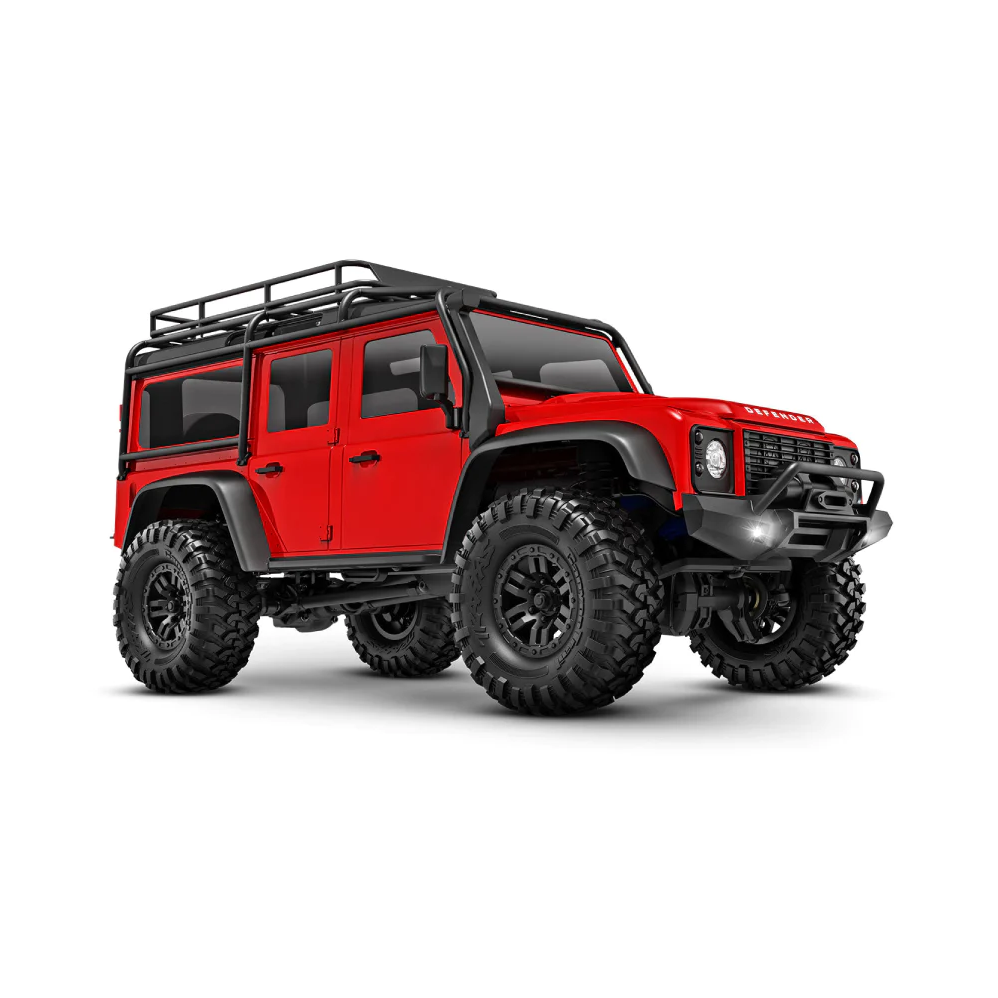

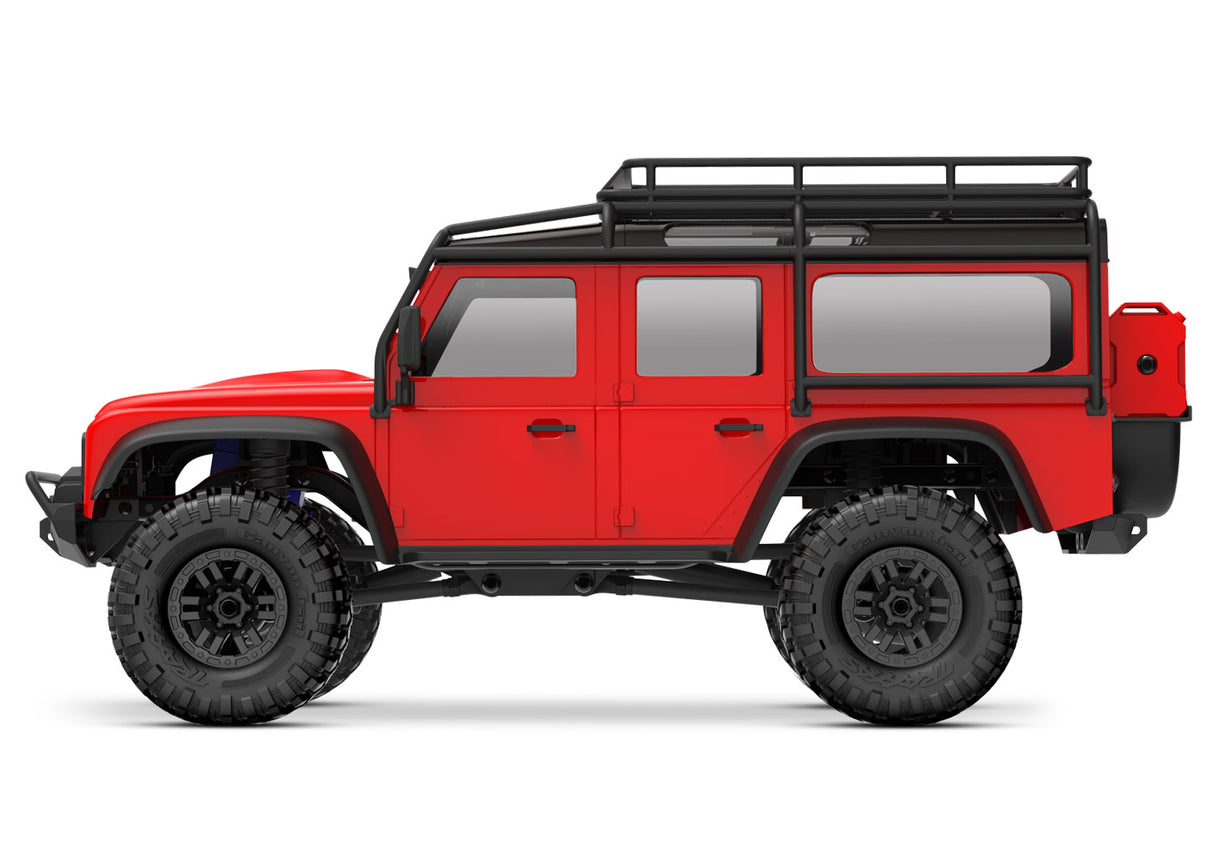

Land Rover Defender:
- Part# 97054-1
- Length: 11 inches (279mm)
- Front Track: 4.9 inches (124mm)
- Rear Track: 4.9 inches (124mm)
- Ground Clearance: 1.12 inches (29mm)
- Height: 5.3 inches (135mm)
- Wheelbase: 6.10 inches (155mm)
- Shock Length (front and rear): 2.0 inches (51mm)
- Wheel Hex Size: 7mm
- Wheels (front and rear): 1.0 x 0.49 inches (25.4 x 12.5mm)
- Tires (front and rear): 2.2 x 1.0 inches (57 x 25.4mm)
- Electronic Control Module: ECM-2.5™ (Combo ESC, Receiver, Lighting Control*)
- Motor (electric): Titan® 180 87T

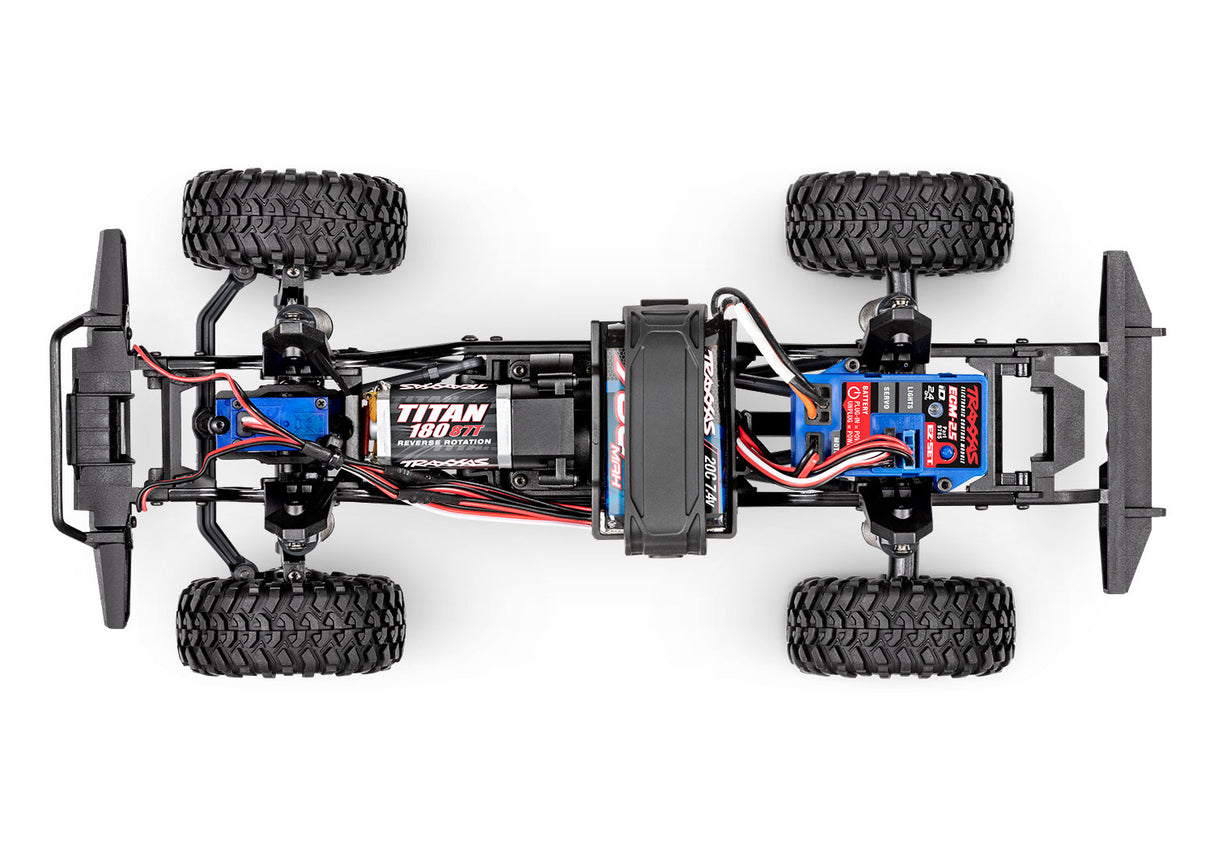

- Drive System: Shaft-Driven 4WD
- Radio System: TQ™ 2.4GHz 2-Channel Transmitter
- Battery: 2S / 750mAh / 20C LiPo Battery
- Battery Tray: 50.5mm L X 31mm W

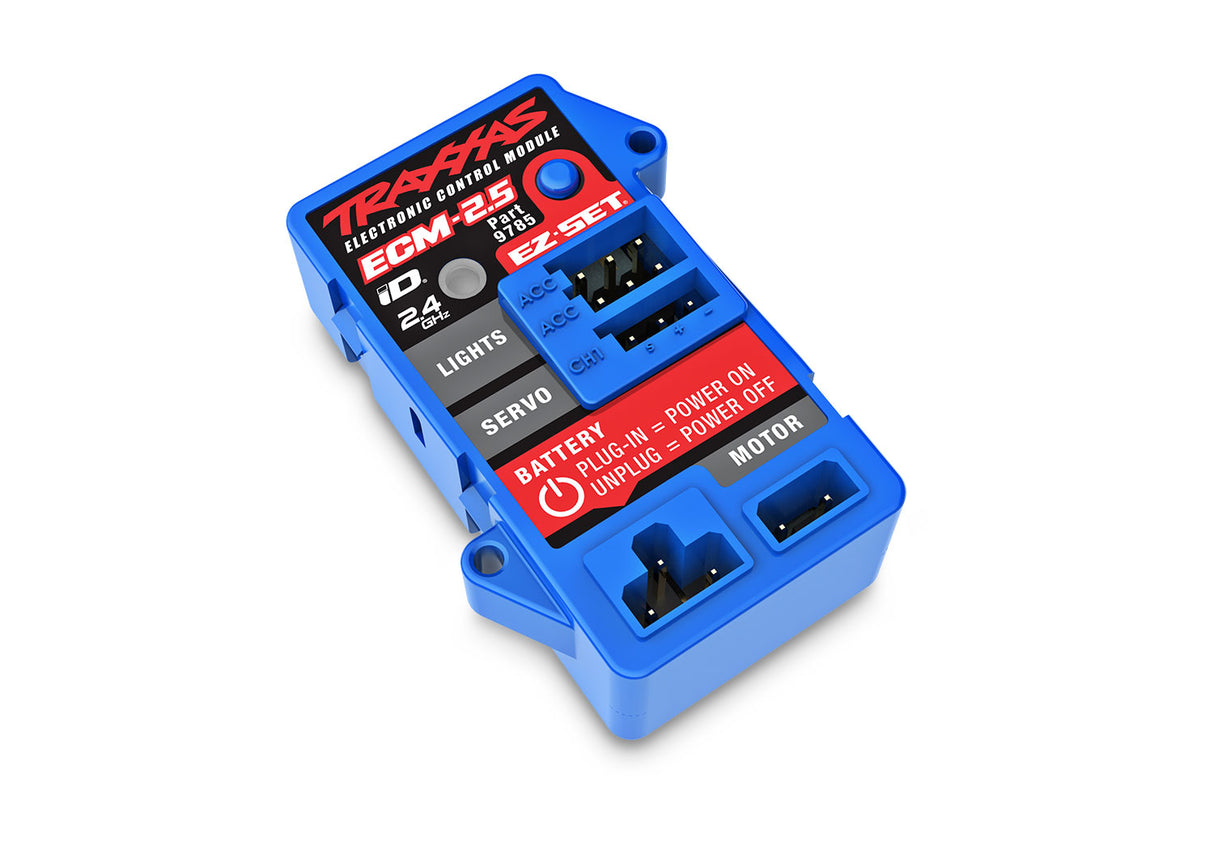

Motor & ECM:
- Motor Type: Brushed
- Size: 180
- Turns: 87T reverse rotation
- Voltage: 8.4V
- ECM Input Voltage: 2S LiPo
- Case Size: 1.26in W x 1.79in D x 0.60in H
- BEC Voltage: 6.0 VDC
- BEC Current: 1A
- Low Voltage Detection (LVD): 2-Stage
- Transistor Type: MOSFET
- Motor Overload Protection: 2-Stage
- Profile Selection:
- Sport Mode:
100% FWD, 100% Brakes, 100% REV - Trail Mode:
100% FWD, 100% Brakes, 100% REV, Trail-Tuned Brake on Neutral - Crawl Mode:
100% FWD, 100% Instant REV, 100% Brake on Neutral
HELPFUL LINKS:
- Land Rover Defender Manual
- Body Assembly Exploded View
- Chassis Assembly Exploded View
- Front Assembly Exploded View
- Rear Assembly Exploded View
INCLUDES:
(1) Traxxas 1/18 TRX-4M Land Rover Defender Crawler
(1) TQ™ 2-channel 2.4GHz radio system
(1) Traxxas 2S / 750mAh / 20C LiPo Battery
(1) Traxxas iD Balance Charger
(1) ECM-2.5 Electronic Control Module (Installed)
(1) Titan® 180 87T motor (Installed)
(1) Quality tool set
(1) Quick Start Guide
