Traxxas High-Intensity LED Light Kit for Maxx

Regular price $99.99

Free Pickup option available at our storefront in Jacksonville, Florida. Shipping also available to all 50 US States & Territories. See Shipping Policy for shipping cutoff times.

Leave it to Traxxas to design an LED light kit worthy of the Maxx’s extreme performance. Built to handle brutal real-world punishment, this light kit is waterproof and built Traxxas Tough™ for maximum fun. Blaze a path through the night with this intense-white high-output LED light kit.

Traxxas innovation delivers features and performance not found on any other lighting system. The included high voltage amplifier packs the muscle to efficiently power the high-power light bar, while minimizing losses from excessive current and heat. The tightly regulated output provides stable lighting performance, without flickering or dimming as the battery voltage changes. The smart brake lights work when brakes are applied in both forward and reverse directions. This eliminates the common and annoying problem with generic aftermarket systems that turn on the brake lights while reversing.

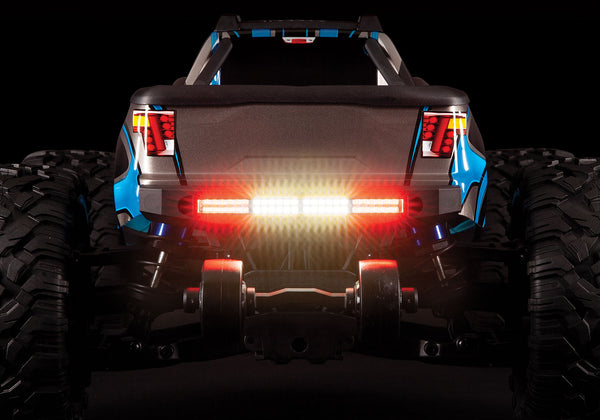

  • Fully functioning brake lights that work
    in both forward and reverse direction
  • Fully waterproof
  • Three default lighting modes controlled from the power amplifier
  • Low and high beam brightness settings
  • Easy to install with simplified, concealed, color-coded wiring
  • Includes front and rear bumpers with LED cutouts
  • High-voltage power amplifier (#6590) for intense, brilliant LED lighting is compatible with the Velineon VXL-4S ESC
  • Power amplifier transforms and regulates the battery current to for reliable high-power performance and provides stable lighting performance to prevent flickering or dimming as the battery voltage fluctuates. It does this by using the Power Port on the ESC to tap power directly from the batteries, rather than draw valuable power away from the BEC.
  • Firmware updatable through the app

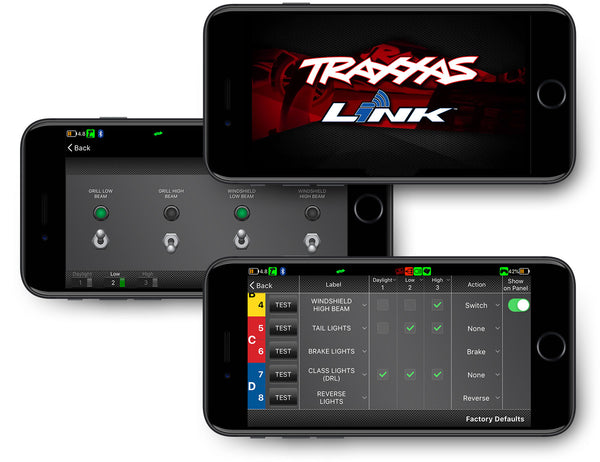

  • App-controlled lighting functions to:
    - Turn lights on/off remotely
    - Build a custom dashboard
    - Customize lighting configurations and actions
    - Add additional lighting components
  • Customize your setup with three different lighting modes on the amplifier. Use the Traxxas Link App* to further customize the lighting modes to your specifications or turn the lights on and off directly in the app. The kit includes all mounting hardware to make installation a breeze.



    • Part#: 8990
    • Bumper Color: Black
    • Power Amplifier: Included



    Plug the main connector from the power amplifier into the power port on the Traxxas VXL-4s Electronic Speed Control, and then plug the individual lighting modules into the power amplifier. Switch between three manual lighting modes on the power amplifier (such as high beam and low beam), or use the Traxxas Link app and Wireless Module (#6511*) to control individual lights remotely and create custom lighting configurations. Of course, since it’s from Traxxas, this powerful, feature-rich system is rugged and fully waterproof for all of your exciting RC adventures.

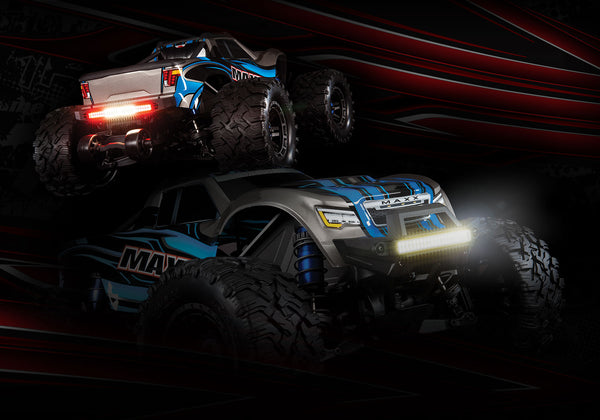

    (1) High-output front LED light bar
    (1) Multi-function rear LED light bar
    (2) Replacement Bumpers with LED cutouts
    (1) High-voltage 8-channel power amplifier (#6590)
    (1) Set of Mounting Hardware and Ties



    • LED Light Kit Only. Maxx shown in pictures, not included.
    • Using the wireless module requires the Traxxas Link App (available in the Apple App Store™ or on Google Play™) and TQi transmitter with the Traxxas Link Wireless Module (part #6511, sold separately).



    Sold Out
