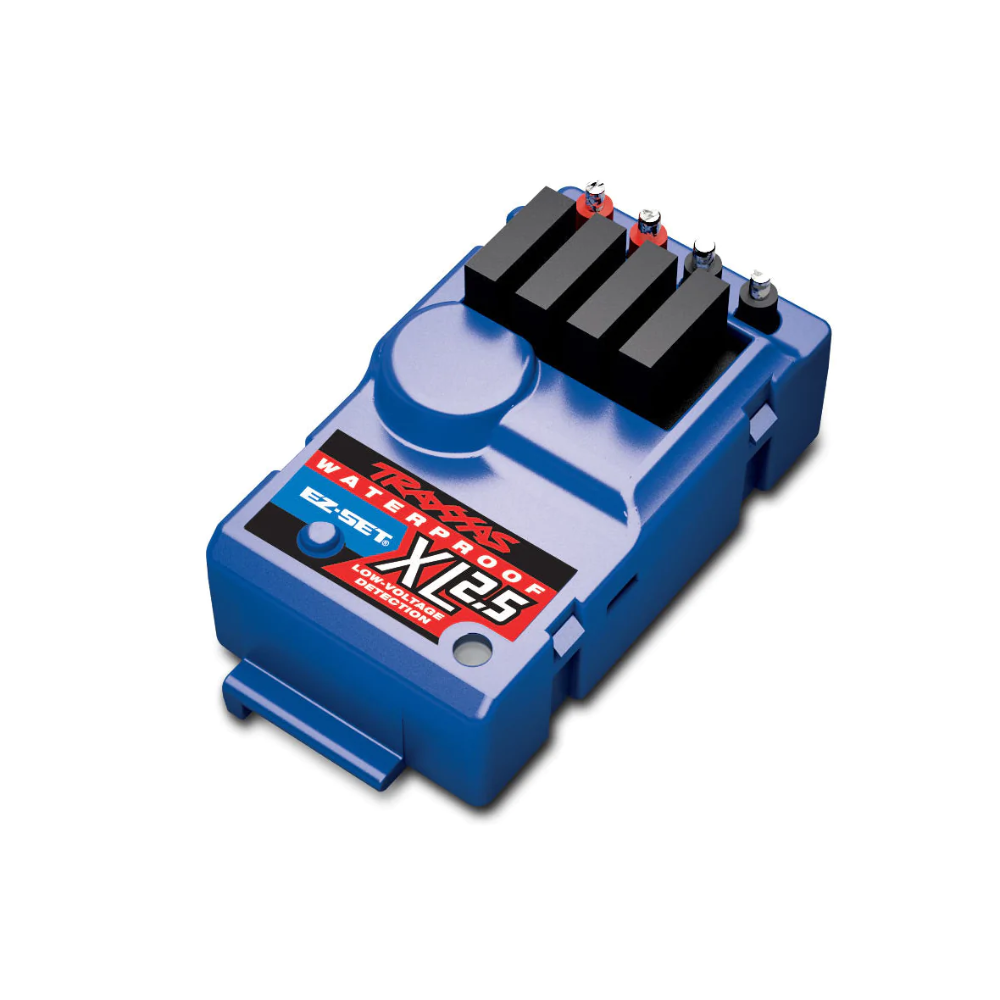

Traxxas XL-2.5 Waterproof Brushed ESC w/ Low Voltage Detection

This high-performance, XL-2.5 Electronic Speed Control delivers smooth throttle control in 1/16 scale and smaller models and is completely waterproof for all-weather R/C driving fun. It's packed with impressive specifications that are typically only found on more expensive, high-end, replacement units. Plus, the XL-2.5 features three throttle profiles, Thermal Shutdown Protection, 4-7 cell NiMH and 2-cell LiPo compatibility, and a built-in BEC. High-frequency operation combined with ultra-low resistance makes the XL-2.5 an efficient and ultra-smooth fully proportional speed control that's also equipped with two-stage low-voltage detection (LVD) to allow LiPo battery use.

FEATURES:

• Built-in two-stage low voltage detection (LVD) for Lithium Polymer (LiPo) battery use
• Innovative waterproof design
• 12-turn motor limit for 550 size motors
• 10-turn motor limit for 380 size motors
• Fully proportional forward, reverse, and braking control
• Programmable with three drive profiles:
• Sport Mode – Fwd / Brake / Rev
• Race Mode – Fwd / Brake
• Training Mode* – 50% Fwd / Brake / 50% Rev
• EZ-Set® push-button setup
• Multi-color LED
• Thermal shutdown protection
• Efficient, low-loss MOSFET design
• High-capacity heat sink
• Smooth, high-frequency operation
• Easy installation in Traxxas models
• Backed by the Traxxas Lifetime Electronics Warranty

COMPATIBILITY:

• 1/16 E-Revo® 4WD
• 1/16 Slash 4WD
• 1/16 Summit™ 4WD

SPECIFICATIONS:

• Part# 3024R
• LiPo Input Voltage: 2-Cells LiPo (4.8V - 8.4V DC)
• NiMH Input Voltage: 4-7 Cells NiMH
• Case Size: 26.5mm x 46.5mm x 22mm (WxDxH)
• Weight: 33g
• Motor Limit: 10-turns**
• On Resistance (@Trans): 0.008 Ohms
• Reverse Delay: None
• BEC Voltage: 6.0V DC
• Power Wire: 16 Gauge / 40mm
• Input Harness Wire: 26 Gauge / 130mm
• Motor Wires: 26 Gauge / 130mm
• Transistor Type: MOSFET
• PWM Frequency: 2300 Hz
• Low-Voltage Detection (LVD): ­ 2-Stage indicators, switchable (on or off)
• Thermal Protection: Thermal shutdown
• Profile selection:
• Sport Mode: 100% FWD, 100% brakes, 100% REV
• Race Mode: 100% FWD, 100% brakes, no REV
• Training Mode: *50% FWD, 100% brakes, 50% REV
• Single-button setup: Yes, Traxxas EZ-Set®


HELPFUL LINKS:

• XL-2.5 ESC Manual
• ESC Programming Instructions (This link will redirect you to the Traxxas Website)

INCLUDES:

(1) Traxxas XL-2.5 Waterproof Brushed ESC

NOTES:

• The XL-2.5 is manufactured by Traxxas to ensure the highest level of quality and support. The XL-2.5 is backed by the Traxxas Lifetime Electronics Warranty.
