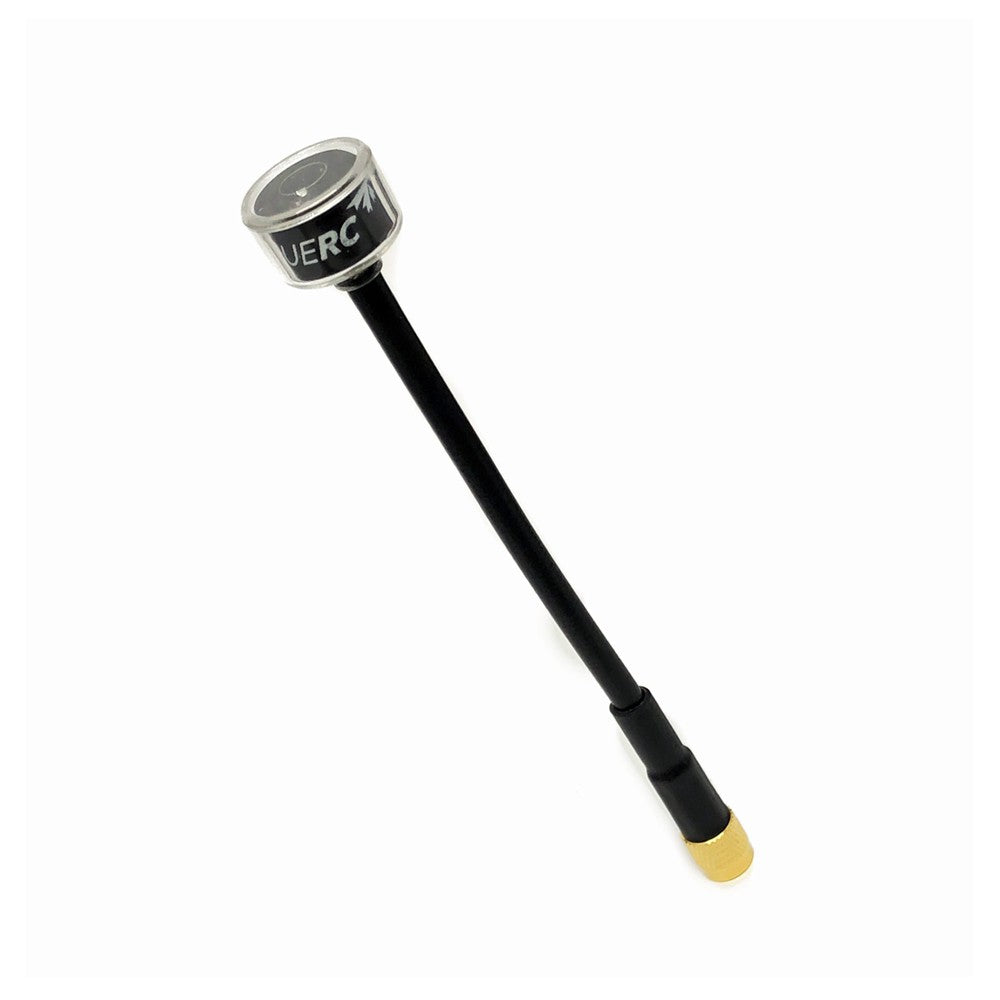

The OCP 5.8 is TrueRC's new everyday omni antenna. It's a durable antenna, with a proven design, great signal, and it looks amazing.
FEATURES:
- Durable polycarbonate, injection-molded, ultra-sonically welded housing
- Clear indication of polarization direction
- Excellent axial ratio and efficiency
- Flexible coax cable option that deflects impacts
- Ideal for Goggle and ground-stations or long-range copters
SPECIFICATIONS:
- Gain: 1.6dBic
- Polarization: RHCP
- Cross-Polar Rejection: -10 to -20dB, (3.2%)
- Bandwidth: 5.6GHz-6.0GHz
- Radiation Efficiency: 98%
- SWR: <=1.2:1
- Dimensions(head): 16.5mm dia. x 10.7mm height.
- Length: 115mm or 160mm
- Connector: SMA
INCLUDES:
(1) TrueRC OCP Long FPV Antenna (5.8GHz / RHCP / SMA / Multiple Sizes)
