SKU: 0608597255645

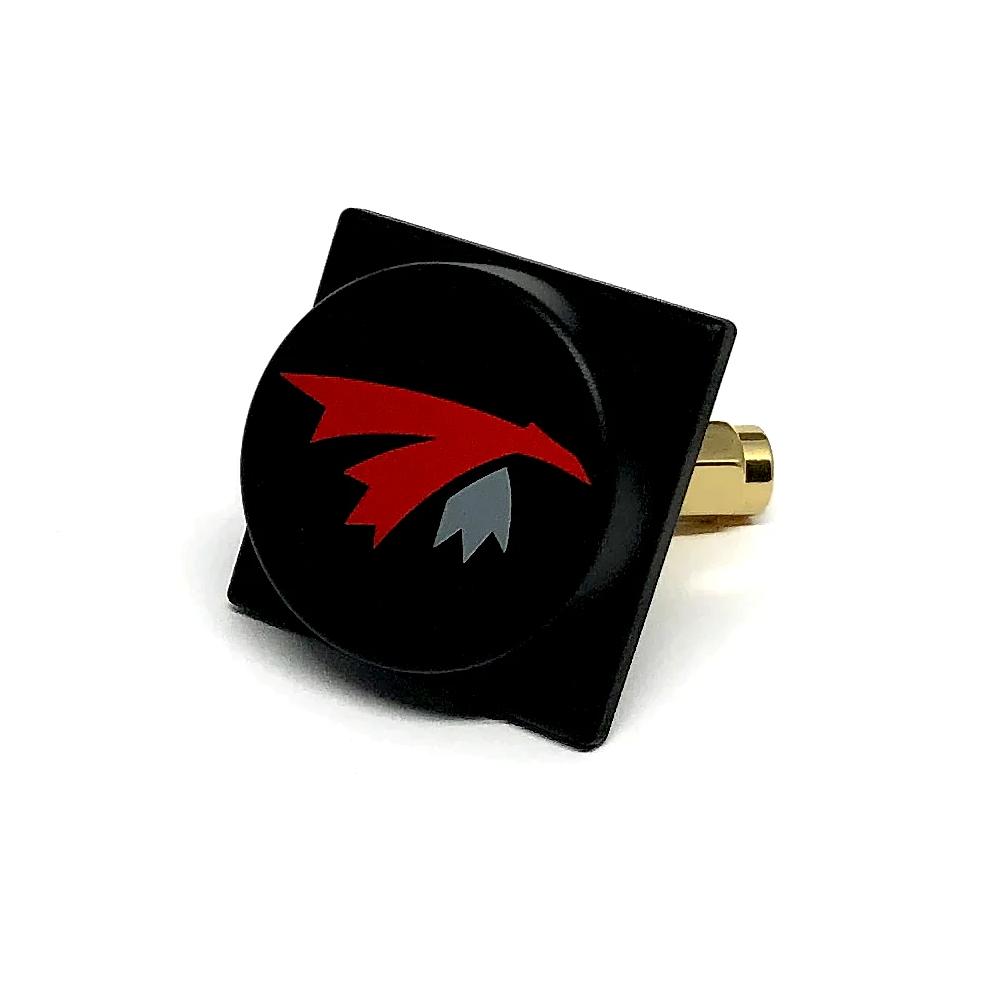

TrueRC X-Air MKII 5.8GHz Patch Antenna (RHCP / SMA)

$29.99

TrueRC X-Air MKII 5.8GHz Patch Antenna (RHCP / SMA)

The X-AIR 5.8 Mk. II is TrueRC's latest redesign of the X-AIR 5.8 antenna. Featuring aerospace grade PCB material and the latest computer aided engineering, there’s no compromise in beam width or gain and unlike ever before...size! Almost 1/4 of the footprint of the original, the same wide coverage and high axial ratio make it perfect for far off ventures without antenna aiming adjustments. Mount it right on any set of goggles with the low-loss 45-degree SMA extension included.



SPECIFICATIONS:

  • Bandwidth: 5.1GHz-6.7GHz
  • Gain: 9.5-10.5 dBic
  • Polarization: RHCP
  • Beam-width*: 120deg
  • Beam-width @-3dB**: 68°
  • Connector: SMA male
  • Dimension: 32 x 32 x 16mm

*Coverage where reception is at least equivalent to an omni-directional antenna.
**Coverage where at least 70% of the max range is obtained.



INCLUDES:

(1) TrueRC X-Air MKII Patch Antenna (5.8GHz / RHCP / SMA)
(1) 45° SMA Extension (Low-Loss)
