SKU: 60715222

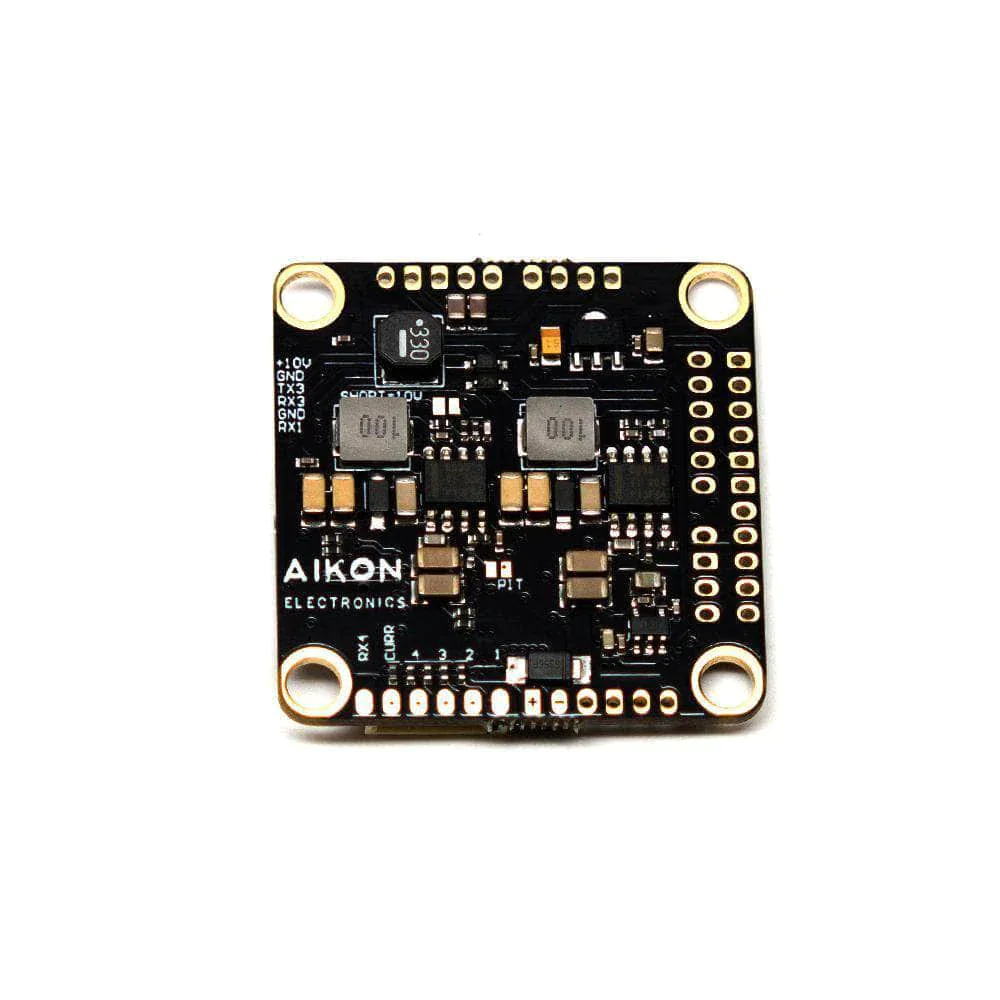

Aikon F7 HD V2 Flight Controller (30x30 / 5 UARTS / 2-6S)

$64.99

Aikon F7 HD V2 Flight Controller (30x30 / 5 UARTS / 2-6S)

Introducing the Aikon F7 HD V2 flight controller. This new flight controller is specifically designed to work with the Aikon 4-in-1 ESCs. Aikon packed all the greatest features into one seamless flight experience.



FEATURES:

  • 216mhz F7 processor
  • Onboard OSD and BlackBox
  • Software-controlled VTX power switch (assigned to USER1 mode by default)
  • LED and buzzer outputs (LED input doubles as PPM)
  • Quick connection cable for 4-in-1 ESCs
  • Quick connection cable for DJI HD system
  • On-board high overhead voltage regulators rated up to 6S (50v peak to handle voltage spikes)
  • USB Type C connector for easy programming



SPECIFICATIONS:

  • Input Voltage: 2-6S
  • MCU: STM32F722
  • IMU: MPU6000 (interrupt pin connected) or BMI270
  • Blackbox: SPI 16MB
  • UARTS: 5
  • BEC: 10V 1.5A
  • Mounting Pattern: 30.5 x 30.5mm
  • Firmware: Betaflight
  • Target: AIKONF7
  • Weight: 0.42oz (12g)



HELPFUL LINKS:



INCLUDES:

(1) Aikon F7 HD V2 Flight Controller (30x30 / 5 UARTS / 2-6S)
(5) M3 Grommets (Red)
(1) 10-Pin JST Housing
(1) 8-Pin JST Housing
(1) 6-Pin JST Housing
(1) 6-Pin to 8-Pin JST Cable
(1) 8-Pin JST Cable
(1) 8-Pin to 8-Pin JST Cable

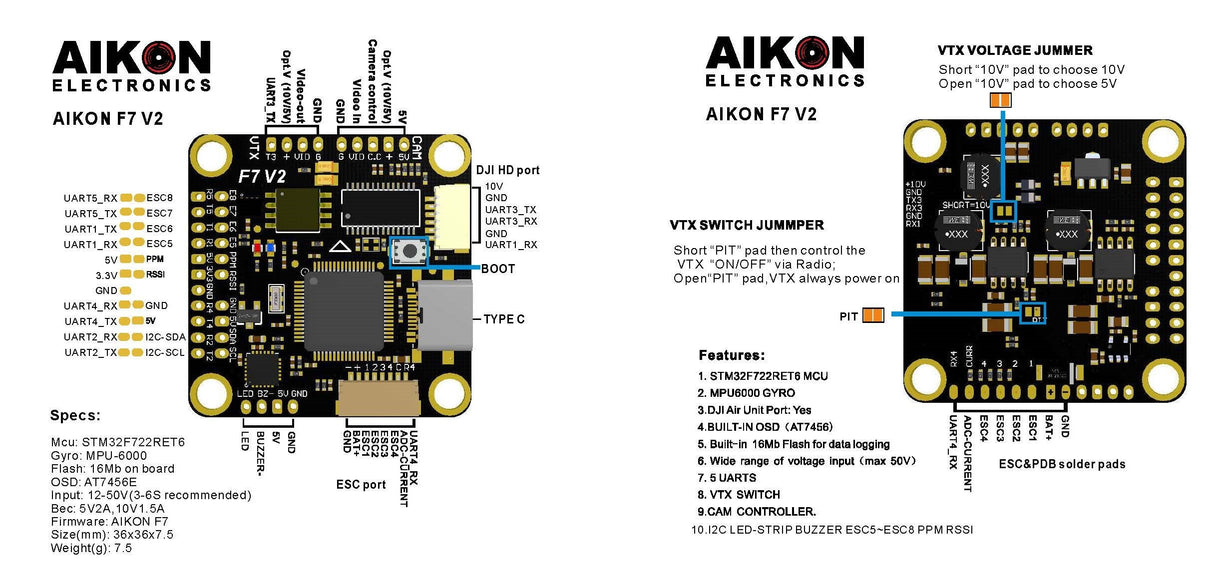

(1) Pin-Out Diagram
