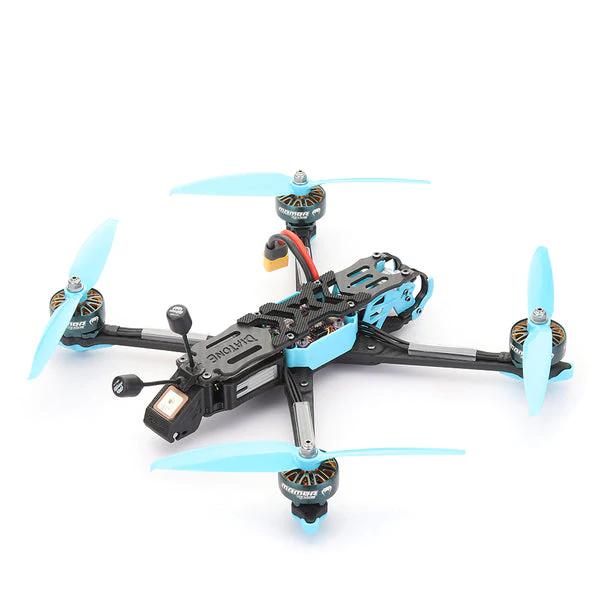

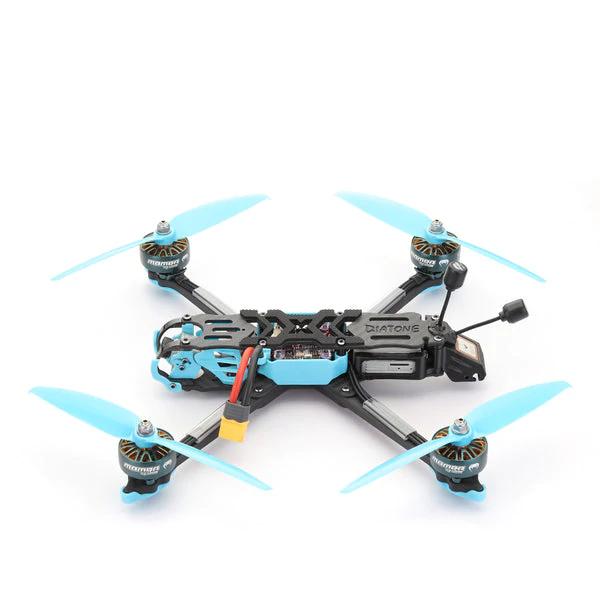

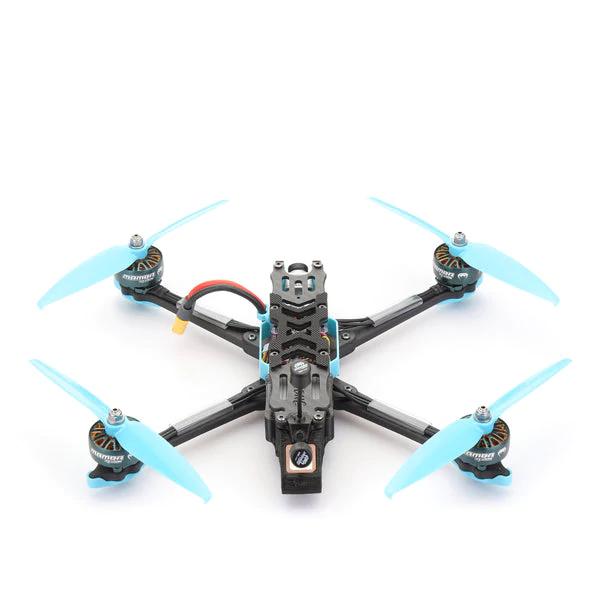

This 7" freestyle quadcopter is the newest addition to the Diatone Roma series. It comes fully assembled with everything you need to have an amazing flight experience. It comes equipped with the DJI Air Unit that can be paired with the DJI Goggles to give you the best video footage possible. It also comes ready to bind-and-fly with your DJI transmitter, or any other receiver of your choice (not included).
REQUIRED:
(1) 4-6S Li-Po Battery with XT60 Connector
(1) LiPo Charger
(1) Radio Transmitter (Remote Control)
(1) DJI FPV Goggles
SPECIFICATIONS:
Frame:
- Size: 7-Inch
- Wheelbase: 290mm
- Supports props up to 7 inches
- Battery Plug: XT60 Male
Flight Controller:
- Type: MAMBA DJI F722 MK2
- MCU: 216MHz STM32F722RET6
- GYRO: MPU Series Six-Axis
- Barometer: Yes
- OSD: Yes
- Blacbox: 16M Flash Memory
- Uarts: 6Set
- ESC Soft: Dshot300/600/1200
- ESC Telemetry: Yes
- Power Led: Yes
- LED Controller: BF LED/MB LED(4 Set 2812 LED)
- F.Port: Yes
- RSSI: Yes
- Buzz: Yes
- Input: 3~6S Li-Po (12.6~25.2V)
- TVS Protection: Yes
- BEC: 3.3V 0.5A & 5V 3A & (DJI) 9V 3A
- Mounting: 30x30 (M3)
ESC:
- Input Voltage: 3~6S LiPo (12.6V~25.2V)
- Continue Current: 50A×4
- Burst Current: 60A (10S)
- BEC: No
- Target: BLHeli_32 MAMBA F55_128K
- SOFT: Dshot300/600/1200
- TVS Protection: Yes
- Mounting: 30x30 (M3)
Camera & VTX:
- DJI Air Unit + DJI Camera
Motors:
- Type: Mamba Toka Brushless Motor
- Size: 2808
- KV: 1100KV
- No. of Cells(Lipo): (4S - 6S)
Propellers:
- Gemfan 7042 Propellers (Blue)
- Size: 7-Inch
- Pitch: 4.2
GPS:
- Type: Mamba M22
- Power Supply: 5V
- Output Frequency: 1Hz-10Hz, Default 1Hz
INCLUDES:
(1) Diatone Roma F7 HD 7" Brushless FPV Racing Drone
(4) Gemfan 7042 Propellers (2CW + 2CCW)
(4) Battery Straps
(1) 20mm PC Isolation Sheet
(1) 30mm PC Isolation Sheet
(2) Radio Receiver Antenna Tubes
(1) Hardware Kit
(1) Extra Injection Suit (Gray)
(1) Buzzer
(1) Battery Pad
(1) Air Unit Wire Pigtail
(2) Receiver Wiring Harnesses
(2) Misc Extra Wiring Harnesses
(1) Adjustable GoPro Mount
(1) USB to USB-C Cable
