DJI Integra HD FPV Goggles

These Integra HD FOV Goggles feature an integrated design, adopting two, 1080p Micro-OLED screens, with up to 100Hz refresh rate, and support ultra-low-latency video transmission, delivering a more immersive flight experience. Light and compact, the goggles weigh about 410 grams with foldable antennas and with a two-hour battery life, you can fly comfortably and worry-free for extended flights.

FEATURES:

• Lightweight and Portable
• DJI O3+ Video Transmission
• Also Works w/ Caddx Vista & Runcam Link Video Transmitters
• Micro-OLED Screens
• HD Low-Latency
• Battery built-into headband for lightweight and comfortable wear

SPECIFICATIONS:

Goggles:

• Model: RCDS13
• Weight: Approx. 410 g (battery included)
• Dimensions (L×W×H):
• With antennas folded: 170×104×75 mm
• With antennas unfolded: 205×104×104 mm
• Screen Size (single screen): 0.49-inch
• Resolution (single screen): 1920×1080
•  Refresh Rate: Up to 100 Hz
• IPD Range: 56-72 mm
• FOV (single screen): 44°
• Video Recording Format: MOV
• Operating Frequency: 2.4000-2.4835 GHz
• Supported Video Playback Formats: MP4, MOV (video formats: H.264, H.265; audio formats: AAC, PCM)
• Operating Temperature: -10° to 40° C (14° to 104° F)
• Power Input: Built-in battery
• Supported SD Cards: MicroSD (Up to 512GB)

Battery:

• Weight: Approx. 185 g (headband included)
• Dimensions (L×W×H): 120×51×71 mm
• Capacity: 2450 mAh
• Voltage: 5.6-8.4 V
• Type: Li-ion
• Chemical System: LiNiMnCoO2
• Energy: 17.64 Wh
• Charging Temperature: 5° to 45° C (41° to 113° F)
• Max Charging Power: 15 W (charging when powered off)
• Operating Time: Approx. 2 hours

HELPFUL LINKS:

• DJI Integra Goggles Manual

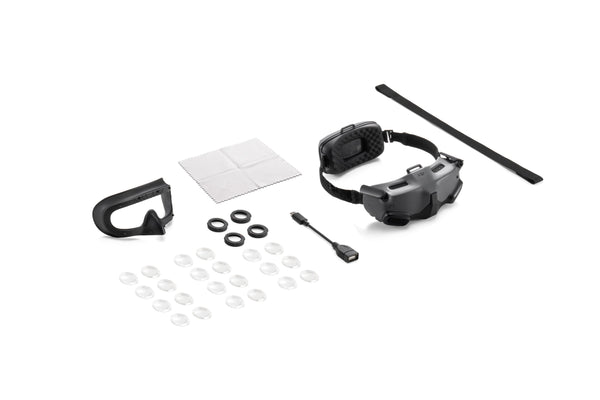

INCLUDES:

(1) DJI Integra FPV HD Goggles
(1) USB-C OTG Cable
(2) Pair of DJI Goggles Integra Eyeglass Frame
(11) Pairs of DJI Goggles Integra Corrective Lenses
(1) Lens Cleaning Cloth

NOTES:

• Before activating and updating your Goggles to the latest firmware using the DJI App. It is recommended to first bind your Goggles to an Air Unit or Vista/Link Kit.

• Avoid exposing the inside of the goggles to direct sunlight.
