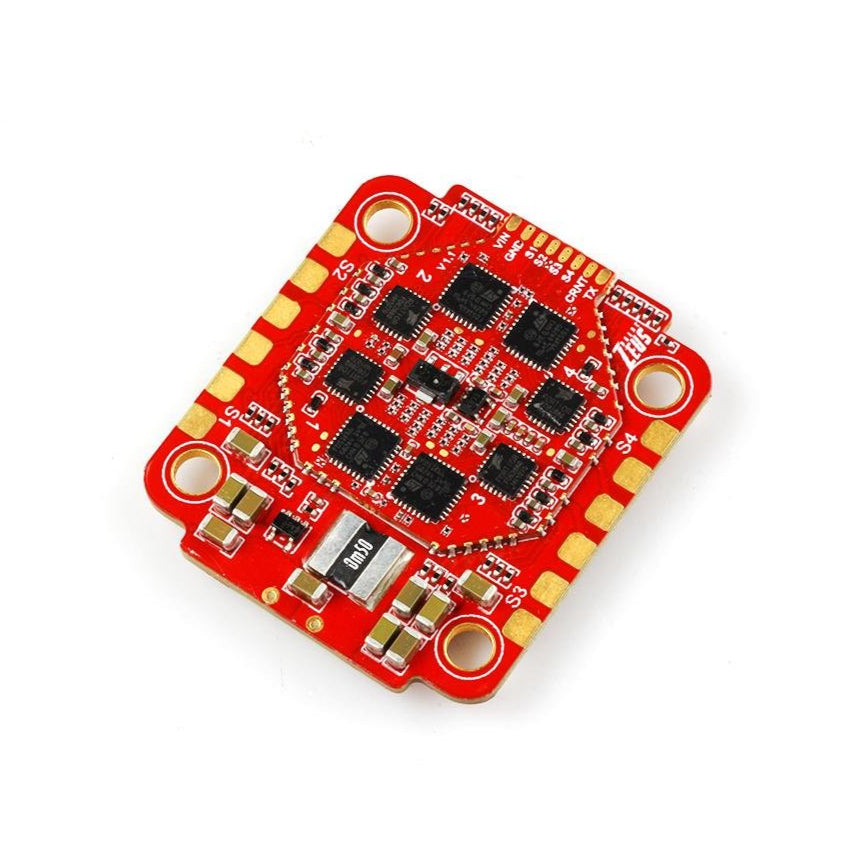

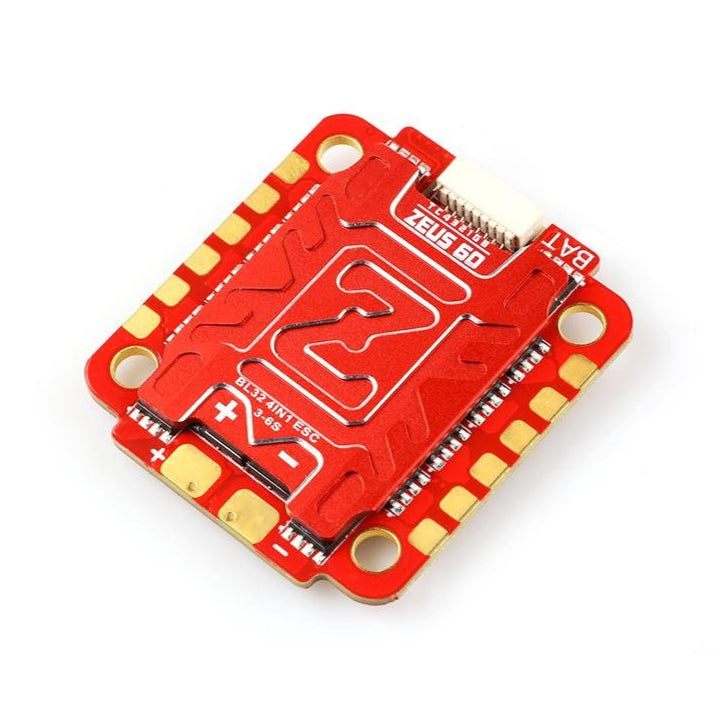

The HGLRC Zeus ESC is a 60A 4-In-1 ESC that has a 30x30 mounting pattern. Its shock-absorption structure can help reduce the impact of external vibration while in the air. It also comes equipped with an efficient heat radiation design that doubles the heat dissipation capacity of the ESC. Providing higher power and stability.
FEATURES:
- Brand New STM32F051 32-bit MCU, up to 48MHZ running frequency
- Immersion gold design with heat and current resistance
- CNC heat sink offers high thermal conductivity
SPECIFICATIONS:
- Input Voltage: 3-6S Lipo
- CPU: STM32F051
- Firmware: BLHELI32
- Steady Current: 60A
- Peak Current: 65A (10 Seconds)
- BEC: NO
- Supported Protocols: DSHOT1200/600/300/150
- Installing Hole: 30.5 x 30.5mm / M3
- Size: 45 x 40 x 6.5mm
- Weight: 18g
HELPFUL LINKS:

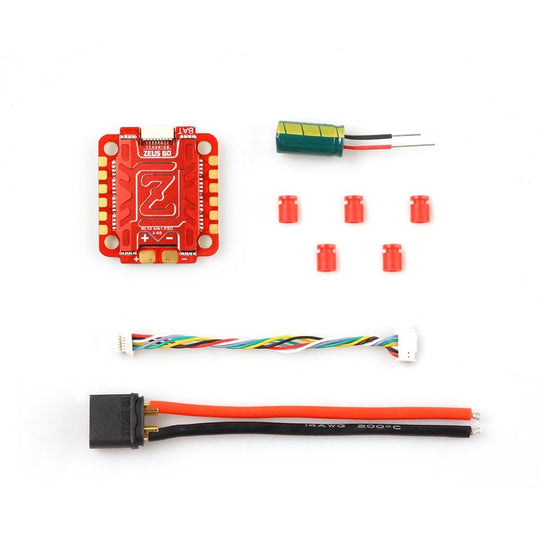

INCLUDES:
(1) HGLRC Zeus 60A ESC
(1) 35V 1000uf Capacitor
(1) XT60H Connector
(1) SH1.0 8PIN 60MM Cable
(5) M3 Grommets (Red)
(1) Set of Power Lead Wires (Positive & Negative)
